Description

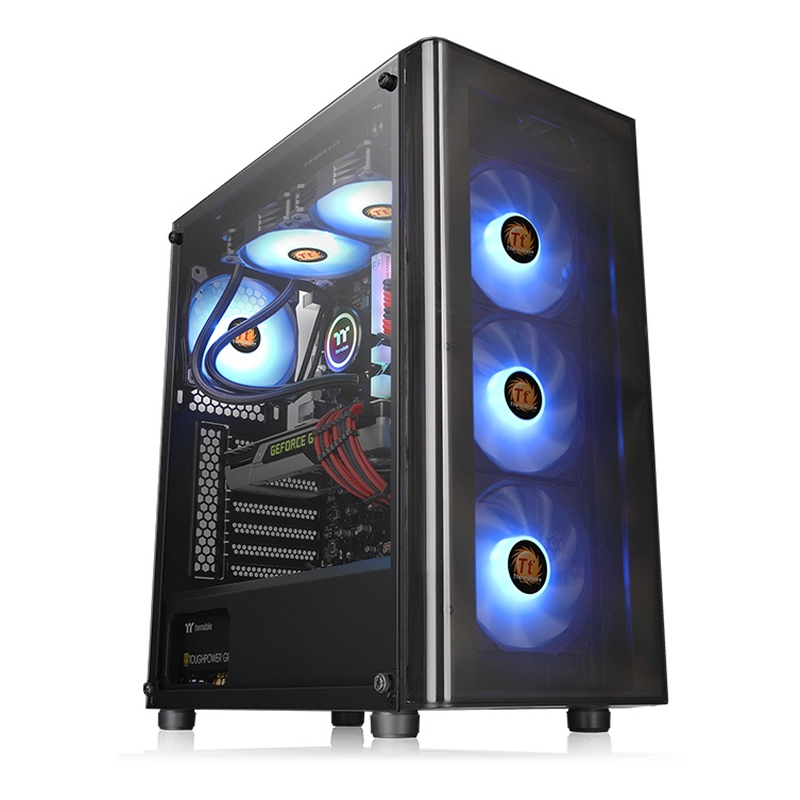

V200 Tempered Glass RGB Edition Mid Tower Chassis
The V200 Tempered Glass RGB Edition mid tower chassis is the perfect upgrade for someone looking to give their rig a facelift. It features a durable tempered glass window, clear acrylic front window and a handy PSU cover. This powerhouse little rig also comes fitted with three 120mm 12V RGB intake fans that are dual-mode controlled either via the I/O port RGB button or the synchronization with enthusiasts’ favorite RGB capable motherboard brands, including ASUS, GIGABYTE, MSI, ASRock, and BIOSTAR. The V200 TG RGB is one of our simple and sleek designed cases which is built for high-end hardware and custom system designs.
-
-
Three 120mm 12V RGB front fans and a standard 120mm rear fan are included.
-
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
Built-in 120mm 12V RGB Fans
The V200 TG RGB Edition is preinstalled with three 120mm 12V RGB fans at the front that can be controlled using a simple interface built into the I/O panel that cycles through three different lighting modes and a range of different color options.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, ASRock RGB LED, and BIOSTAR Vivid LED DJ, the included 12V RGB front fans allow you to control the lighting modes through your motherboard software. Visit the support page for motherboard information or to download the software.
Aura Addressable Header
Digital Pin Header
JRAINBOW Header
Addressable RGB LED Header
Addressable RGB LED Header
Built-in PSU Cover
The V200 TG RGB comes with a full length power supply cover that provides plenty of space to implement cable management, while keeping airflow clear for your hard drives and PSU.
Tempered Glass Panels
The 4mm tempered glass window on the side of the V200 TG RGB is built to be more durable, scratch resistant, and transparent for an advanced view of your hardware.
Dust Reduction
A handy magnetic fan filter on the top simply attaches for easy dust filtration and particulate protection. At the base of the chassis, additional fan filters provide excellent protection against both dirt and dust.
Oppurtunites For High-End Expansion
CPU Cooler
Max height 160mm
Motherboard
ATX, Micro ATX, Mini ITX
PSU
Max length
160mm(with HDD Rack)
200mm(without HDD Rack)
VGA
Length limitation 320mm
Handy I/O Ports
One 3.0 USB and two 2.0 USB ports on the top-front panel to grant direct access when needed.
Radiator Support List
| 120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
|---|---|---|---|---|---|---|
| Front | ● | ● | ● | ● | ● | – |
| Top | ● | ● | – | – | – | – |
| Rear | ● | – | – | – | – | – |
All-in-One Compatibility List
(Water 3.0 and Floe series)
| Performer | Pro | 120 Series | 240 Series | 140 Series | 280 Series | |
|---|---|---|---|---|---|---|
| Front | ● | ● | ● | ● | ● | ● |
| Top | ● | ● | ● | ● | – | – |
| Rear | ● | ● | ● | – | – | – |
Fan Support List
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Front | 3 | 2 | – |
| Top | 2 | 2 | – |
| Rear | 1 | – | – |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| PURE FAN Series | ● | ● | – |
| Riing FAN Series | ● | ● | – |
Specs
| P/N | CA-1K8-00M1WN-01 |
|---|---|
| SERIES | V Series |
| MODEL | V200 TG RGB
─────────────── |
| CASE TYPE | Middle tower |
| DIMENSION (H X W X D) | 446 x 204 x 439 mm (17.6 x 8.3 x 17.3 inch)─────────────── (2020 Version) 447 x 217 x 432 mm (17.6 x 8.54 x 17 inch) |
| NET WEIGHT | 7.1 kg / 15.65 lb
─────────────── |
| PANEL | 4mm Tempered Glass x 1 |
| COLOR | Exterior & Interior : Black |
| MATERIAL | SPCC |
| COOLING SYSTEM | Rear (exhaust): 120 x 120 x 25 mm fan (Fixed 1000rpm, 16dBA) Front (intake): 120 x 120 x 25 mm RGB fan (Fixed 1000rpm, 16dBA) x3 |
| DRIVE BAYS -ACCESSIBLE -HIDDEN |
|
| EXPANSION SLOTS | 7 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O PORT | USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1, R Button x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: 3 x 120mm, 2 x 140mm Top: 2 x 120mm, 2 x 140mm Rear: 1 x 120mm |
| RADIATOR SUPPORT | Front: 1 x 240mm, 1 x 280mm Rear: 1 x 120mm─────────────── (2020 Version) Front: 1 x 360mm, 1 x 280mm Top : 1 x 240mm, Rear: 1 x 120mm |
| CLEARANCE | CPU cooler height limitation: 160mmVGA length limitation: 380mmPSU length limitation: 170mm─────────────── (2020 Version) CPU cooler height limitation: 160mm VGA length limitation: 320mm PSU length limitation: 160mm (With HDD Rack) 200mm (Without HDD Rack) |
