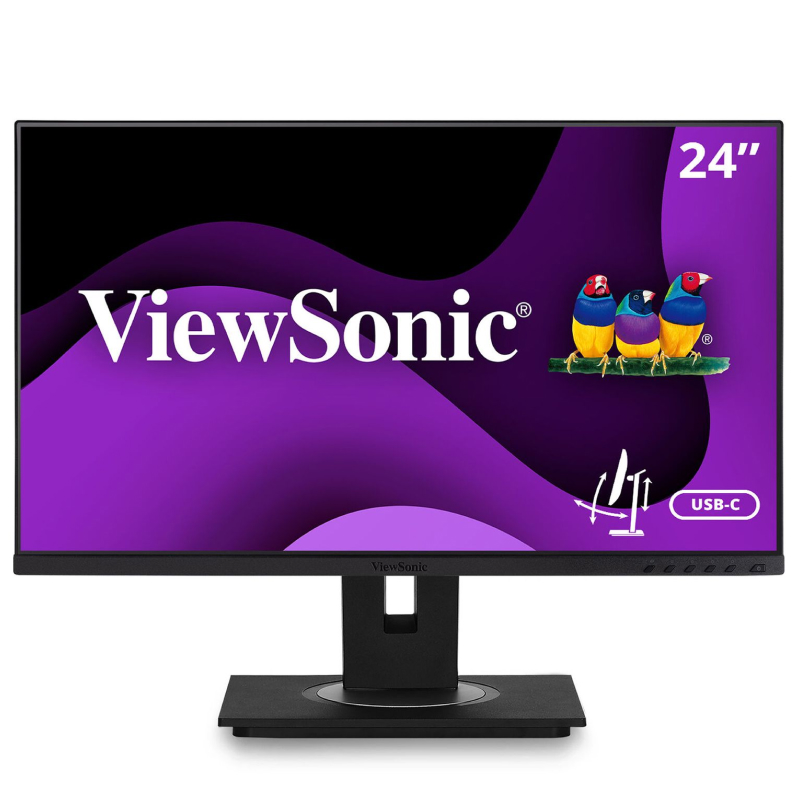

Viewsonic 24in Docking Monitor HDMI/DP/RJ45/USB-C VG2456


  • Docking monitor featuring USB Type-C and Ethernet
  • Daisy chain enabled
  • Flexible connectivity with HDMI, DP, DP out, USB Type-C, Ethernet, and USB 3.2
  • Ergonomic design including 40° tilt, 130mm height adjustment, swivel and pivot
  • Three-sided frameless bezel

Regular Stock. Please contact our sales at 780-481-8855 to get current availability. Holds limited to 24 hours maximum.

SKU: MR1VI1MRH050 Categories: ,



The ViewSonic VG2456 monitor is a 24” (23.8” viewable) 1080p IPS Docking monitor featuring USB Type-C and Ethernet. With the built-in USB Type-C port, you can charge and display content through a single cable from your device, enabling connection with your laptop via a single USB cable to keep the workstation tidy while using it as a docking monitor. Additionally, the Ethernet port can provide fast and stable network connection. The monitor is also equipped with DisplayPort, HDMI, and three USB Type-A ports to expand your efficiency. You can also daisy chain monitors from the Type-C or DP port. The three-sided frameless bezel design lets you enjoy an uninterrupted view of content across multiple monitors. An advanced ergonomic design offers the widest range of adjustments available for maximum comfort; including pivot, swivel, height adjustment, and an impressive 40° tilt, allowing you to use the monitor while standing or having strategic group discussions around the screen. Packaging is environmentally friendly and offers quick and easy out-of-the-box setup, making the VG2456 monitor perfect for business environments.


Big convenience with docking monitor

Expand your laptop functionality and plug all your devices directly into your docking monitor – the VG2456. Get a charge (that transmits power up to 60W), data, video, and audio with a single cable connected to the USB Type-C port. The built-in Ethernet port provides an extra fast and stable network option.

USB Type-C

Daisy chain enabled

Daisy chain connections allow for better cable management and productivity. For more flexible connectivity, users can daisy chain the VG2456 and other monitors from the Type-C (Type-C in, DP out) and DP port (DP in, DP out).

Daisy Chain

Connection Flexibility

HDMI, DP, DP out, Ethernet, USB Type-C and USB 3.2 inputs enable you to connect to an array of devices to the VG2456.

DP out
USB Type-C
USB 3.2 x 3 (1 upstream, 2 downstreams)

Immersive Audio

Designed with dual integrated speakers, the VG2456 accents its incredible screen performance with immersive stereo sound for a complete multimedia experience.

Dual Speakers

A New Angle on Workplace Ergonomics

Enjoy every detail with advanced ergonomics including pivot, swivel, and height adjustment to provide a greater range of customizable adjustment for maximum comfort. The VG2455 features a 40° ergonomic tilt angle, enabling you to use the monitor while standing or having strategic group discussions around the screen.

Pivot +/-90°
Swivel +/-60°
Tilt 40°~-5°
Height adjustment 0~130mm

Clarity from Any Angle

Indulge in accurate and vivid colors with consistent levels of brightness from any vantage point. With SuperClear® IPS panel technology, the monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

SuperClear IPS


Uninterrupted Viewing

The VG2456 is designed with a frameless bezel on three sides, giving the monitor a clean look and an uninterrupted view when used in a multi-monitor setup.

Three-sided frameless bezel

Versatile Stand Design

The VG2465’s versatile stand is client mount compatible, along with cable management design to keep your workspace neat and free of cable clutter. A carrying handle sits at the top of the stand for stability when relocating the monitor. *Client Mount Kit must be used to attach a mini PC. Client mount kit is sold separately.

Client mount compatible
Cable management
Carrying handle

4-step Assembly

The VG2456 utilizes a Quick Release stand design which lets you attach/detach the panel with the push of a button. The monitor can be assembled entirely by hand in four simple steps: 1. Open the box 2. Screw on the monitor base 3. Clip the stand onto the panel with the Quick Release stand 4. Set it up anywhere – it’s ready to go!

Clever Package Design for Fast Assembly
Quick Release Stand

Advanced Eye Care Technology

Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain caused by harmful light rays and periods of extended viewing.

Flicker Free
Blue Light Filter

vDisplay Manager

ViewSonic’s proprietary vDisplay Manager software is available for free and allows users to organize and divide their screen into multiple segments. The software also enables users to adjust their monitor settings via the software directly for a more efficient workflow.

Spilt screen
Monitor settings

Environmentally Friendly Packaging

Designed with the environment in mind, the packaging for the VG2456 is made with up to 80% recyclable and paper based materials instead of hazardous EPS (polystyrene). Additional plastic materials, such as handles, have been replaced with hand holes and the exterior of the package uses mono color printing.

Made with 80% Recyclable Materials Paper-based packaging

Low Energy Consumption

The VG2456 has been designed with energy efficiency in mind. With certification from Energy Star 8.0 and EPEAT registry, the VG2456’s Eco Mode consumes less power, resulting in a smaller carbon footprint and reduced office overhead costs.

Energy Star 8.0

VESA Compatible

Mount the monitor exactly to your liking by utilizing the monitor’s 100 x 100 mm VESA compatible design.

100 x 100mm

  1. Menu control Panel
  2. VESA Compatible
    (Wall Mount 100x100mm)
  3. USB Down Stream X 2
  4. AC In
  5. HDMI
  6. DP IN
  7. LAN
  8. USB Up Stream
  9. DP OUT
  10. USB Type-C



General Information
Manufacturer: ViewSonic Corporation
Manufacturer Part Number: VG2456
Brand Name: ViewSonic
Product Line: Graphic
Product Series: VG
Product Model: VG2456
Product Name: VG2456 Widescreen LCD Monitor
Product Type: LCD Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 24.00″ (609.60 mm)
Viewable Screen Size: 23.8″
Screen Mode: Full HD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 15 ms GTG (OD)
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type: Desk Mountable, Wall Mountable
Backlight Technology: LED
Swivel Angle: 120°
Features: Anti-glare, 3H Surface Hardness
Horizontal Frequency: 15 kHz to 82 kHz
Vertical Frequency: 24 Hz to 75 Hz
Stand Adjustments: Height, Pivot, Swivel, Tilt
Adjustable Stand Height: Yes
Glass Hardness: 3H
Maximum Resolution: 1920 x 1080
Standard Refresh Rate: 75 Hz
Color Supported: 16.7 Million Colors
Color Depth: 6-bit
Native Contrast Ratio: 1,000:1
Dynamic Contrast Ratio: 50,000,000:1
Brightness: 250 cd/m²
Number of Speakers: 2.0
Speakers: Yes
Speaker Output Power: 2 W
Network (RJ-45): Yes
USB: Yes
DisplayPort: Yes
USB Type-C: Yes
Number of HDMI Inputs: 1
Total Number of HDMI Ports: 1
Number of USB Ports: 4
Number of USB Type-C 3.2 Gen 1 Ports: 1
Number of USB Type-B Ports: 1
Number of DisplayPorts: 1
Total Number of USB Type-C Ports: 1
Power Description
Operating Power Consumption: 17.40 W
Standby Power Consumption: 300 mW
Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color: Black
Height: 12.60″ (320 mm)
Width: 21.22″ (539 mm)
Depth: 2.05″ (52 mm)
Height with Stand: 15.99″ (406.20 mm)
Width with Stand: 21.22″ (539 mm)
Depth with Stand: 7.95″ (202 mm)
Weight (Approximate): 4 kg
Weight with Stand (Approximate): 6.40 kg
Package Contents: VG2456 Display, Power Cable, DP to DP Cable, USB Type C Cable, USB 3.2 Uplink Cable, Quick Start Guide
Certifications & Standards: cTUVus, FCC-B, ICES003, Energy Star Certified, EPEAT Certified, MX-CoC, Mexico Energy
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification: EPEAT, CEC
