Description

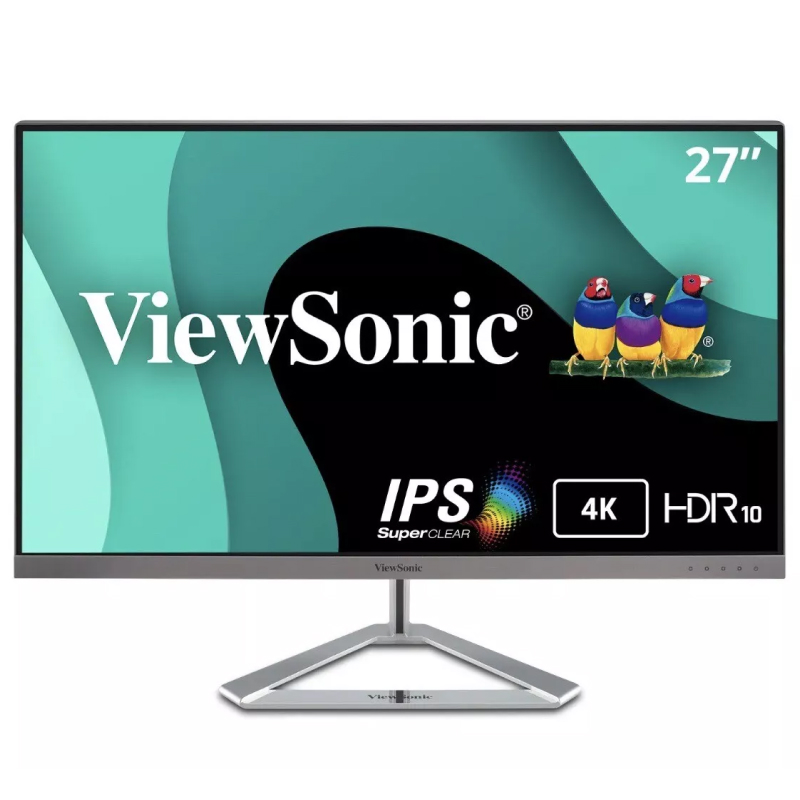

The ViewSonic VX2776-4K-mhd 27″ 16:9 HDR IPS Monitor is built with an In-Plane Switching (IPS) panel that offers users vivid colors and wide 178° viewing angles. Its 3840 x 2160 4K resolution ensures crisp, clear details while HDR10 support offers an enhanced viewing experience. Rounding out the specs, it has a 1300:1 static contrast ratio, a 350 cd/m² brightness rating, and support for up to 1.07 billion colors. Connect this monitor to your system via HDMI or DisplayPort and tilt its stand to best fit your viewing preference. Otherwise, you can install an optional VESA stand, mount, or arm if needed.
HDR10 Content Support
Optimized View Settings
Enhanced Viewing Comfort
DISPLAY
DISPLAY SIZE (IN.)
27
VIEWABLE AREA (IN.)
27
PANEL TYPE
IPS
RESOLUTION
3840 x 2160
RESOLUTION TYPE
4K (3840×2160)
STATIC CONTRAST RATIO
1,300:1
DYNAMIC CONTRAST RATIO
80,000,000:1
LIGHT SOURCE
WLED
BRIGHTNESS
350 cd/m2
COLORS
1.07B
COLOR SPACE SUPPORT
8-bit+Hi-FRC
ASPECT RATIO
16:9
RESPONSE TIME (TYPICAL GTG)
14ms
RESPONSE TIME (GTG W/OD)
4ms
VIEWING ANGLES
178º horizontal, 178º vertical
BACKLIGHT LIFE (HOURS)
30,000
PANEL SURFACE
Anti-glare, Hard coating (3H)
COMPATIBILITY
PC RESOLUTION (MAX)
3840 x 2160
CONNECTOR
3.5MM AUDIO OUT
1
HDMI 2.0 IN
2
DISPLAY PORT
1
AUDIO
INTERNAL SPEAKERS
2.5W (x2)
POWER
ECO MODE (CONSERVE)
34W
ECO MODE (OPTIMIZED)
39W
CONSUMPTION (TYPICAL)
44W
CONSUMPTION (MAX)
48W
VOLTAGE
AC 100-240V (universal), 50-60Hz
STAND-BY
0.5W
ADDITIONAL HARDWARE
KENSINGTON LOCK SLOT
1
CONTROLS
PHYSICAL CONTROLS
1,2,3,4,Power
ON SCREEN DISPLAY
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)
OPERATING CONDITIONS
TEMPERATURE
32-104º F (0 – 40º C)
HUMIDITY (NON-CONDENSING)
20-90%
MOUNT
VESA COMPATIBLE
100 x 100 mm
VIDEO SIGNAL
FREQUENCY HORIZONTAL
15 ~ 160 KHz
FREQUENCY VERTICAL
40 ~ 75 Hz
VIDEO INPUT
DIGITAL SYNC
TMDS for HDMI (v2.0), PCI-E for DisplayPort (v1.2)
ERGONOMICS
TILT (FORWARD/BACK)
3º / 20º
WEIGHT (IMPERIAL)
NET (LBS)
12.3
NET WITHOUT STAND (LBS)
11.0
GROSS (LBS)
15.4
WEIGHT (METRIC)
NET (KG)
5.6
NET WITHOUT STAND (KG)
5.0
GROSS (KG)
7.0
DIMENSIONS (IMPERIAL) (WXHXD)
PACKAGING (IN.)
27.4 x 18.2 x 5.2
PHYSICAL (IN.)
24.3 x 17.8 x 7.2
PHYSICAL WITHOUT STAND (IN.)
24.3 x 14.4 x 1.8
DIMENSIONS (METRIC) (WXHXD)
PACKAGING (MM)
697.0 x 462.0 x 132.0
PHYSICAL (MM)
616.0 x 451.0 x 184.0
PHYSICAL WITHOUT STAND (MM)
616.0 x 366.0 x 46.0
GENERAL
REGULATIONS
MX-CoC, Mexico Energy, CE, CE EMC, CB, Energy Star compliant
PACKAGE CONTENTS
VX2776-4K, Power Cable, HDMI Cable, Quick Start Guide
RECYCLE/DISPOSAL
Please dispose of in accordance with local, state or federal laws.
WARRANTY
Three-year limited warranty on parts, labor and backlight
DIMENSIONS
24.3 x 17.8 x 7.2 in / 616.0 x 451.0 x 184.0 mm
