Description

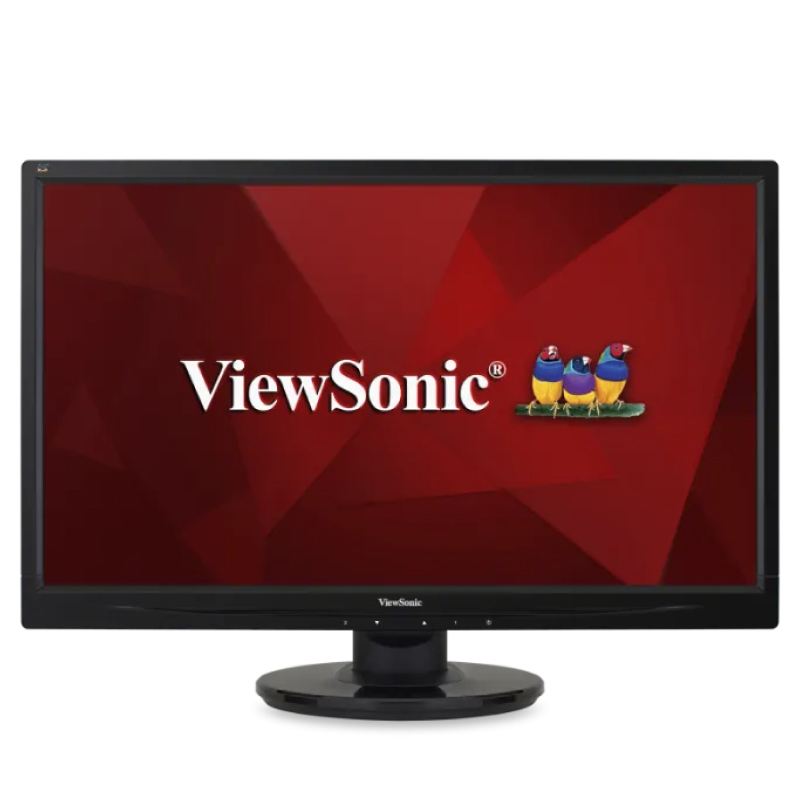

VA2246mh-LED – 22″ Display, TN Panel, 1920 x 1080 Resolution
FULL HD 1080P RESOLUTION
This monitor features Full HD 1920×1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience the most amazing clarity and detail whether it be while working, gaming, or enjoying the latest in multimedia entertainment.
ENHANCED VIEWING COMFORT
Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods.
THE POWER OF HDMI ®
HDMI is a future-proof video standard that delivers true digital picture and audio clarity. The HDMI interface on this monitor allows you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptop PCs, digital cameras, and many others for the ultimate true high-definition experience.
DUAL INTEGRATED SPEAKERS
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.
VESA-COMPATIBLE MOUNT
Mount the monitor as you see fit using its convenient VESA-compatible mount design.
3-YEAR LIMITED WARRANTY
Have peace of mind in the quality and reliability of your ViewSonic monitor—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.
DISPLAY
DISPLAY SIZE (IN.)
22
VIEWABLE AREA (IN.)
21.5
PANEL TYPE
TN
RESOLUTION
1920 x 1080
STATIC CONTRAST RATIO
1,000:1
DYNAMIC CONTRAST RATIO
50,000,000:1
LIGHT SOURCE
LED
BRIGHTNESS
250 cd/m2
COLORS
16.7M
COLOR SPACE SUPPORT
(6-Bit+HI-FRC)
ASPECT RATIO
16:9
RESPONSE TIME (TYPICAL GTG)
5ms
VIEWING ANGLES
170º horizontal, 160º vertical
BACKLIGHT LIFE (HOURS)
40,000
PANEL SURFACE
Anti-glare, Hard coating (3H)
COMPATIBILITY
PC RESOLUTION (MAX)
1920 x 1080
MAC® RESOLUTION (MAX)
1920 x 1080
CONNECTOR
3.5MM AUDIO IN
1
3.5MM AUDIO OUT
1
VGA
1
HDMI 1.4 IN
1
AUDIO
INTERNAL SPEAKERS
2.5W (x2)
POWER
ECO MODE (CONSERVE)
12W
ECO MODE (OPTIMIZED)
16W
CONSUMPTION (TYPICAL)
22W
CONSUMPTION (MAX)
26W
VOLTAGE
AC 100-240V (universal), 50-60Hz
STAND-BY
0.5W
ADDITIONAL HARDWARE
KENSINGTON LOCK SLOT
1
CONTROLS
PHYSICAL CONTROLS
1, 2, 3, 4, Power
ON SCREEN DISPLAY
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Advanced Image Adjust, Setup Menu, Memory Recall (See user guide for complete OSD functionality)
OPERATING CONDITIONS
TEMPERATURE
32-104º F (0 – 40º C)
HUMIDITY (NON-CONDENSING)
20-90%
MOUNT
VESA COMPATIBLE
100 x 100 mm
VIDEO SIGNAL
FREQUENCY HORIZONTAL
24 ~ 82KHz
FREQUENCY VERTICAL
50 ~ 75Hz
VIDEO INPUT
ANALOG SYNC
Separate Sync
DIGITAL SYNC
TMDS
ERGONOMICS
TILT (FORWARD/BACK)
5° / 23°
WEIGHT (IMPERIAL)
NET (LBS)
7.7
NET WITHOUT STAND (LBS)
6.9
GROSS (LBS)
10.3
WEIGHT (METRIC)
NET (KG)
3.5
NET WITHOUT STAND (KG)
3.1
GROSS (KG)
4.7
DIMENSIONS (IMPERIAL) (WXHXD)
PACKAGING (IN.)
22.2 x 15.4 x 4.5
PHYSICAL (IN.)
20.1 x 14.4 x 7.8
PHYSICAL WITHOUT STAND (IN.)
20.1 x 12.5 x 1.9
DIMENSIONS (METRIC) (WXHXD)
PACKAGING (MM)
565 x 391 x 114
PHYSICAL (MM)
509.6 x 366.1 x 197.6
PHYSICAL WITHOUT STAND (MM)
509.6 x 316.6 x 48.3
GENERAL
REGULATIONS
cULus, FCC-B, ICES003, Energy Star 7.0, EPEAT Certified, UL-MX-CoC, Mexico Energy, CE EMC, CB, WEEE, RoHS, REACH SVHC List, ErP, EAC, UkrSEPRO
PACKAGE CONTENTS
LCD Display, Power Cable , VGA Cable , Audio Cable , Quick Start Guide
RECYCLE/DISPOSAL
Please dispose of in accordance with local, state or federal laws.
WARRANTY
Three-year limited warranty on parts, labor and backlight
DIMENSIONS
20.06 x 14.41 x 7.78 in / 509.56 x 366.13 x 197.59 mm
- Menu Controls
- VESA Compatible Wall Mount 100 x 100 mm
- Internal Speaker
- Kensington® Lock Slot
- AC In
- Audio Out
- Audio In
- VGA
- HDMI
