Description

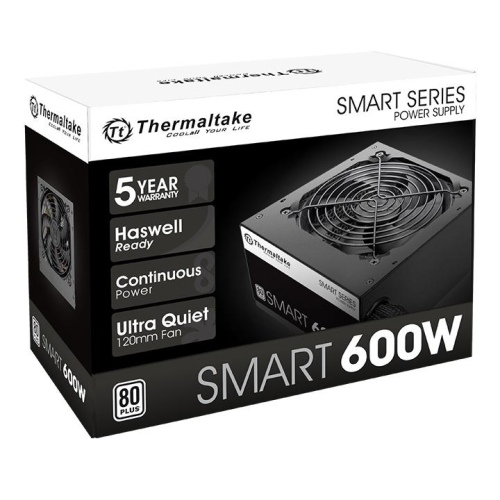

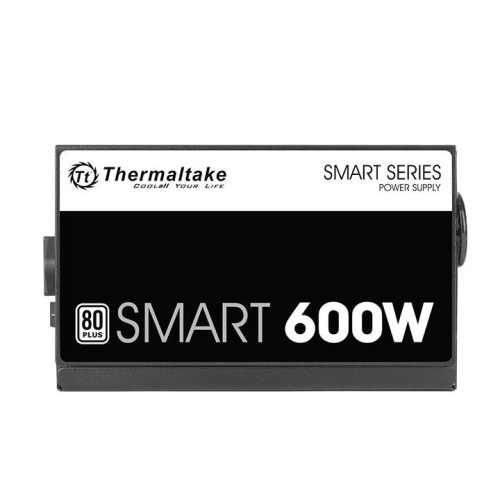

Thermaltake Smart 600W
Incorporating various high-quality components, the Smart Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.
120mm Ultra Quiet Fan
Smart Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
Multiple Connectors
Smart 600W connector’s specification as below:
80 PLUS Standard Certified and Haswell Ready
Smart Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® Standard Certified.
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
Single +12V Output
Smart Series is equipped with a powerful +12V rail, superior performance under all types of system loading. Please see the output specification below:
| AC INPUT |
Input Voltage: 100V-240V |
||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 22A | 17A | 42A | 0.5A | 2.5A |
| Max Output Power | 105W | 504W | 6.0W | 12.5W | |
| Continuous Power | 600W | ||||
Specs
| WATTS | 600W |
|---|---|
| RGB FAN | No |
| FORM FACTOR | ATX |
| TYPE | Intel ATX 12V 2.3 |
| COLOR | Black |
| OPERATING TEMPERATURE | 5℃ to +40℃ |
| COOLING SYSTEM | 120mm Fan: 1800 R.P.M. ± 10% |
| EFFICIENCY | 82-86% efficiency @ 20-100% load |
| MTBF | 100,000 hrs minimum |
