Description

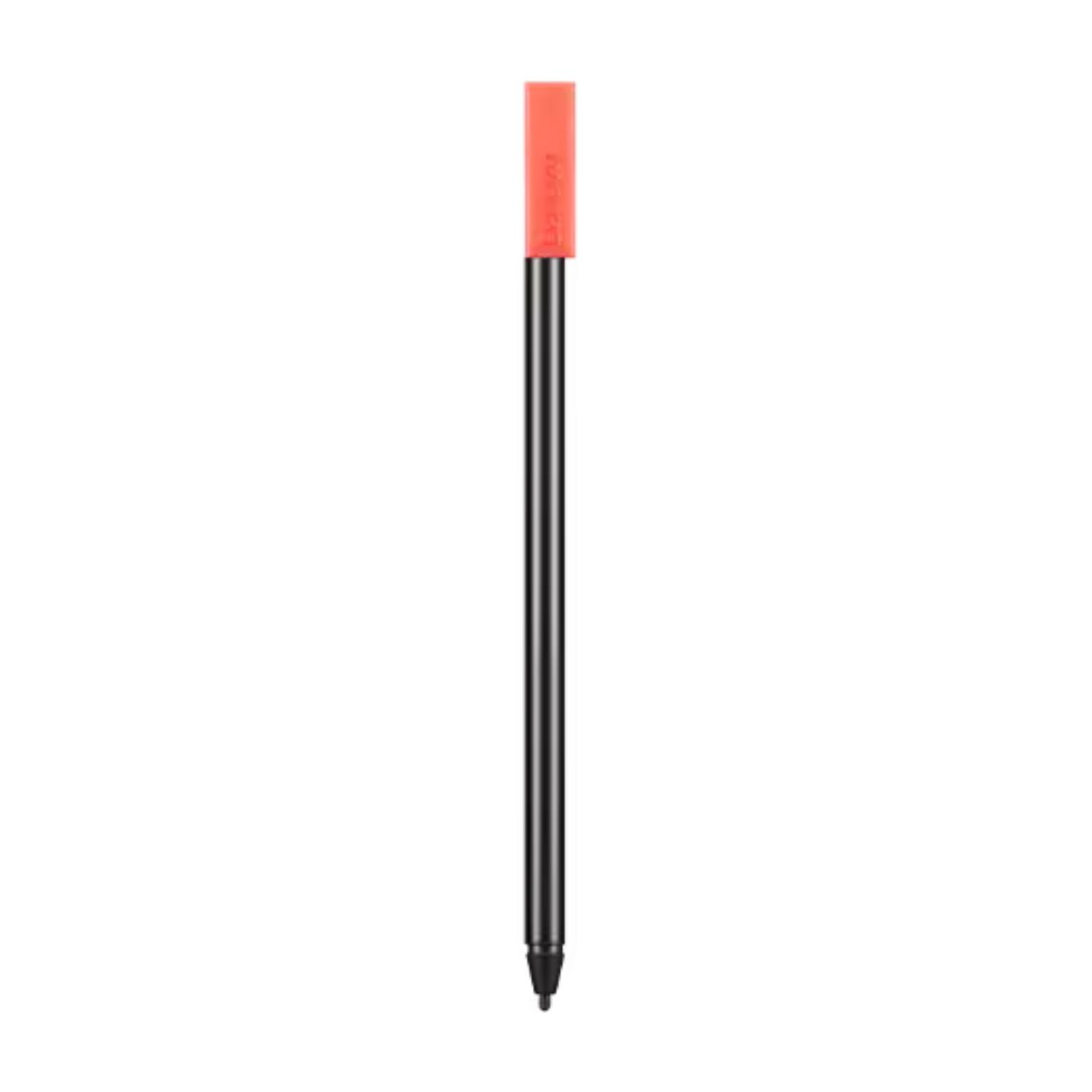

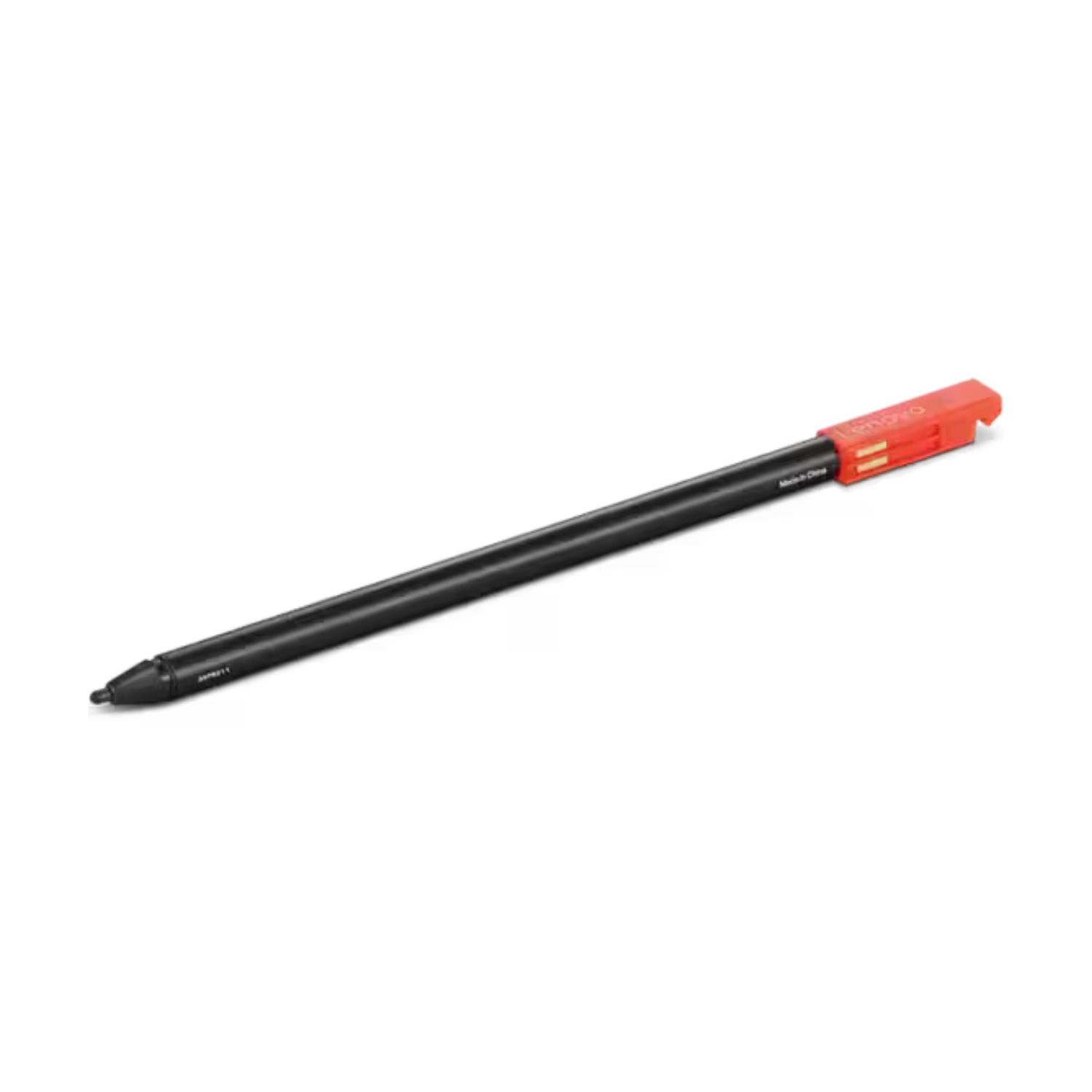

Lenovo Integrated Pen for 300e/500e Yoga Chromebook Gen 4 is an ideal input solution giving users 4096 levels of pressure for precise content creation. This pen is unique to Lenovo 300e/500e Yoga Chromebook Gen 4 and it can be stored in the Chromebook pen slot made specifically for it. While being stored, the pen will be recharged and allow users to enjoy up to 45 minutes (active use) of battery life of a single full charge.
General Specifications
| Brand | Lenovo |
| Color | Black |
| Weight | 4.1 ± 0.2 g (0.14 oz) |
| Length | 125.31 ± 0.3 mm (4.93 inches) |
| Diameter | Ø5.5 mm |
Performance Features
| Pressure Resolution | Up to 4096 levels (depends on touch IC’s FW setting) |
| Oscillating Frequency | 100~500KHz |
| Sleep Timer | 70s without movement |
| OS Requirements | Chrome OS |
Battery & Power
| Power Source | 1.5V EDLC Battery |
| Battery Life | More than 45 minutes continuous use |
| Charging Type | Pogo pin, Fast charging |
| Charging Time | 15s charging for over 90% capacity |
| Input Voltage | 5V ± 5% |
Environmental Conditions
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 0% to 90% |
Package Information
| Package Dimensions | 219 x 73 x 43mm (8.62 x 2.87 x 1.69 inches) |
| Package Weight | 60g (2.12 oz) |
| Package Type | Brown Box |
| Included Accessories | Lenovo Integrated Pen, Warranty poster, Lenovo Pen poster |
Warranty & Certifications
| Warranty | 1 Year – Customer Replaceable Unit (CRU) |
| Certifications | CB/IC/FCC/CE/VCCI/KC/NOM South Africa-SANS,SABS |
