Description

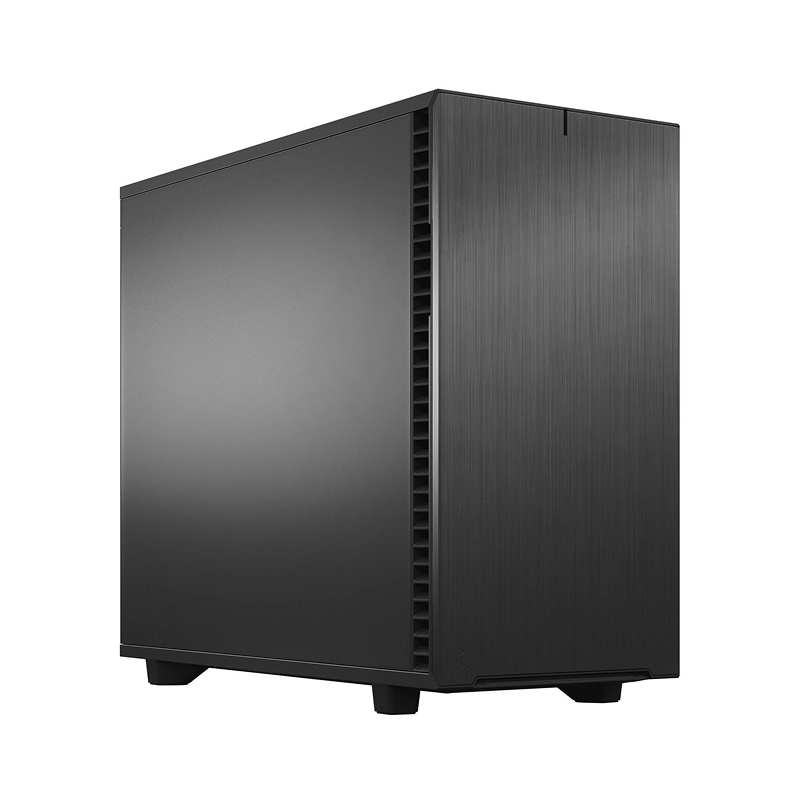

Introducing the new Define 7 XL series
Re-defining capacity
Plenty of room for massive builds
- Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
- Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
- Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering
- Ventilated PSU shroud with two-part removable cover
- Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans
Superlative storage possibilities
- Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 Multibrackets included)
- Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board
- Sturdy new HDD cage design with vibration damped trays
- 13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size

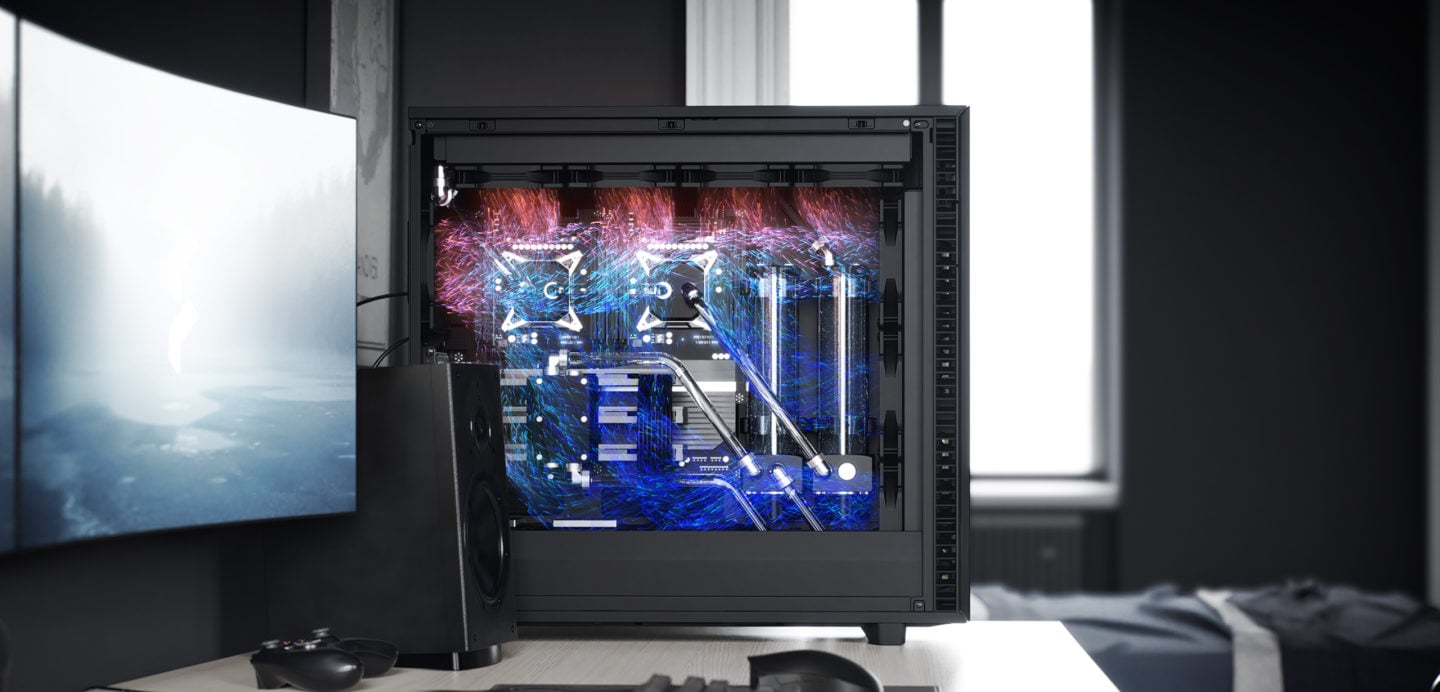

Airflow and cooling
- Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
- Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
- The two 5.25″ ODD bays can be converted to an additional front fan mount with filtered louver covering
-
Exceptionally silent
Silence-optimized construction with industrial sound-damped front, top, and side panels
USB Type-C
USB 3.2 Gen 2×2 Type-C with speeds up to 20 Gbps
SSI-EEB
Easily holds your SSI-EEB motherboard
Moduvent
Top panel effortlessly swaps from sound damped solid steel to filtered ventilation
Specifications
Specifications |
3.5″/2.5″ Universal drive brackets 6 + 2 included, 18 positions total |
Dedicated 2.5″ drive brackets 2 included, 5 positions total |
| 5.25” drive mounts 2 |
Expansion slots 9 + 3 |
|
| Front ports 1 x USB 3.2 Gen 2×2 Type-C (20 Gbps), 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button |
Total fan mounts 11 x 120 mm or 9 x 140 mm |
|
| Front fan 4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included) |
Top fan 4 x 120 mm or 3 x 140 mm |
|
| Rear fan 1 x 120/140 mm, (1 x Dynamic X2 GP-14 included) |
Bottom fan 2 x 120/140 mm |
|
| Dust filters Top, 2 x Front, Bottom + PSU |
Fixed velcro straps Yes |
|
| Cable routing grommets Yes |
Captive thumbscrews HDD brackets, SSD brackets, PSU bracket |
|
| Left side panel Industrial sound-damped steel or Tempered Glass |
Right side panel Industrial sound-damped steel |
|
Compatibility |
Motherboard compatibility E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB |
Power supply type ATX |
| PSU max length 250 mm (both HDD cages installed) |
GPU max length Storage layout: 340 mm – Open layout: 530 mm (505 mm w/ front fan) |
|
| CPU cooler max height 185 mm |
Front radiator Up to 480/420 mm |
|
| Top radiator Up to 480/420 mm |
Rear radiator 120 mm |
|
| Bottom radiator Up to 240/280 mm |
Cable routing space 30 mm |
|
| Vertical GPU Support (with Flex B-20 or Flex VRC-25) 65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling |
||
Dimensions |
Case dimensions (LxWxH) 604 x 240 x 566 mm |
Case dimensions w/o feet/protrusions/screws 590 x 240 x 548 mm |
| Package dimensions (LxWxH) 646 x 357 x 708 mm |
Net weight Solid Version: 16.53 kg, TG Version: 16.64 kg |
|
| Package weight Solid Version: 18.73 kg, TG Version: 18.84 kg |
Volume 77.6 liters |
|
Other |
Warranty 2 Years |
Package contents Define 7 XL – Accessory box – User manual – Ventilated top panel – ODD bracket – ODD bay cover – 2 x HDD/SSD trays |
| EAN Solid: 7340172702047, TG Dark Tint: 7340172702061, TG Light Tint: 7340172702054 |
UPC Solid: 843276102043 TG Dark Tint: 843276102067, TG Light Tint: 843276102050 |
|
| JAN Solid: 4537694274296 TG Dark Tint: 4537694275385, TG Light Tint: 4537694274302 |
Product code Solid: FD-C-DEF7X-01, TG Dark Tint: FD-C-DEF7X-03, TG Light Tint: FD-C-DEF7X-02 |
