Description
Fast. Compact. Convenient.

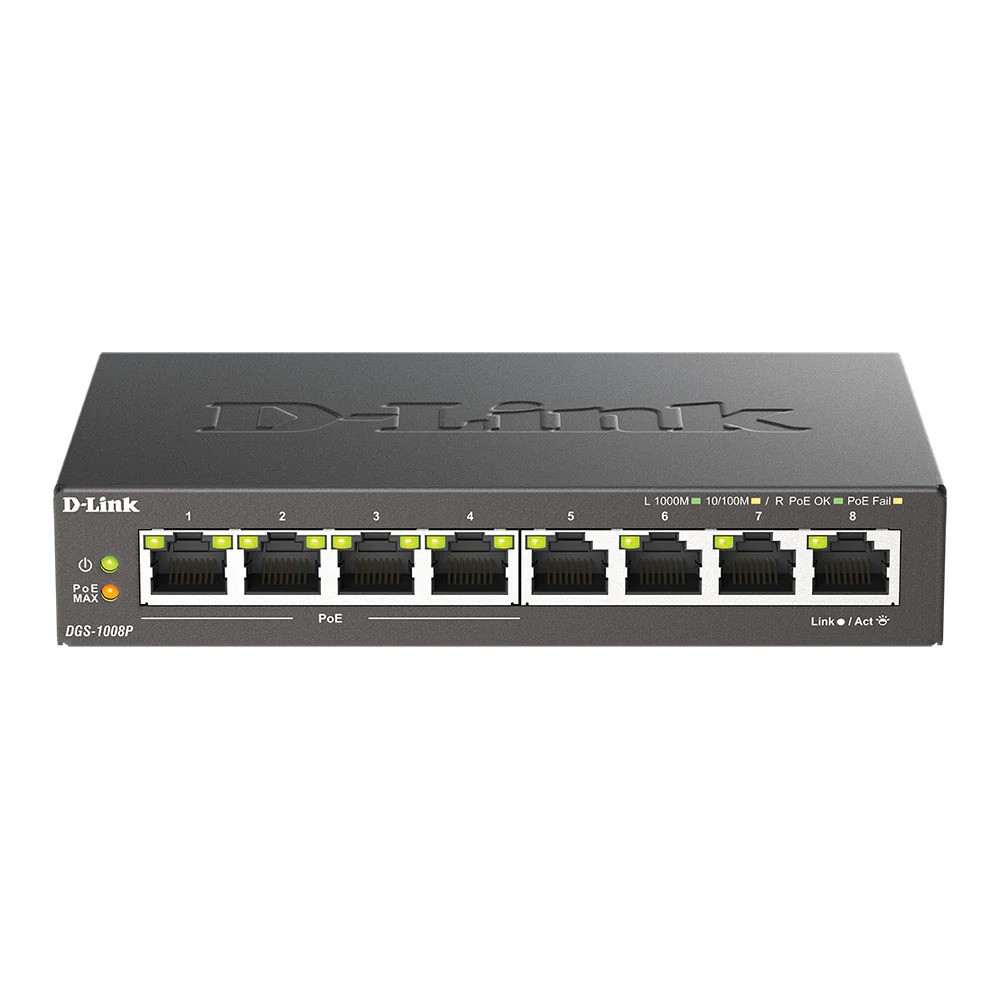

The D‑Link DGS‑1008P 8‑Port Desktop Gigabit PoE+ Switch enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs), network video cameras and IP phones to the network. Built with home and small business users in mind, the DGS‑1008P is compact and operates silently, making it ideal for most rooms and offices.
Gigabit Performance
The DGS-1008P features eight ports for up to 2000 Mbps full-duplex bandwidth per port and a total switching fabric of 16 Mbps. Automatic MDI/MDI-X support on all ports removes the need for crossover cables when connecting to another switch, and auto-negotiation on each port intelligently adjusts the port speed for compatibility with the connected device.
Bring the Power with PoE+ Power over Ethernet
The switch features four Gigabit Ethernet ports that support the IEEE 802.3af PoE and IEEE 802.3at PoE+ standards, supplying up to 30 W on each PoE port with a total power budget of 60 W. The DGS-1008P can provide power and data using only an Ethernet cable, allowing for deployment of compatible devices in locations without immediate access to power outlets.
Green Technology
The DGS-1008P features power-saving technology such as IEEE 802.3az Energy-Efficient Ethernet (EEE), link status detection, and cable length detection. This switch can automatically adjust power consumption based on network utilization, reducing energy use during periods of inactivity and can also shut off or adjust power to individual ports depending on their link status and the length of the cable connected.
Compact and Silent
The DGS-1008P features a compact design which allows for placement in locations where space is at a premium, and is also wall mountable. The desktop form factor provides everything you need to set up a new network or expand an existing network, while the fanless design ensures silent operation even in noise-sensitive areas such as workstations and meeting rooms.
| General | ||
| Hardware Version | D1 | |
| Interface | 8 x 10/100/1000BASE-T ports | |
| Standards | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3az Energy Efficient Ethernet (EEE) ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x Flow Control |
|
| Media Interface Exchange | Auto-MDI/MDI-X adjustment on all ports | |
| Performance | ||
| Switching Fabric | 16 Gbps | |
| Transmission Method | Store-and-forward | |
| Data Transfer Rates | Gigabit Ethernet
Fast Ethernet
Ethernet
|
|
| Packet Filtering / Forwarding Rates | 11.90 Mpps | |
| MAC Address Table | 4K entries per device | |
| Jumbo Frame Size | 9,720 bytes | |
| RAM Buffer | 512 Kb | |
| PoE | ||
| PoE Standards | IEEEE 802.3af IEEEE 802.3at |
|
| PoE-Capable Ports | Ports 1 to 4 | |
| PoE Power Budget | 68 W (30 W max per PoE port) | |
| FILL | FILL | |
| Physical | ||
| Weight | 0.59 kg | |
| Dimensions | 190 mm x 120 mm x 38 mm | |
| DC Input | External 54 V / 1.67 A power adapter | |
| Power consumption | 80.2 W maximum (PoE on) 0.26 W maximum (PoE off) |
|
| Heat Dissipation | 41.602 BTU/hr | |
| Temperature | Operating: 0 to 40 ˚C (32 to 104 ˚F) Storage: -40 to 70 ˚C (-40 to 158 ˚F) |
|
| Humidity | Operating: 0% to 95% RH non-condensing | |
| MTBF | 631,894 hours | |
| Safety | cUL BSMI LVD |
|
| EMI/EMC | CE Class B BSMI FCC Class B VCCI Class B RCM KCC |
|
