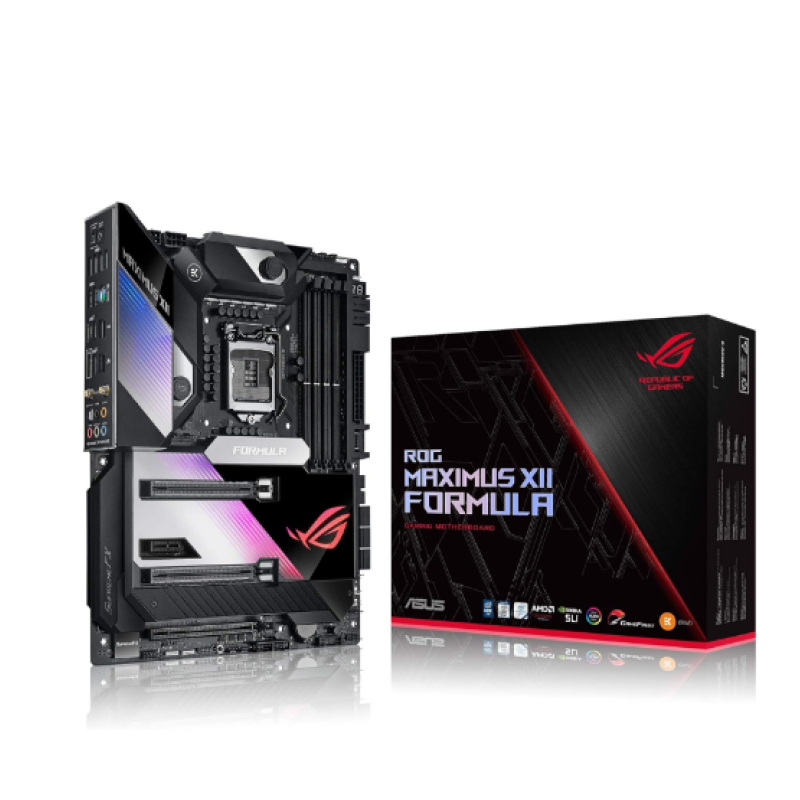

Asus ROG MAXIMUS XII FORMULA LGA1200 Z490 ATX

$634.95

  • Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors
  • Enhanced power solution: 10+1 DrMOS power stages, 6-layer PCB, ProCool connector, alloy chokes and durable capacitors for stable power delivery
  • Comprehensive cooling: VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Ultrafast connectivity: Dual M.2, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A ® and Thunderbolt™ 3 support

Regular Stock. Please contact our sales at 780-481-8855 to get current availability. Holds limited to 24 hours maximum.

SKU: MB1AS1MBM006 Category:

Description

Maximus XII Formula

ROG Maximus XII series motherboards are designed to explore the upper echelons of gaming and overclocking. The Formula is plumbed for custom liquid cooling and includes other enhancements to punctuate premium systems. The CrossChill EK III VRM block, co-developed with EK Water Blocks, help cope with higher VRM loads associated with Intel Comet Lake CPUs. Aesthetically, Maximus XII Formula has a stealthy black finish with intricate patterns cut into its reflective armor. The latest-generation Formula is all set to make your showcase rig shine.

Intelligent Motherboard

Our ROG engineers developed and extensively-tested intelligent software solutions to ensure your system stays in optimal condition.

  • AI Overclocking

    Tuning is now faster and smarter than ever before. AI Overclocking profiles the CPU and cooling to predict the optimal configuration for each system.

  • AI Cooling

    AI Cooling automatically manages and controls motherboard-connected fans, ensuring the most efficient settings depending on the current system load and temperature.

  • AI Networking

    GameFirst VI optimizes and organizes network bandwidth, effectively reducing jitter and eliminating spike lag to ensure smooth online gameplay.

PERFORMANCE

The Intel Comet Lake processor features 10 cores and a peak single-core Turbo speed that exceeds 5.3 GHz right out of the box. To cope with this increased demand on the system, Maximus XII Formula takes advantage of its intelligent VRM design and uses quality components to ensure the best gaming and daily productive computing experience.

Teamed Power Architecture

Today’s CPU architectures place incredible demands on motherboard power design by transitioning from deep power saving modes , going from lower-power mode to full load in an instant. Our latest VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.

ASUS OptiMem III

Boasting proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, ASUS OptiMem III is more compatible with 3600 MHz+ memory kits, allowing them to run at higher frequencies. You can opt to optimize memory for high frequency settings, or low latency settings. With higher capacity memory kits, OptiMem III enables you to run at maximum frequency, whereas other motherboards will trade off frequency for capacity. Stack Maximus XII Formula with your favorite modules and maximize throughput of the new 10th Generation Intel® Core™ Comet Lake-S processor for applications that demand massive bandwidth.

COOLING

The focus on maximizing performance would be futile without similar dedication to improving the cooling that allows systems to sustain faster speeds. The CrossChill EK III VRM block enables Maximus XII Formula to cope with the high VRM loads of ten core CPUs. The hybrid cooling system sits atop of a heatpipe that’s directly linked to the extended VRM heatsink, giving it cooling capabilities that surpass the requirements of this current generation.

OPTIMIZATION

Maximus XII Formula is packed with intuitive and flexible tools to allow customization across all system parameters to deliver the performance you want.

CONNECTIVITY

Maximus XII Formula is well equipped to deliver supersmooth wireless connectivity and compatibility with multiple input sources and PCIe extensions, all of which are a must-have for gaming setups.

PERSONALIZED FOR YOU

In addition to extraordinary performance, Maximus XII Formula provides extensive styling and customization options to let you build a system that truly stands apart.

TECHNICAL SPECIFICATIONS

CPU

  • Intel® Socket LGA 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® processors*
  • Supports Intel® 14 nm CPU
  • Supports Intel ® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list
  • **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

  • Intel® Z490 Chipset

Memory

  • 4 x DIMM, Max. 128GB, DDR4 4700+(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/
  • 3333(O.C.)/ 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem III
  • * 10th Gen Intel® Core™ i9/i7 CPUs support 2933/2800/2666/2400/2133 natively. Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Expansion Slots

  • Intel® 10th Gen Processors
  • 2 x PCIe 3.0 x16 slots (support x16 or x8/x8 modes)
  • Intel® Z490 Chipset
  • 1 x PCIe 3.0 x16 slot (supports x4 mode)*
  • 1 x PCIe 3.0 x1 slot**
  • * The PCIEX16_3 shares bandwidth wih M.2_3. When M.2_3 runs x4 mode, PCIEX16_3 will be disabled. When M.2_3 and PCIEX16_3 are both occupied, M.2_3 runs x2 mode, PCIEX16_3 runs X1 mode.
  • ** The PCIEX1 shares bandwidth with M.2_1. When M.2_1 runs x4 mode, PCIEX1 will be disabled.
  • *** Support PCIe bifurcation for RAID on CPU function.

Multi-GPU Support

  • Supports NVIDIA 2-Way SLI® Technology
  • Supports AMD 3-Way CrossFireX™ Technology

Storage

  • Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
  • Intel® Z490 Chipset
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)**
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)***
  • 6 x SATA 6Gb/s ports**
  • Intel® Rapid Storage Technology supports Raid 0,1,5,10
  • Intel® Optane™ Memory Ready
  • * M.2_1 shares bandwidth with PCIEX1. When PCIEX1 is occuppied, M.2_1 runs x2 or SATA mode (when M.2_1 runs SATA mode, SATA6G_2 will be disabled).
  • ** M.2_2 shares bandwidth with SATA6G_56. When M.2_2 runs x4 mode, SATA_56 will be disabled. M.2_2 runs x2 mode by default.
  • *** M.2_3 shares bandwidth with PCIEX16_3. When PCIEX16_3 runs x4 mode, M.2_3 will be disabled. When M.2_3 and PCIEX16_3 are both occoppied, M.2_3 runs x2 mode, PCIEX16_3 runs X1 mode

Ethernet

  • 1 x Intel® I225-V 2.5Gb Ethernet
  • 1 x Marvell® AQtion AQC107 10Gb Ethernet
  • ASUS LANGuard

Wireless and Bluetooth

  • “Intel® Wi-Fi 6 AX201
  • 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
  • Supports up to 2.4Gbps max data rate
  • Support 2.4/5GHz Dual-Band
  • Supports channel bandwidth: HT20/HT40/HT80/HT160
  • Supports CNVI interface
  • Bluetooth v5.1*
  • *BT 5.1 function will be ready in Windows 10 build 19041 later.”

USB

  • Rear USB (Total 10 ports)
  • 4 x USB 3.2 Gen 2 port(s) (3 x Type-A + 1 x USB Type-C®)
  • 6 x USB 3.2 Gen 1 ports(s) (6 x Type-A)
  • Front USB (Total 9 ports)
  • 1 x USB 3.2 Gen 2 front panel connector (suppports USB Type-C®)
  • 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

  • ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
  • – Impedance sense for front and rear headphone outputs
  • – Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  • – Supports up to 32-Bit/192kHz playback*
  • Audio Features:
  • – SupremeFX Shielding Technology
  • – ESSTM ES9023 DAC + RC4580 OP AMP
  • – Gold-plated audio jacks
  • – Rear optical S/PDIF out port
  • – Premium Japanese audio capacitors
  • – Audio cover
  • * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

Back Panel IO

  • 1 x ASUS Wi-Fi Module
  • 1 x BIOS FlashBackTM button
  • 1 x Clear CMOS button
  • 5 x Gold-plated audio jacks
  • 1 x Intel® I225-V 2.5Gb Ethernet
  • 1 x Marvell® AQtion AQC107 10Gb Ethernet
  • 1 x Optical S/PDIF out port
  • 1 x PS/2 keyboard/mouse combo port
  • 6 x USB 3.2 Gen 1 port(s) (6 x Type-A)
  • 4 x USB 3.2 Gen 2 port(s) (3 x Type-A + 1 x USB Type-C®)

Internal I/O

  • Fan and cooling-related
  • 1 x 4-Pin CPU fan header
  • 1 x 4-Pin CPU OPT fan header
  • 1 x 4-Pin AIO Pump header
  • 3 x 4-Pin Chassis fan headers
  • 1 x 4-Pin H_AMP fan header
  • 1 x W_PUMP+ header
  • 1 x 2-pin Water In header
  • 1 x 2-pin Water Out header
  • 1 x 3-pin Water Flow header
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
  • Storage related
  • 3 x M.2 slots (Key M)
  • 6 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 2 front panel connector (suppports USB Type-C®)
  • 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Miscellaneous
  • 2 x AURA addressable Gen 2 headers
  • 2 x AURA RGB headers
  • 1 x FlexKey button
  • 1 x Front panel audio header (AAFP)
  • 1 x ReTry button
  • 1 x Speaker header
  • 1 x Start button
  • 1 x 10-1 pin System Panel header
  • 1 x Thermal sensor header
  • 1 x Thunderbolt header

Accessories

  • Cables
  • 1 x Addressable RGB extension cable
  • 1 x RGB extension cable
  • 2 x ROG weave SATA 6G cables
  • 4 x SATA 6Gb/s cables
  • Miscellaneous
  • 2 x M.2 Rubber package(s)
  • 2 x M.2 SSD screw package(s)
  • 1 x Q-connector
  • 1 x ROG logo plate sticker
  • 1 x ROG stickers
  • 1 x ROG thank you card
  • 1 x ASUS 2 x 2 dual band Wi-Fi moving antennas
  • Installation Media
  • 1 x Support DVD
  • Documentation
  • 1 x User manual

Form Factor

  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
