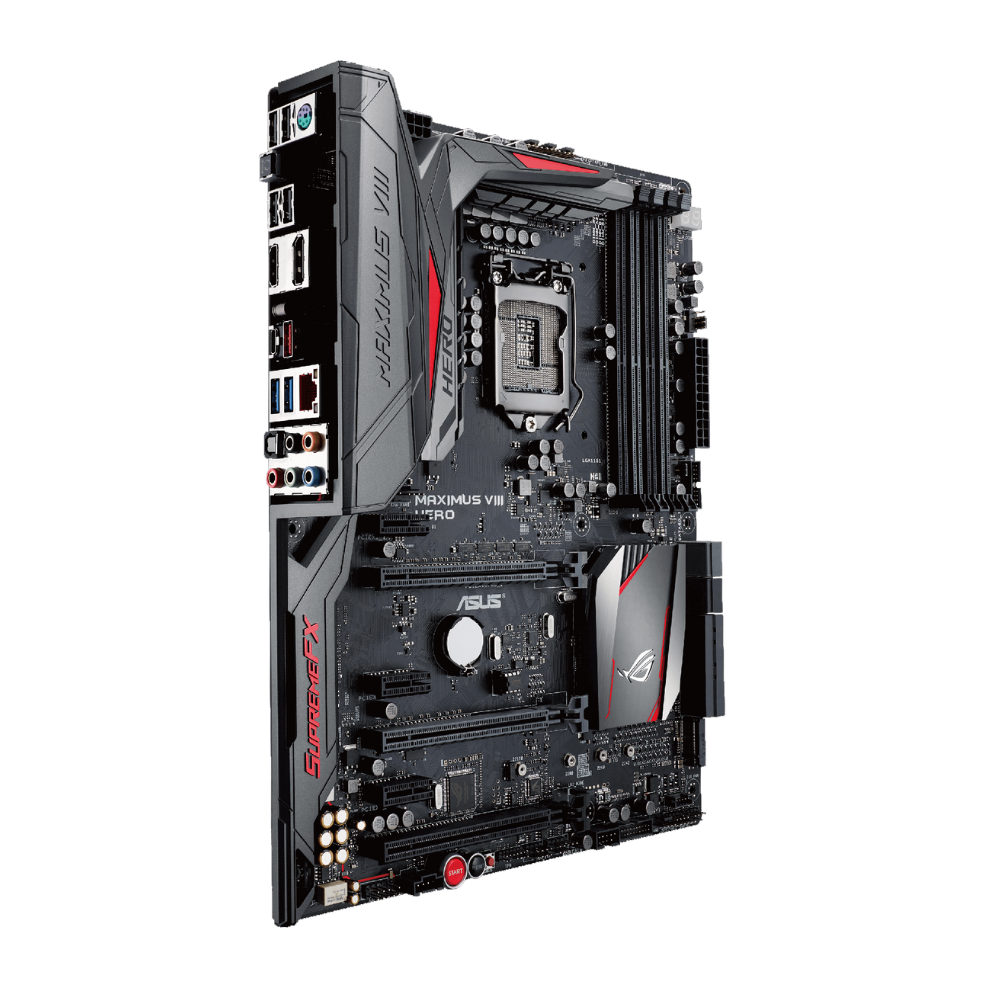

Description
SupremeFX 2015
Champion-level audio

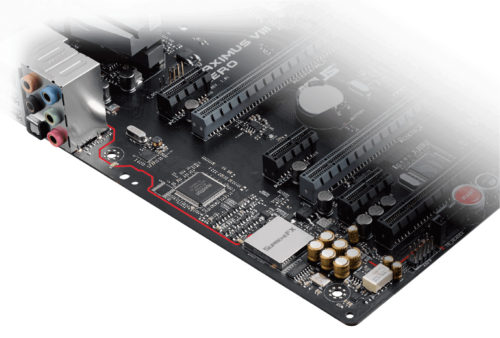

ROG provides you with the very best gaming-audio inputs and outputs, with special shielded designs, and a collection of carefully selected professional-grade audio components, including an ESS ES9023P digital-to-analog converter (DAC) with Hyperstream™ technology, ultra-low-jitter clock, Nichicon capacitors, 2Vrms headphone amp, and Sonic SenseAmp that automatically detects and optimizes any headset (32-600 ohms) for purest sound quality. SupremeFX 2015 also features intuitive Sonic Studio II for you to apply and enjoy different audio effects for perfect entertainment, plus Perfect Noise noise-cancellation technology for team conversations with total clarity.
One click overclock and cooling, done!

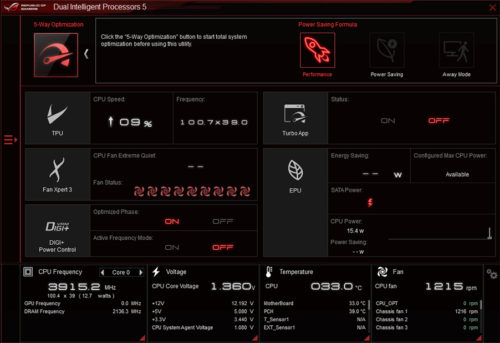

5-Way Optimization at your disposal it takes just one click to tune complex settings — for instant, highly-controllable performance boosts! Our exclusive technology dynamically optimizes essential aspects of your system based on real-time use, so you get superb CPU performance, everyday energy savings, ultra-stable digital power, cool and quiet fans, and even networking and audio settings that are tailored for the apps that you are using. In short, 5-Way Optimization ensures that your PC is perfect for gaming, entertainment, productivity or just about anything else!
- Games run swiftly and smoothly with high performance, prioritized bandwidth and vivid sound
- Fans stay whisper-quiet for everyday computing, and ensure extreme cooling efficiency when gaming
- Stutter is eliminated for smooth-running apps, even under heavy loading
- Energy waste is reduced so you’ll save money
Cooler by design
Fan Xpert 3

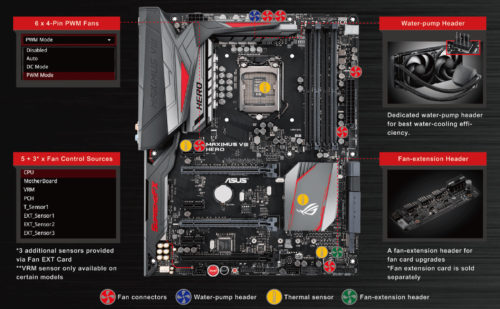

Advanced fan and water-pump controls for ultimate cooling and quietness with onboard thermal sensors and hardware-level 4-pin PWM/3-pin DC mode detection, Fan Xpert 3 makes sure every fan achieves the best balance of cooling performance and low noise!
OC Design-ASUS PRO Clock technology

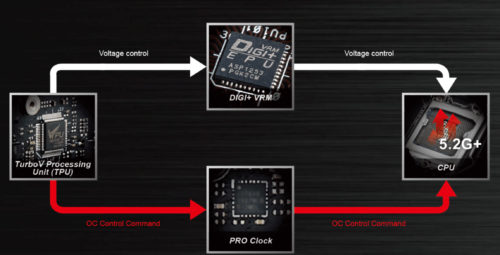

A dedicated base-clock (BCLK) generator designed for 6th-generation Intel® processors that allows overclocked base clock frequencies up to 400MHz*. This custom solution works in tandem with the ASUS Turbo Processor Unit (TPU), to enhance voltage and base-clock overclocking control — granting an exciting new way to boost performance to extreme heights.
Advantages of PRO Clock:
- Less boot up time
- Lower jitter under extreme conditions.
- More stable under heavy overclocking.
* PRO Clock range up to 650 MHz is available, BCLK overclocking range may vary according to CPU capabilities
DDR4 OVERCLOCKING STRENGTH IN NUMBERS

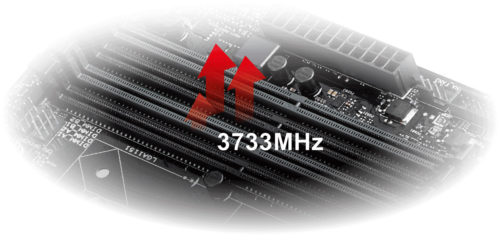

ASUS 2nd generation T-Topology allows DDR4 memory overclocking to reach new heights: over DDR4-3733 MHz with all memory slots populated. Featuring a customized trace layout for reduced crosstalk and coupling noise, ASUS 2nd generation T-Topology ensures time-aligned signal transfer for improved memory stability and compatibility.
Extreme Engine Digi+
The finest power, digitally controlled

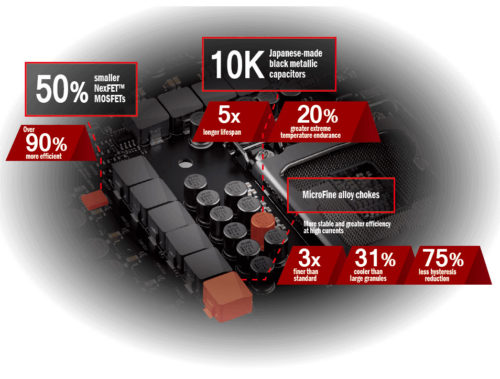

ROG’s revered digital power controller now delivers even-finer power, with Texas Instruments NexFET™ MOSFETs, MicroFine alloy chokes, Digi+ PWM controller and 10K black metallic capacitors — ensuring Extreme Engine Digi+ always delivers the smoothest core voltages!
Intel Gigabit Ethernet
More throughput, less CPU usage and great gaming experiences

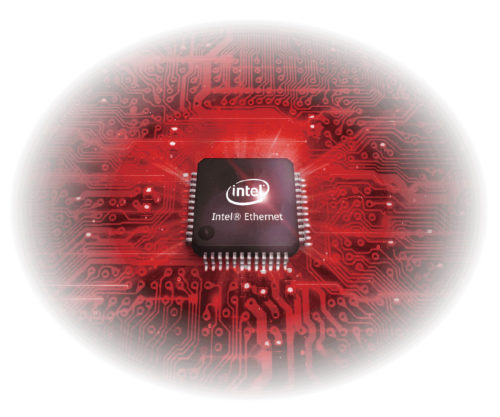

ROG features the very latest Intel® Ethernet (i-219V) for faster, smoother gaming — always. Intel’s LAN has the serious double advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput, so there’s more power for your game and your gameplay.
LANGuard
Pumped-up throughput. Best surge protection

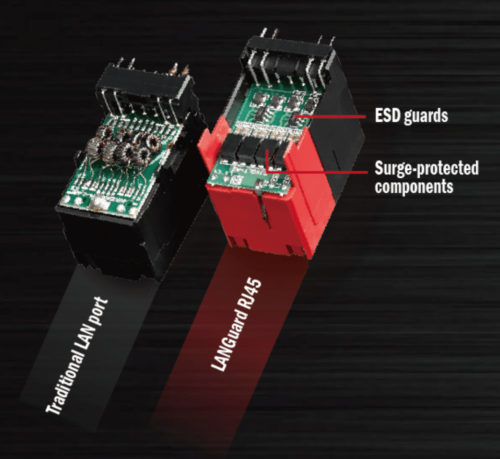

Signal-coupling technology and premium surface-mounted components ensure a more reliable connection and better throughput. Additionally, electrostatically-guarded and surge-protected components (ESD Guards) allow for 1.9x-greater tolerance to static electricity and 2.5x-greater protection (up to 15kV) against surges!
Lighting Control
Brighten up your build

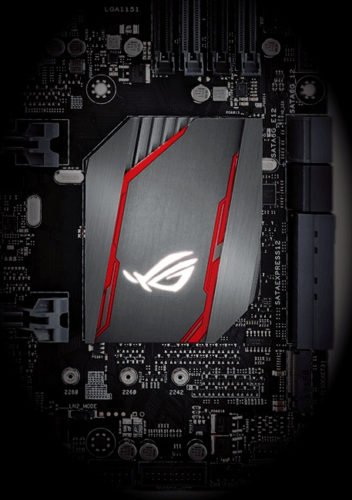

Customize your own favorite LED effect to cast a stunning multi-color glow across your build, change shades to indicate CPU temperature, or pulsate in time to the beat of your favorite tunes.
What’s in the box!
Product Specs
| CPU Support | Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors, Supports Intel® 14nm CPU, Supports Intel® Turbo Boost Technology 2.0, The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel® Z170 |
| Memory | 4 x DIMM, Max. 64GB, DDR4 3800(O.C.)/3733(O.C.)/3600(O.C.)/3500(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory, Supports Intel® Extreme Memory Profile (XMP), Hyper DIMM support is subject to the physical characteristics of individual CPUs, Dual Channel Memory Architecture |
| Graphics | Integrated Intel® HD Graphics HDMI: max 4096×2160 @ 24Hz DisplayPort 1.2: max 4096×2304 @ 60Hz Max shared memory: 512MB Supports Intel® InTru™ 3D, Quick Sync, Clear Video HD, Insider™ |
| Multi-GPU Support | Supports NVIDIA® Quad-GPU SLI™ Technology, Supports AMD 3-Way CrossFireX™ Technology |
| Expansion Slots | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8, +gray) 1 x PCIe 3.0/2.0 x16 (x4 mode, +black) 3 x PCIe 3.0/2.0 x1 |
| Storage | 1 x M.2 x4 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*1 6 x SATA 6Gb/s port(s), gray, 4 ports from 2 x SATA Express 2 x SATA Express port 2 x SATA 6Gb/s port(s), black Intel® Rapid Storage Technology supports*2 Intel® Z170 chipset: ASMedia® ASM1061 controller: Supports Intel® Smart Response Technology, Support Raid 0, 1, 5, 10 |
| LAN | Intel® LAN – Dual interconnect between the Integrated LAN controller and Physical Layer (PHY), Intel® I219V, 1 x Gigabit LAN Controller(s), GameFirst technology, Anti-surge LANGuard |
| Audio | ESS® ES9023P DAC: dB SNR, dB THD+N (Max. kHz/-bit), TI RC4580 2VRMS audio OP AMP(s) ROG SupremeFX 2015 8-Channel High Definition Audio CODEC, Sonic SenseAmp, Sonic Studio II – Sonic Radar II – DTS Connect Gold-plated jacks, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – SupremeFX Shielding Technology Audio Feature: Optical S/PDIF out port(s) at back panel |
| USB Ports | 8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board) 1 x USB 3.1 Gen 2 port(s) (1 at back panel, black, USB Type-C™) Intel® Z170 chipset: 1 x USB 3.1 Gen 2 port(s) (1 at back panel, red, Type-A) ASMedia® USB 3.1 controller: 6 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 4 at mid-board) |
| ROG Exclusive Features | – GPU.DIMM Post – One-click Overclocking – DirectKey KeyBot II – X.M.P. – ClrCMOS – Power On – O.C. Profile – NexFET™ Power Block MOSFET ROG RAMDisk Mem TweakIt LN2 Mode Start Button Reset Button Extreme Engine Digi+: – MicroFine Alloy Chokes – 10K Black Metallic Capacitors UEFI BIOS features: – Tweakers’ Paradise – ROG SSD Secure Erase – Graphic Card Information Preview |
| Special Features | – 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App – Mobo Connect – HyStream Remote Entertainment – Media Streamer RAMCache – Push Notice – USB 3.1 Boost – Disk Unlocker – ASUS USB BIOS Flashback® – Ai Charger+ – MemOK! – PC Cleaner OC Design – ASUS PRO Clock Technology – Full BCLK range for extreme overclocking performance – ASUS Q-Connector – ASUS Q-Code ASUS Exclusive Features: – AI Suite 3 ASUS EZ DIY: – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 ASUS Q-Design: – ASUS Q-Shield – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) – ASUS Q-Slot – ASUS Q-DIMM 5-Way Optimization by Dual Intelligent Processors 5 |
| Operating System | Windows® 7, 32bit/64bit Windows® 8.1, 64bit Windows® 10, 64bit |
| Back I/O Ports | 1 x USB 3.1 Gen 2 (black) USB Type-C™ 1 x USB 3.1 Gen 2 (red) Type-A 4 x USB 2.0 2 x USB 3.1 Gen 1 (blue) 1 x USB BIOS Flashback® Button(s) 1 x PS/2 keyboard/mouse combo port(s) 1 x LAN (RJ45) port(s) 1 x DisplayPort 1 x HDMI 1 x Optical S/PDIF out 5 x Audio jack(s) |
| Internal I/O Ports | 2 x SATA Express connector: gray, Compatible with 4 x SATA 6.0 Gb/s ports 4 x Chassis Fan connector(s) (4-pin) 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD) 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x ROG extension (ROG_EXT) header(s) 1 x Water Pump header (4-pin) 1 x CPU Fan connector(s) (4-pin) 1 x CPU OPT Fan connector(s) (4-pin) 1 x MemOK! button(s) 1 x System panel(s) (Q-Connector) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Thunderbolt header(s) 1 x 14-1 pin TPM connector 1 x LN2 Mode jumper(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x AAFP connector 1 x Thermal sensor connector(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) |
| Accessories | 1 x 12 in 1 ROG Cable Label(s) ROG Fan Label 1 x SLI bridge(s) 1 x ROG Door Hanger(s) 1 x Q-connector(s) (1 in 1) ASUS Q-Shield 1 x CPU installation tool 6 x SATA 6Gb/s cable(s) User’s manual 1 x M.2 Screw Package 1 x Supporting DVD |
| BIOS | 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information. |
| Manageability | WfM2.0, DMI3.0, WOL by PME, PXE |
| Support Disc | Drivers ROG GameFirst technology ROG RAMDisk ROG RAMCache ROG CPU-Z ROG Mem TweakIt Overwolf ROG Keybot II Kaspersky® Anti-Virus DAEMON Tools Pro Standard ASUS WebStorage ASUS Utilities |
| Form Factor | 12 inch x 9.6 inch (30.5 cm x 24.4 cm), ATX Form Factor |
