Description

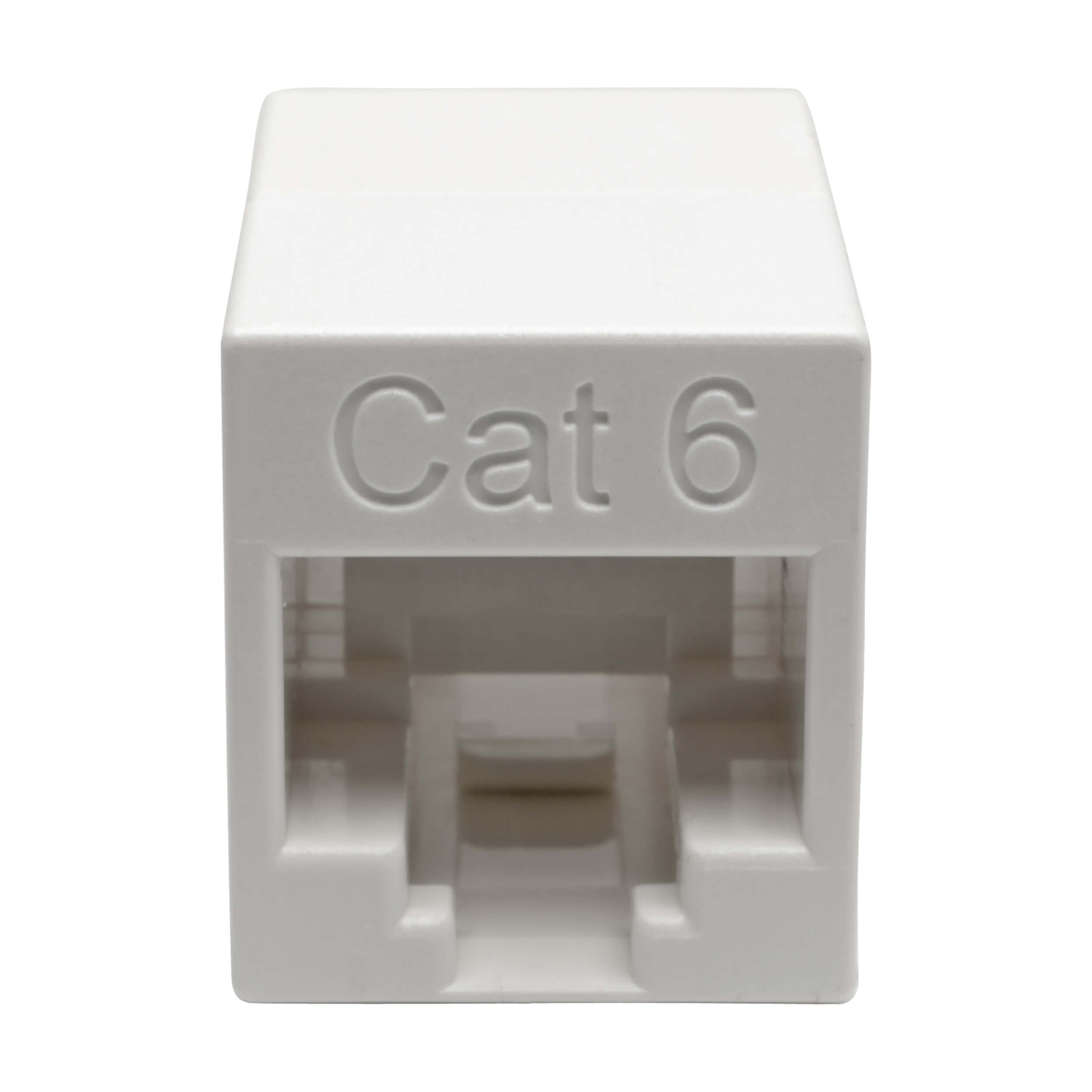

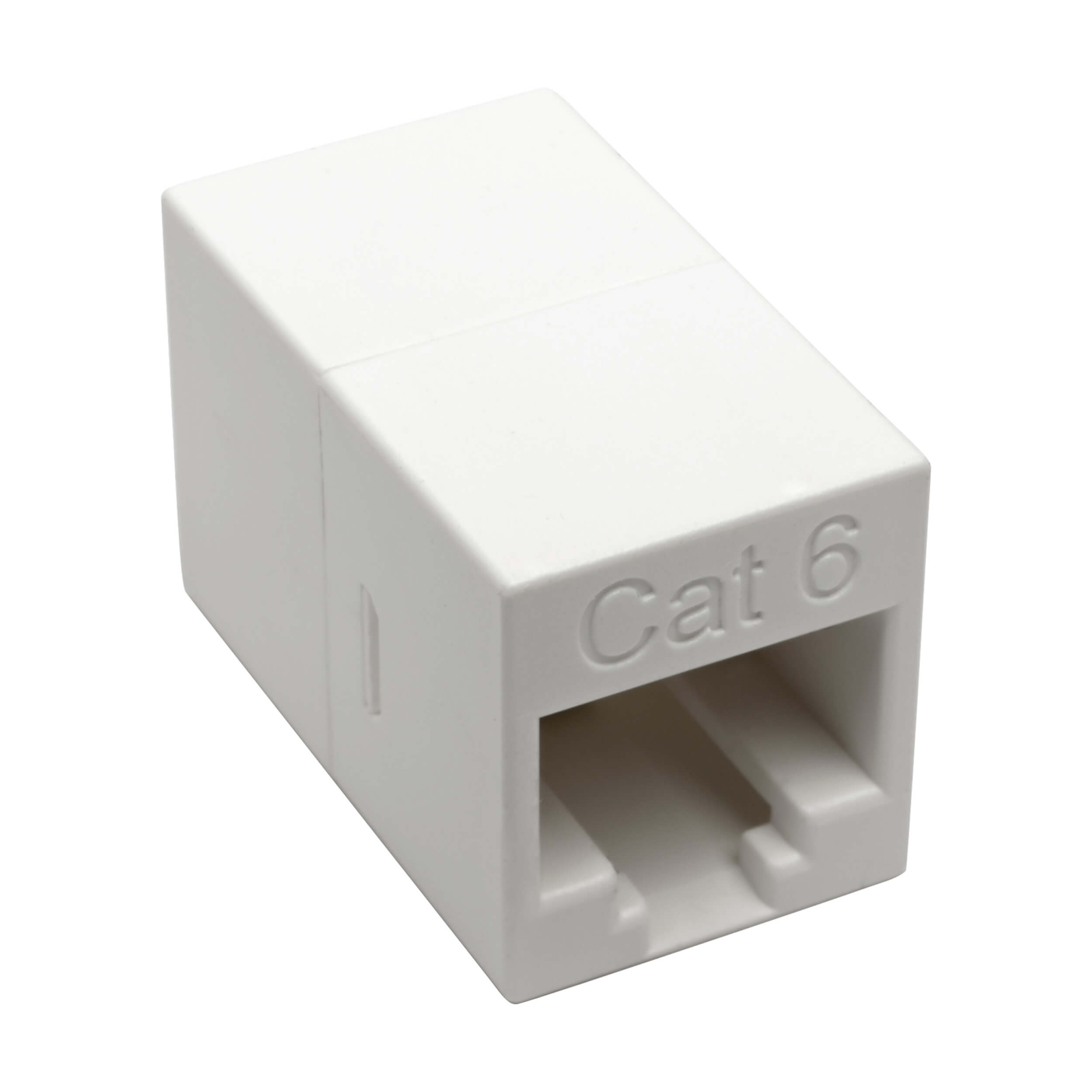

Strengthen your high-speed network with this N234-001-WH Cat6 Straight-Through Modular Compact In-Line Coupler. It connects two Cat6 patch cords to create one longer cable, and its compact in-line design is recommended for convenient feed-through patching. Built for ultra-fast performance, this is an ideal coupler when setting up premise wiring, voice/data networking, telecommunications and Ethernet connections.
Compatible with all Cat6 cables, the N234-001-WH features straight-through wiring and 50-µinch gold-plated contacts designed to resist corrosion. The durable, high-impact polycarbonate housing resists scratching and is colored white to blend in with any color scheme. This coupler is UL-listed and meets all requirements for EIA/TIA Cat6 compliance. It’s also backward compatible with Cat5e and Cat5 LANs.
Strengthens Your High-Speed Network
- Ideal for premise wiring, voice/data networking, telecommunications and Ethernet connections
- Connects 2 Cat6 patch cables for a longer cable run
- Compact in-line design recommended for convenient feed-through patching
- Compatible with all Cat6 cables
- Backward compatible with Cat5e and Cat5 LANs
Superior Construction for Superior Performance
- Features straight-through wiring
- 50-µinch gold-plated contacts resist corrosion and improve conduction
- Durable, scratch-resistant polycarbonate housing
- White coloring blends into any color scheme
- UL-listed
- Meets all EIA/TIA Cat6 requirements
TAA-Compliant
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
| OVERVIEW | ||
|---|---|---|
| UPC Code | 037332203410 | |
| Technology | Cat5/5e; Cat6 | |
| CONNECTIONS | ||
| Side A – Connector 1 | RJ45 (FEMALE) | |
| Side B – Connector 1 | RJ45 (FEMALE) | |
| PoE Type | Type 4 High-Power (100W, IEEE 802.3bt) | |
| PHYSICAL | ||
| Color | White | |
| Cable Length (ft.) | 0 | |
| Shipping Dimensions (hwd / in.) | 0.50 x 4.00 x 5.30 | |
| Shipping Weight (lbs.) | 0.01 | |
| Unit Dimensions (hwd / in.) | 0.630 x 0.570 x 0.980 | |
| ENVIRONMENTAL | ||
| Operating Temperature Range | 14° to 140°F (-10° to 60°C) | |
| Storage Temperature Range | -40° to 154°F (-40° to 68°C) | |
| Relative Humidity | 10% to 90% RH, Non-Condensing | |
| STANDARDS & COMPLIANCE | ||
| Product Compliance | Trade Agreements Act (TAA) | |
| WARRANTY & SUPPORT | ||
| Product Warranty Period (Worldwide) | Lifetime limited warranty | |
