Startech USB to RS232 DB9/DB25 Serial Adapter/ ICUSB232DB25

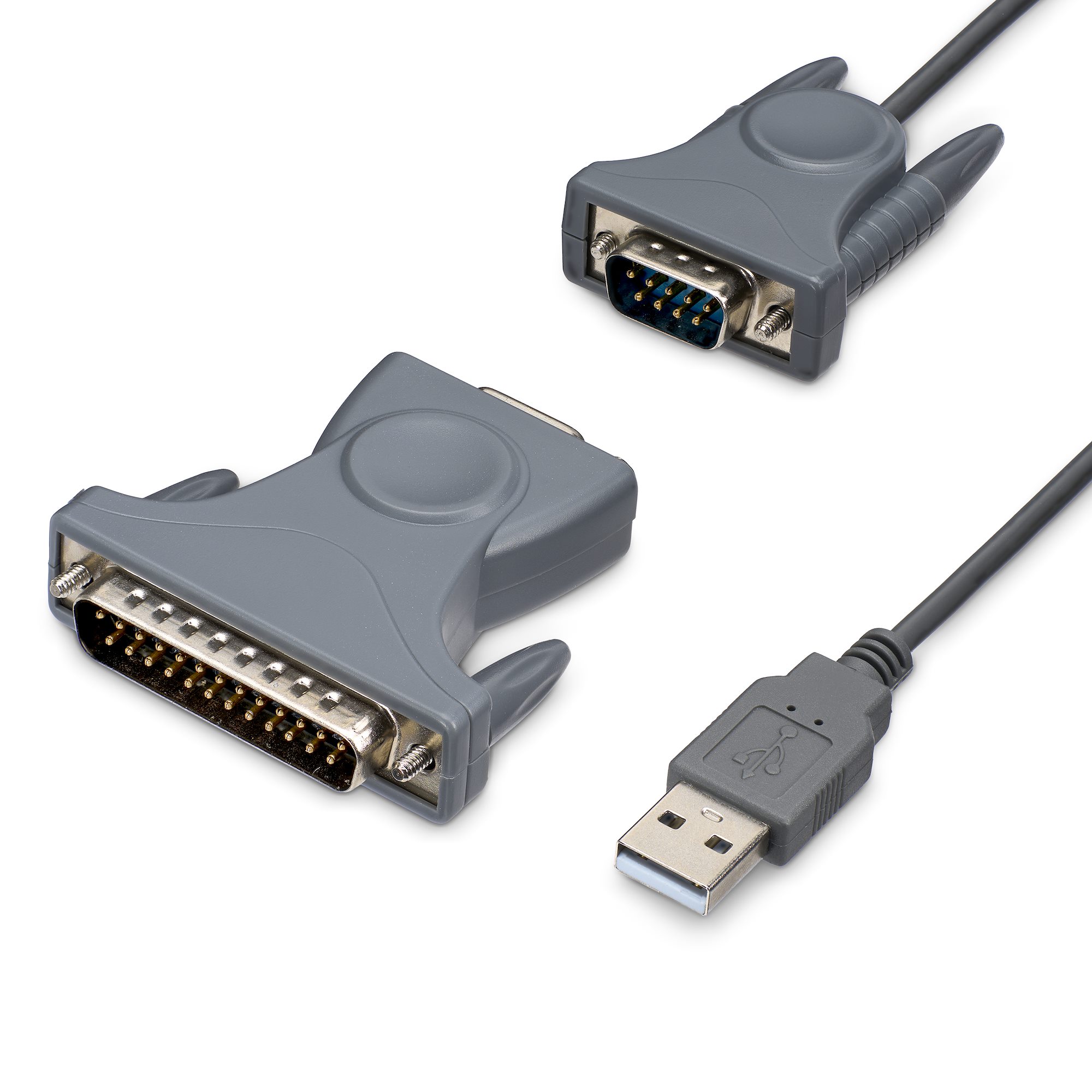

Startech USB to RS232 DB9/DB25 Serial Adapter/ ICUSB232DB25 - Image 2

Startech USB to RS232 DB9/DB25 Serial Adapter/ ICUSB232DB25 - Image 3

Startech USB to RS232 DB9/DB25 Serial Adapter/ ICUSB232DB25 - Image 4

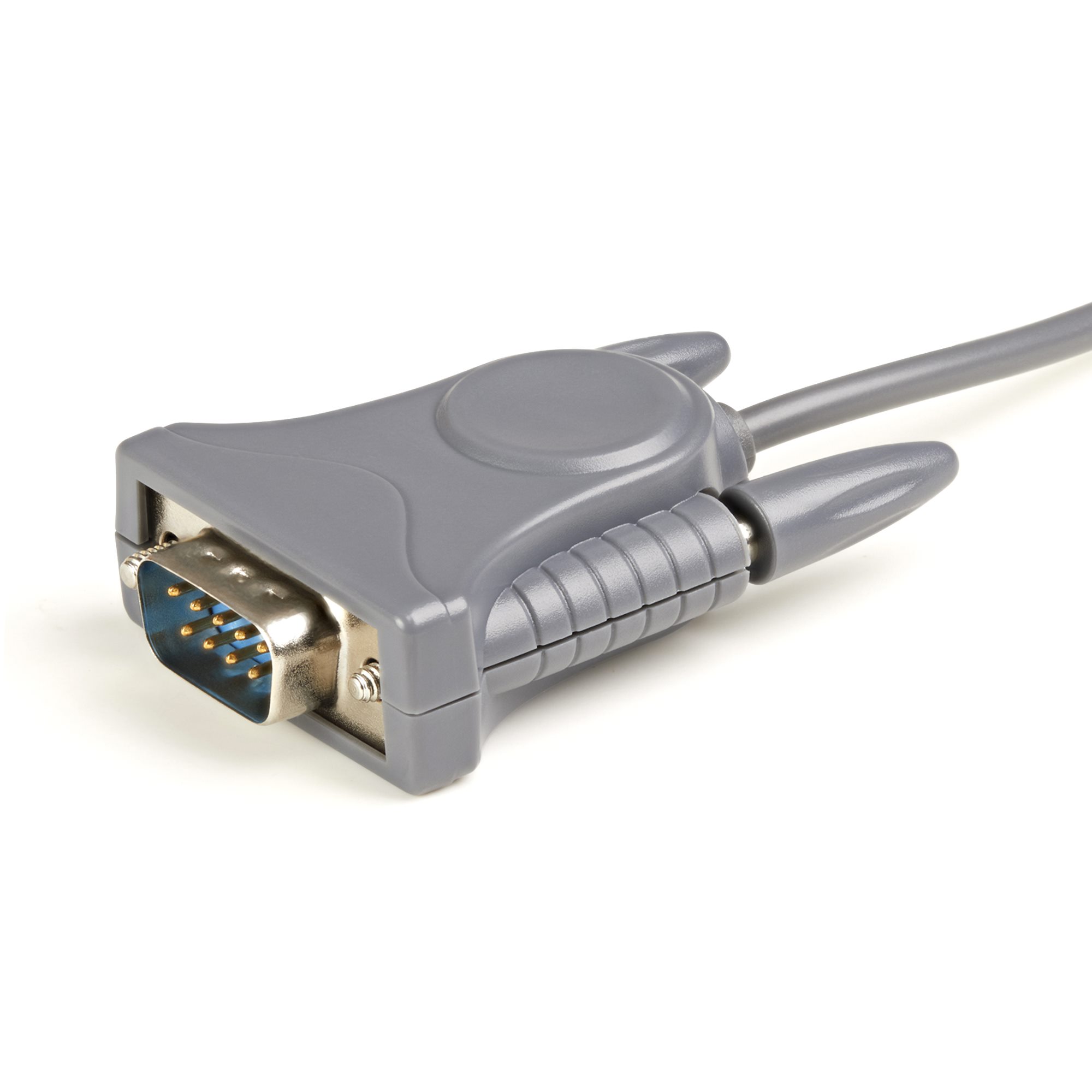

Startech USB to RS232 DB9/DB25 Serial Adapter/ ICUSB232DB25 - Image 5

Startech USB to RS232 DB9/DB25 Serial Adapter/ ICUSB232DB25

$36.95

Add an RS232 serial port to a notebook or desktop computer with this Plug-and Play USB adapter cable

USB TO SERIAL: Connect serial RS232 (DB9 or DB25) devices to a computer with this USB to serial adapter. Secure the cable using the screw-lock nuts located on the male serial DB9/DB25 connector; Reach peripherals with extended cable length 3ft (91cm)
DEVICE COMPATIBILITY: Use this USB to RS232 serial adapter to reliably connect, configure, and monitor serial devices; Compatible with barcode readers / scanners, network switches, receipt printers, PLCs, medical devices, oscilloscopes, scales, etc.
APPLICATIONS: This USB to serial cable is ideal for IT applications such as server rooms, industrial control/automation, logistics, POS, AV installations, laboratories, etc; Continue using legacy hardware with modern systems, using this USB to RS232 cable
USB TO SERIAL ADAPTER SPECS: 3ft (91cm) Cable Length; Max Baud 230.4 Kbps; 512 Byte FIFO; Supports Windows, macOS, and Linux; Prolific PL2303GC Chipset; Odd/Even/Mark/Space/None Parity Modes; 4/5/6/7/8 Data Bits
THE IT PRO’S CHOICE: Designed and built for IT Professionals, this USB to serial port adapter is backed for 2-years, including free lifetime 24/5 multilingual technical assistance

Regular Stock. Please contact our sales at 780-481-8855 to get current availability. Holds limited to 24 hours maximum.

SKU: CC1ST1CC8002 Category: Adapters

Description
Additional information

Description

The ICUSB232DB25 USB to RS232 DB9/DB25 Serial Adapter Cable (M/M) lets you connect 9-pin (DB9) or 25-pin (DB25) RS232 serial devices to your laptop or desktop computer through a USB port, as though the computer offered an onboard serial port. The integrated 3-foot (0.9 meter) cable allows it to be connected directly from the serial device to the computer without requiring additional cables.A cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals, this high quality USB/RS232 Serial Adapter cable ships with a DB-9 to DB-25 adapter for connection to varied serial equipment.Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

Ideal for connecting serial devices to laptops or tablet PCs through the USB port
Connect to and monitor/control industrial sensors
Connect bar code scanners and other serial devices to a USB port

Connect a serial modem, digital camera, or PDA with serial sync to your PC’s USB port
Connect to automotive ODB/ODBII sensor adapters that use serial connectivity

The StarTech.com Advantage

This versatile device ships with a 9-pin connector, and a 25-pin RS232 adapter for a variety of connection options
Integrated 3ft cable allows you to connect directly to your serial devices
Plug-and-Play/Hot-swap support enables you to add and remove this adapter without having to reboot the computer

Technical Specifications

Warranty Information
	Warranty	2 Years
CONNECTOR(S)
	Connector Type(s)	1 – USB 2.0 Type-A (4 pin, 480Mbps)
	External Ports	1 – DB-9 (9 pin, D-Sub) 1 – DB-25 (25 pin, D-Sub)
ENVIRONMENTAL
	Operating Temperature	0°C to 70°C (32°F to 158°F)
	Storage Temperature	-40°C to 85°C (-40°F to 185°F)
	Humidity	5~85% RH
HARDWARE
	Ports	1
	Interface	Serial
	Bus Type	USB 2.0
	Port Style	Cable Adapters
	Chipset ID	Prolific – PL2303GC
PACKAGING INFORMATION
	Package Height	1.3 in [3.3 cm]
	Package Length	6.8 in [17.2 cm]
	Shipping (Package) Weight	5.0 oz [142.0 g]
	Package Width	5.6 in [14.3 cm]
	Package Quantity	1
PERFORMANCE
	Serial Protocol	RS-232
	Max Baud Rate	230.4 Kbps
	Data Bits	4, 5, 6, 7, 8
	FIFO	512 Bytes
	Flow Control	None, Xon/ Xoff, Hardware
	Parity	None, Even, Odd, Mark, Space
	Stop Bits	1, 1.5, 2
PHYSICAL CHARACTERISTICS
	Weight of Product	2.6 oz [75.0 g]
	Product Width	2.2 in [5.5 cm]
	Product Height	0.7 in [1.7 cm]
	Color	Gray
	Material	Plastic
	Cable Length	3.0 ft [0.9 m]
	Product Length	36.0 in [91.5 cm]
SOFTWARE
	OS Compatibility	Windows® PocketPC 2003, Windows Mobile 5/6, CE 4.2/5.2, Embedded System 2009, POS Ready 2009, Vista, 7, 8, 8.1, 10, 11 Windows Server® 2003, 2008 R2, 2012, 2016, 2019, 2022 macOS 10.6 to 10.15, 11.0, 12.0, 13.0, 14.0, 15.0 Linux 2.4.x and up – LTS Versions only
	Microsoft WHQL Certified	Yes
WHAT’S IN THE BOX
	Included in the Package	1 – 3ft USB to RS232 Cable 1 – DB9 to DB25 Serial Adapter 1 – Driver CD 1 – Manual
