Description

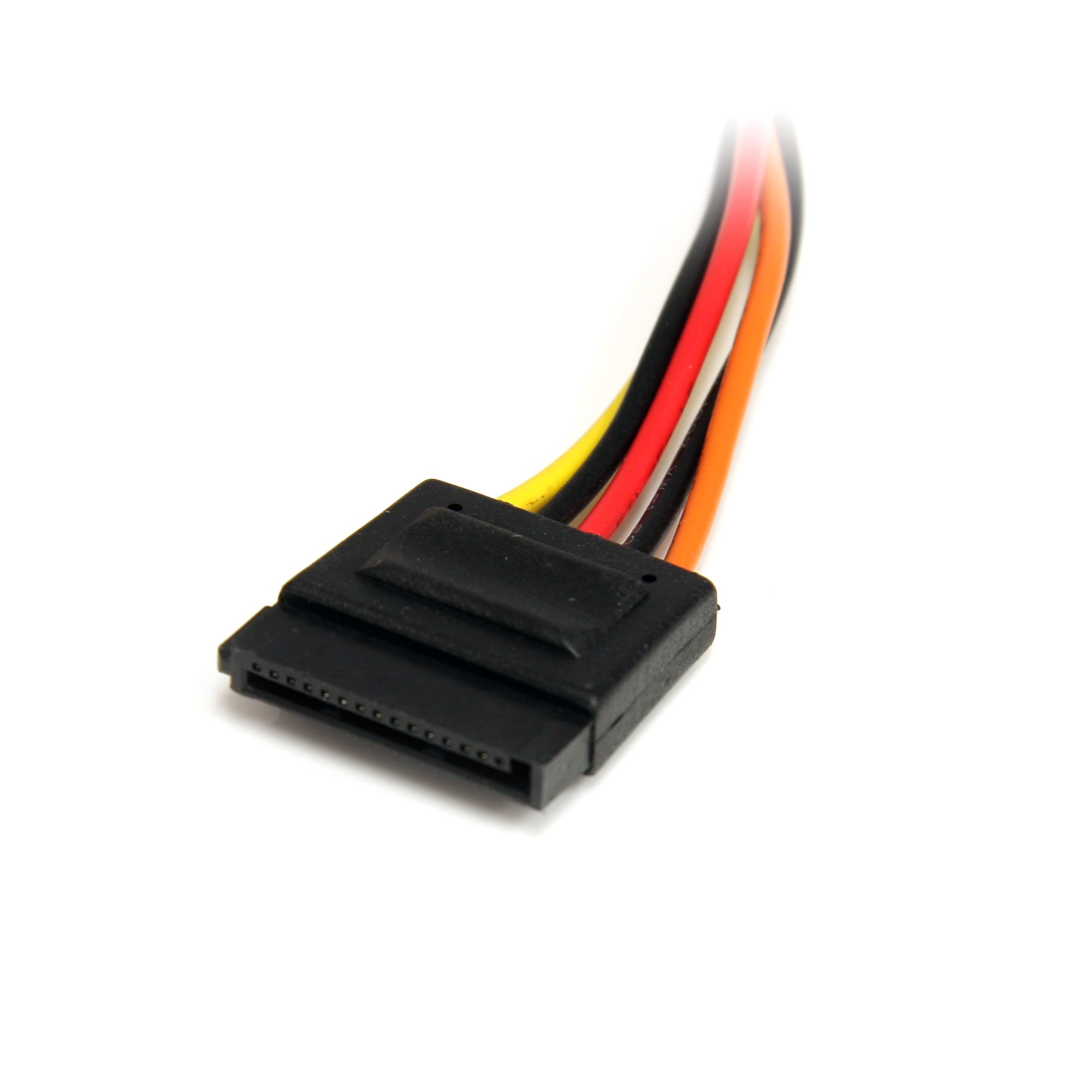

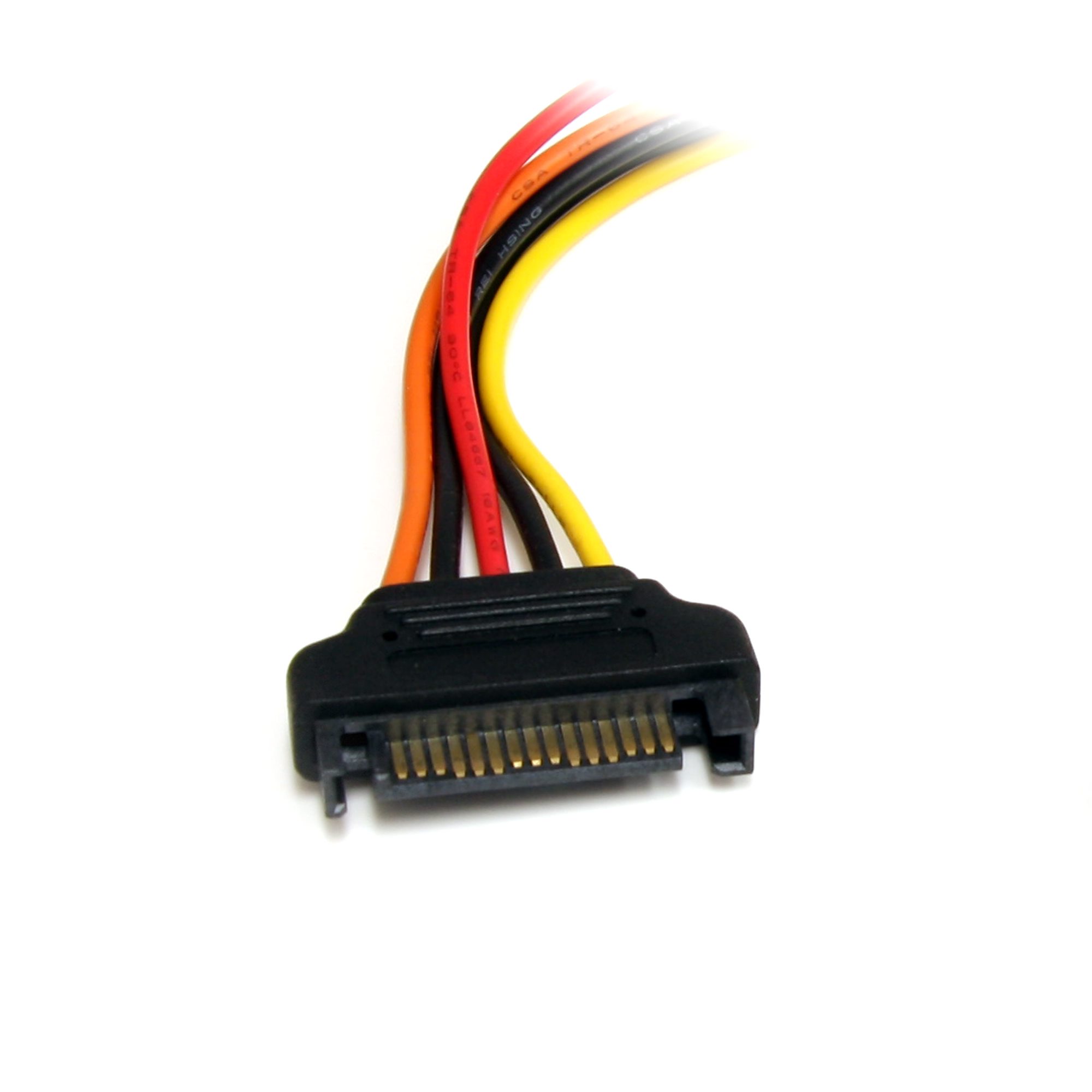

The SATAPOWEXT12 SATA Power Extension Cable (15-pin, 12-inch) enables you to extend the reach between internal SATA power and drive connections by up to 12 inches.The extension cable helps to simplify drive installation by overcoming typical connection limitations and reduces the risk of damage to the drive or motherboard SATA connectors by eliminating the need to strain or stretch the cable in order to make the necessary connection.This SATA Power Extension Cord is backed by StarTech.com’s lifetime warranty.
Applications
- Provides flexibility in SATA drive and cable placement, when building or upgrading systems
- Extend SATA backplane adapter connections
- Extend SATA Drive Dock connections
The StarTech.com Advantage
- Extends the reach from the SATA power connection to your SATA drive by up to 12”, providing more flexibility
- Eliminates the need to bend or strain the SATA cable to account for a lack of space
- Backed by a StarTech.com lifetime warranty
Specifications
| WARRANTY INFORMATION |
|
Warranty |
Lifetime |
| CONNECTOR(S) |
|
Connector A |
1 – SATA Power (15 pin) |
| Connector B |
1 – SATA Power (15 pin) |
| PACKAGING INFORMATION |
|
Package Height |
0.4 in [9.0 mm] |
| Package Length |
5.3 in [13.5 cm] |
| Shipping (Package) Weight |
1.0 oz [28 g] |
| Package Width |
5.0 in [12.7 cm] |
| Package Quantity |
1 |
| PHYSICAL CHARACTERISTICS |
|
Weight of Product |
0.8 oz [23 g] |
| Color |
Black |
| Wire Gauge |
18 AWG |
| Cable Length |
12.0 in [304.8 mm] |
| Product Length |
12.0 in [30.5 cm] |
| Product Height |
0.4 in [1 cm] |
| Product Width |
1.0 in [2.5 cm] |
| WHAT’S IN THE BOX |
|
Included in Package |
1 – 12in 15 pin SATA Power Extension Cable |
