Description
The SAT2510U3S 2.5in Hard Disk Drive Enclosure for SAT2510U3REM is a spare SATA drive enclosure for use with the SAT2510U3REM Removable Hard Drive Backup System/Mobile Rack, which simplifies removing/rotating drives, and is also backward compatible with the USB 2.0 model, SAT2510U2REM.
This 2.5″ SATA enclosure allows for native SATA connectivity (SATA 6 Gbps compliant) while mounted inside the SAT2510U3REM backup system, but also provides SuperSpeed USB 3.0 connectivity (with up to 5 Gbps of data bandwidth) when used externally.
The StarTech.com Advantage
- Provides spare enclosures for the SAT2510U3REM for swapping between multiple drives
- Connects externally through USB 3.0, with up to 5 Gbps of data bandwidth for fast access to stored data
- Keeps drives protected when outside of the SAT2510U3REM bay
Technical Specifications
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 2 Years | |
| HARDWARE | ||
| Chipset ID | ASMedia – ASM1053 ASMedia – ASM1456 |
|
| Compatible Drive Types | SATA | |
| Drive Installation | Fixed | |
| Drive Size | 2.5in | |
| Interface | SATA | |
| USB 3.0 | ||
| Number of Drives | 1 | |
| PERFORMANCE | ||
| MTBF | 100,000 Hrs | |
| Type and Rate | USB 3.0 – 5 Gbit/s | |
| SATA III (6 Gbps) | ||
| CONNECTOR(S) | ||

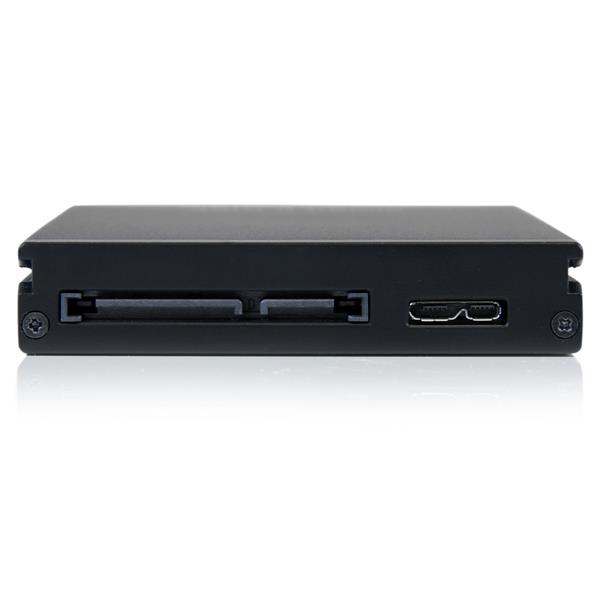

| Drive Connectors | 1 – SATA Data & Power Combo (7+15 pin) Receptacle | |
| Host Connectors | 1 – SATA Data & Power Combo (7+15 pin) Plug | |
| 1 – USB 3.0 Micro-B (10 pin, SuperSpeed) Female | ||
| SOFTWARE | ||
| OS Compatibility | OS independent; No software or drivers required | |
| INDICATORS | ||
| LED Indicators | 1 – Power/Activity (Green) | |
| ENVIRONMENTAL | ||
| Humidity | 5% ~ 95% RH | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) | |
| PHYSICAL CHARACTERISTICS | ||
| Color | Black | |
| Material | Aluminum and Plastic | |
| Max Drive Height | 0.4 in [9.5 mm] | |
| Product Height | 0.6 in [1.6 cm] | |
| Product Length | 5.2 in [13.3 cm] | |
| Product Width | 3.1 in [79.1 mm] | |
| Weight of Product | 4.3 oz [122 g] | |
| PACKAGING INFORMATION | ||
| Package Height | 1.7 in [42 mm] | |
| Package Length | 7.4 in [18.8 cm] | |
| Package Quantity | 1 | |
| Package Width | 6 in [15.2 cm] | |
| Shipping (Package) Weight | 0.6 lb [0.3 kg] | |

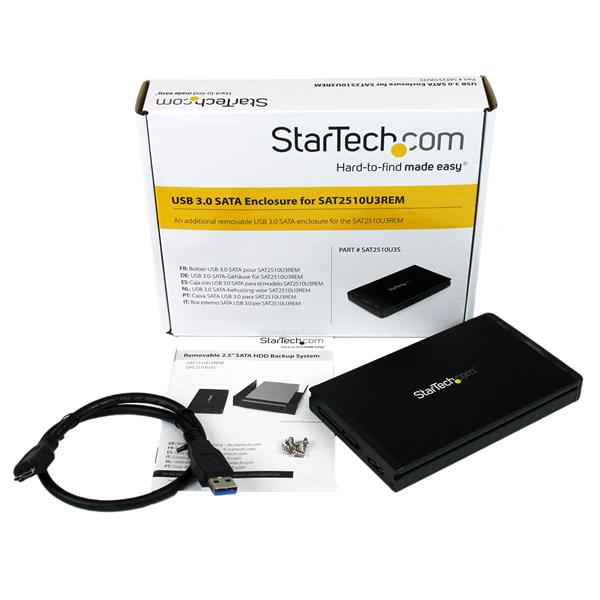

| WHAT’S IN THE BOX | ||
| Included in Package | 1 – 2.5″ SATA Enclosure for SAT2510U3REM | |
| 1 – USB 3.0 A to Micro-B Cable | ||
| 1 – Screw Kit | ||
