Description

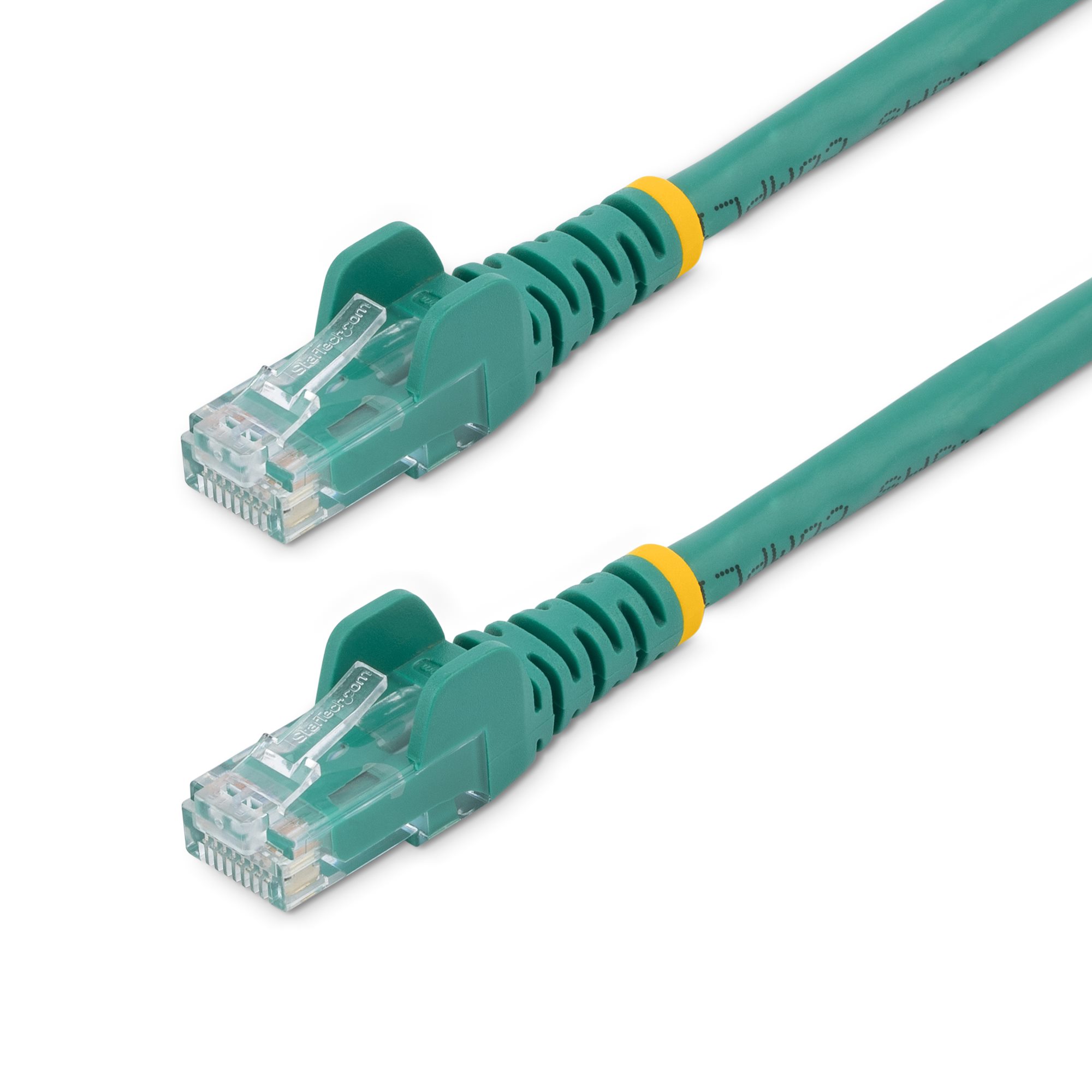

This 75-foot Cat6 cable meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections. Plus, the cable features a durable green PVC jacket that enables you to color code your network cable runs as needed.

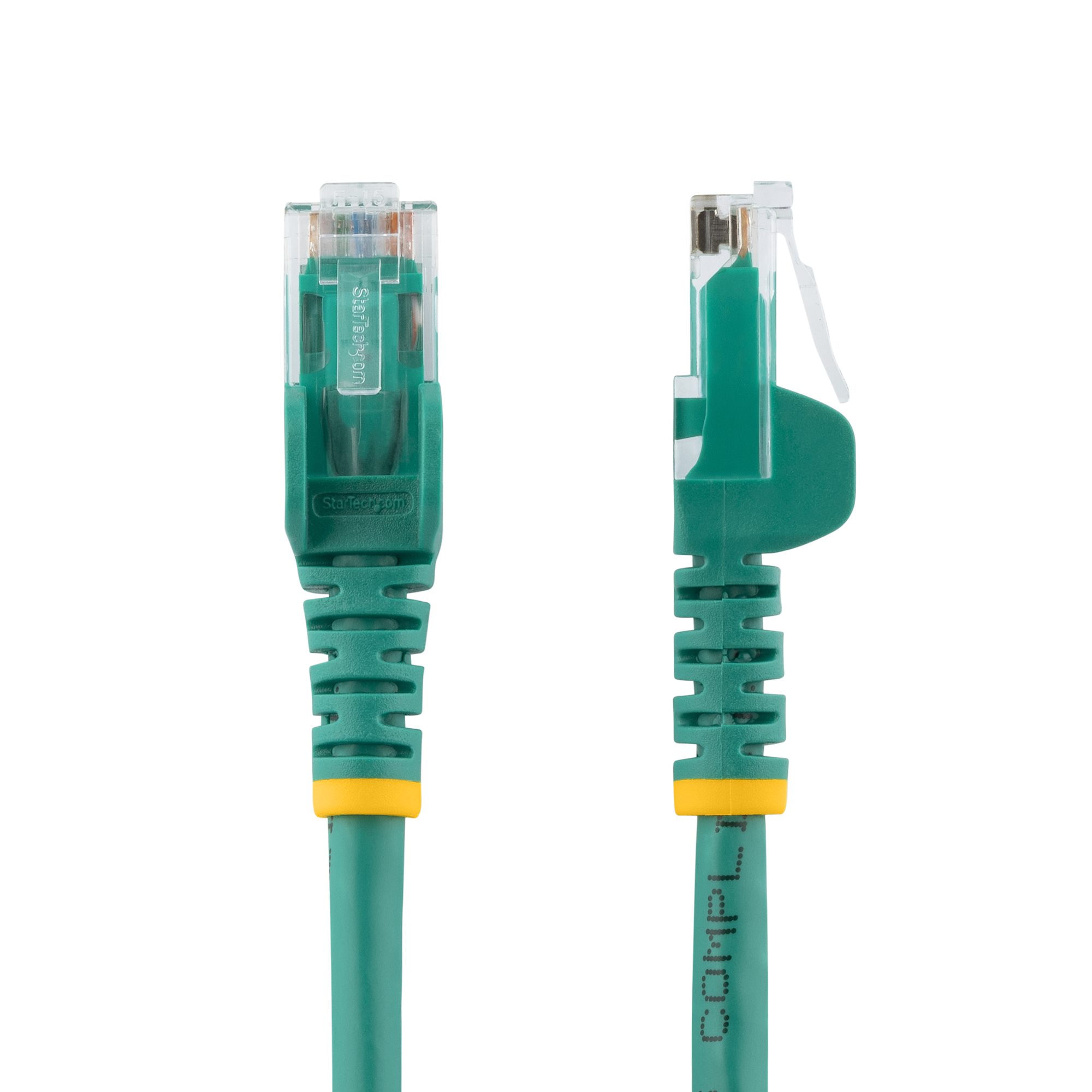

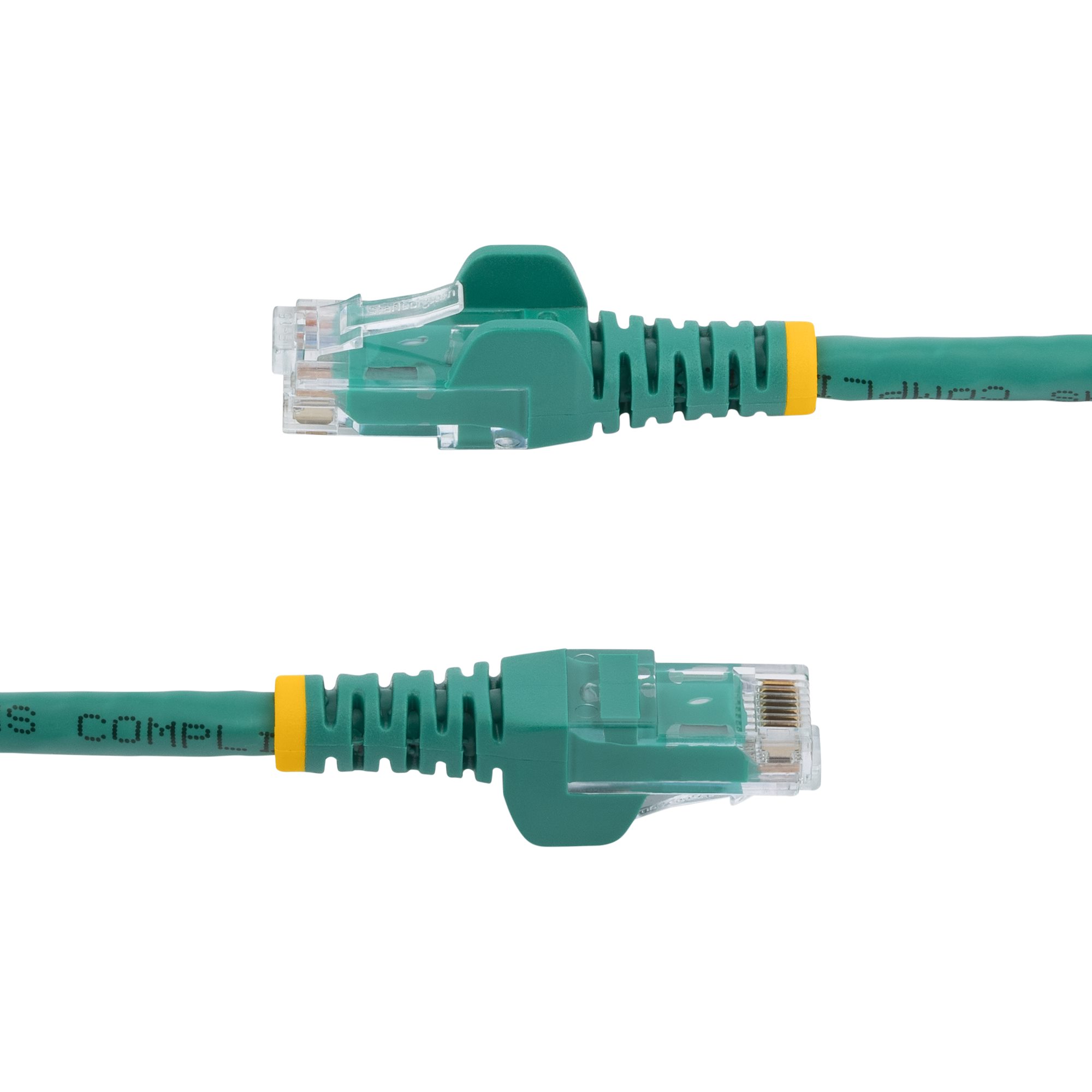

Snagless RJ45 clips help protect your network connections
For easier cable runs, the snagless connectors protect the cable’s RJ45 clips during installation, making them less likely to snag or break. This ensures a sturdy connection by preventing the cable from becoming loose from the port.
The cable features molded boots that offer connector strain relief, by stopping the RJ45 connector termination points from bending at sharp angles, and reducing the risk of damage to the cable, which could decrease network performance.
100% copper for outstanding value
Get the highest value for your cable investment with our Cat 6 cables, each one manufactured using high-quality copper conductors.
24-gauge wire for high-performance network connection
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.

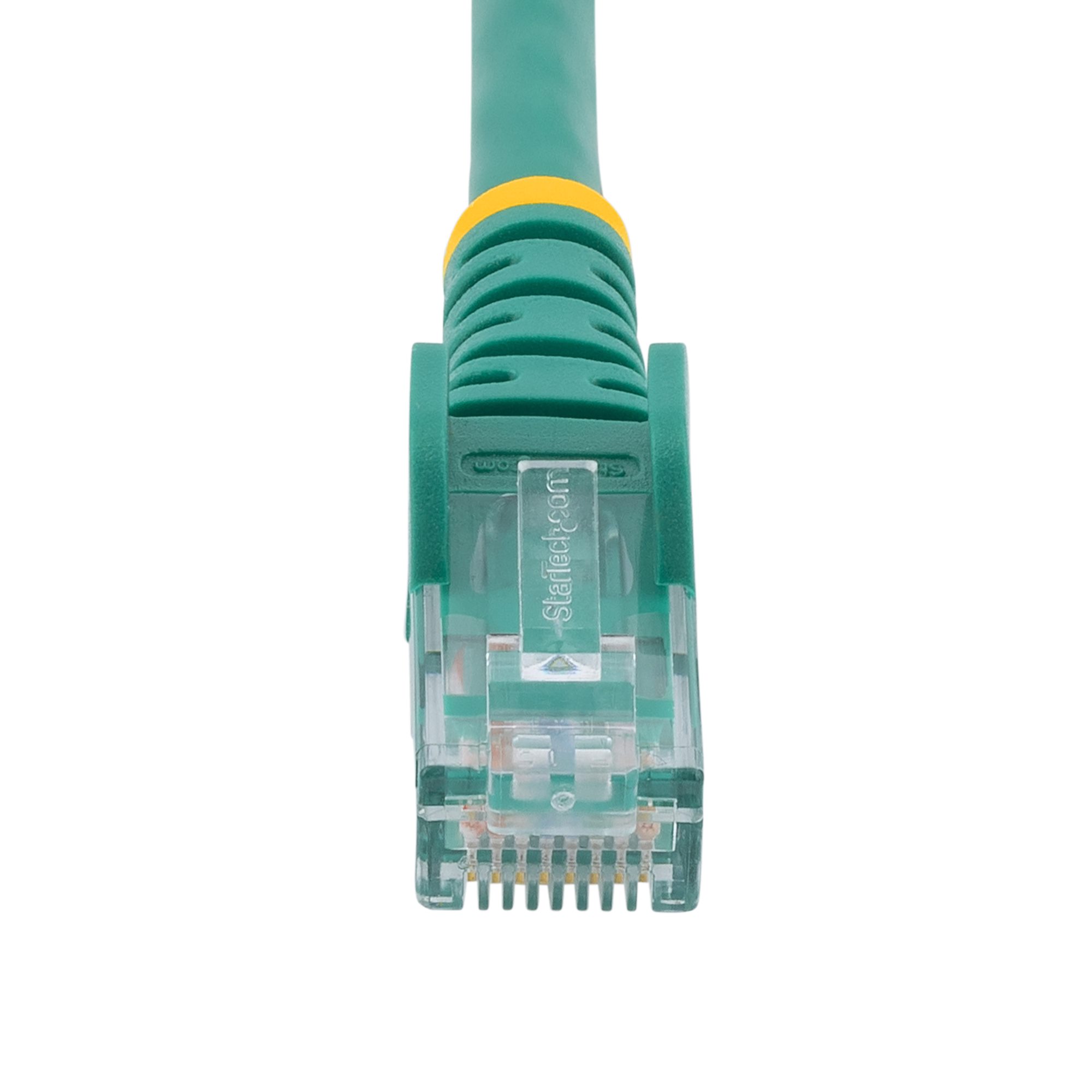

50-micron gold connectors provide peak conductivity
Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
The N6PATCH75GN is backed by StarTech.com’s lifetime warranty for guaranteed reliability.
Technical Specifications
| WARRANTY INFORMATION | |
|---|---|
| Warranty | Lifetime |
| CONNECTOR(S) | |
| Connector A | 1 – RJ-45 |
| Connector B | 1 – RJ-45 |
| ENVIRONMENTAL | |
| Operating Temperature | -20°C to 80°C (-4°F to 176°F) |
| Storage Temperature | -20°C to 80°C (-4°F to 176°F) |
| Humidity | 15 ~ 65% |
| HARDWARE | |
| Number of Conductors | 4 pair UTP |
| Cable Jacket Material | PVC – Polyvinyl Chloride |
| Fire Rating | CMG Rated (General Purpose) |
| Cable Type | Snagless |
| Wiring Standard | TIA/EIA-568-B.1-2001 T568B |
| PACKAGING INFORMATION | |
| Package Height | 1.8 in [4.5 cm] |
| Package Length | 11.2 in [28.5 cm] |
| Shipping (Package) Weight | 2.2 lb [1.0 kg] |
| Package Width | 9.9 in [25.2 cm] |
| Package Quantity | 1 |
| PERFORMANCE | |
| Cable Rating | CAT6 – 650 MHz |
| PHYSICAL CHARACTERISTICS | |
| Weight of Product | 32.2 oz [913 g] |
| Color | Green |
| Wire Gauge | 24 AWG |
| Conductor Type | Stranded Copper |
| Cable Length | 75.0 ft [22.9 m] |
| Product Length | 75.0 ft [22.9 m] |
| WHAT’S IN THE BOX | |
| Included in Package | 1 – 75 ft. Cat6 Patch Cable – Green |
