Description
This internal mini-SAS to SATA cable provides a cost-saving solution for connecting a SAS or SATA controller to four SATA drives. It’s the perfect replacement for your SFF data-storage cables.The cable is compatible with 6Gbps SATA drives.The SAS43SAT1M is backed by StarTech.com’s lifetime warranty for guaranteed reliability.
Applications
- Connect a SAS controller to four SATA drives
Specifications
| WARRANTY INFORMATION |
|
Warranty |
Lifetime |
| CONNECTOR(S) |
|
Connector A |

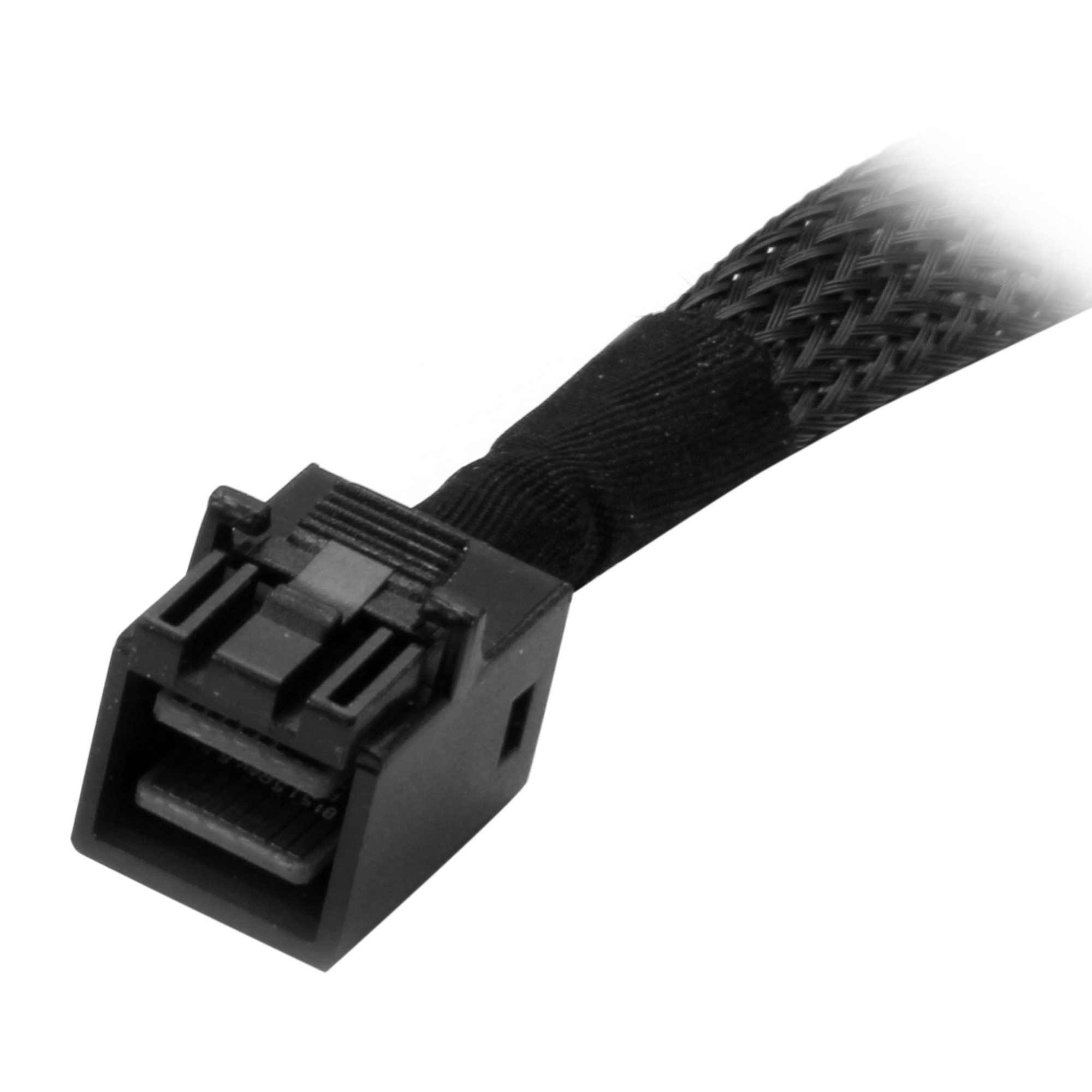

1 – SFF-8643 (36 pin, Internal HD Mini SAS) |
| Connector B |

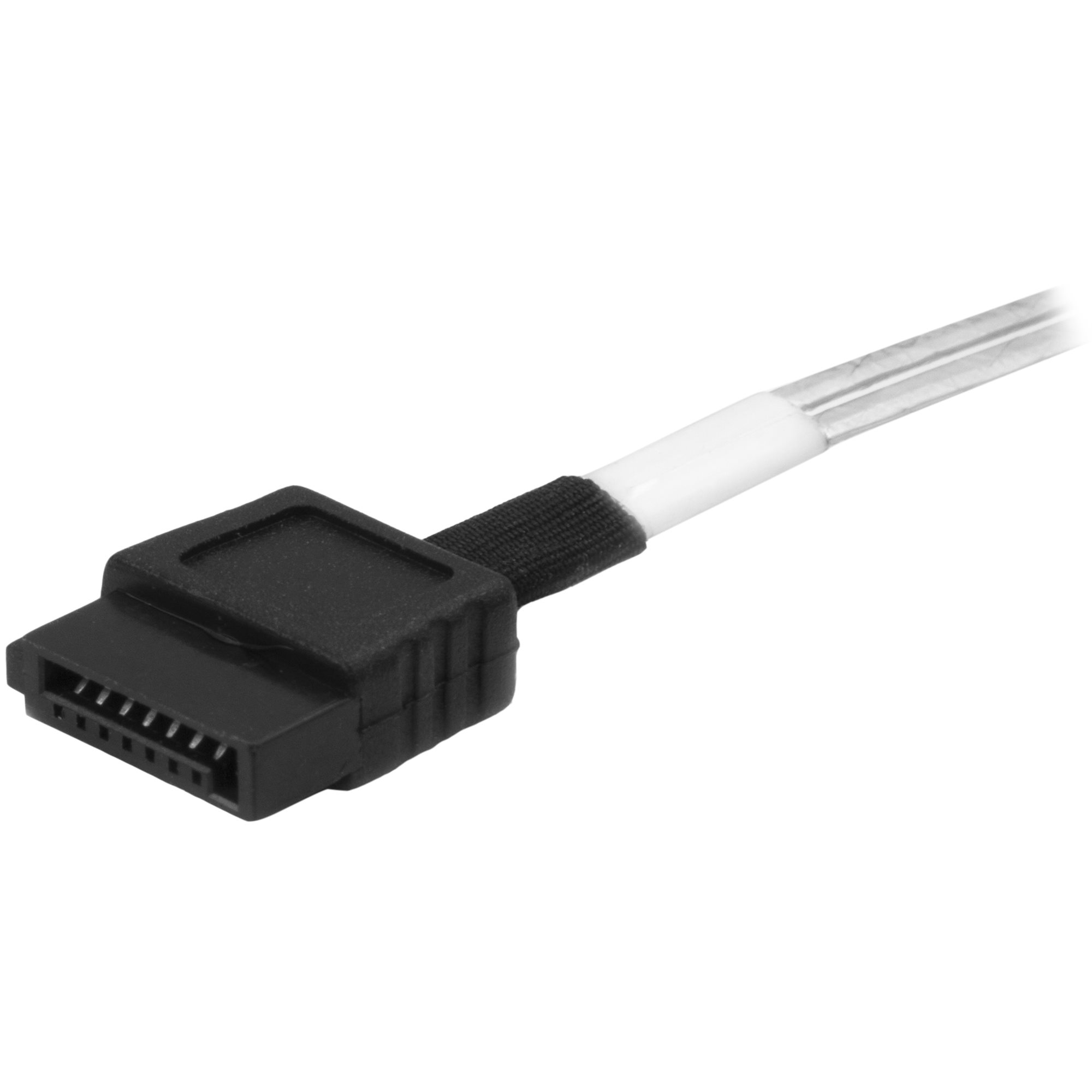

1 – SATA (7 pin, Data) |
| ENVIRONMENT |
|
Operating Temperature |
-5°C ~ 60 °C (23°F ~ 140°F) |
| Storage Temperature |
24°C ~ 26 °C (75°F ~ 79°F) – As close to this as possible for maximum longevity |
| Humidity |
~ 60% |
| HARDWARE |
|
Cable Jacket Material |
PVC – Polyvinyl Chloride |
| Cable Shield Material |
Aluminum-polyester foil |
| PACKAGING INFORMATION |
|
Package Height |
1.0 in [2.5 cm] |
| Package Length |
5.4 in [13.8 cm] |
| Shipping (Package) Weight |
1.6 oz [44.0 g] |
| Package Width |
5.0 in [12.7 cm] |
| Package Quantity |
1 |
| PERFORMANCE |
|
MTBF |
250 Insertion Cycles |
| PHYSICAL CHARACTERISTICS |
|
Weight of Product |
1.5 oz [42.0 g] |
| Color |
Black & Silver |
| Wire Gauge |
30 AWG |
| Cable Length |
3.3 ft [1 m] |
| Product Length |
39.4 in [100.0 cm] |
| Product Height |
0.4 in [1.0 cm] |
| Product Width |
0.5 in [1.2 cm] |
| WHAT’S IN THE BOX |
|
Included in Package |
1 – 1 m SFF-8643 to 4x SATA Cable |
