Description
Astonishing Picture Quality

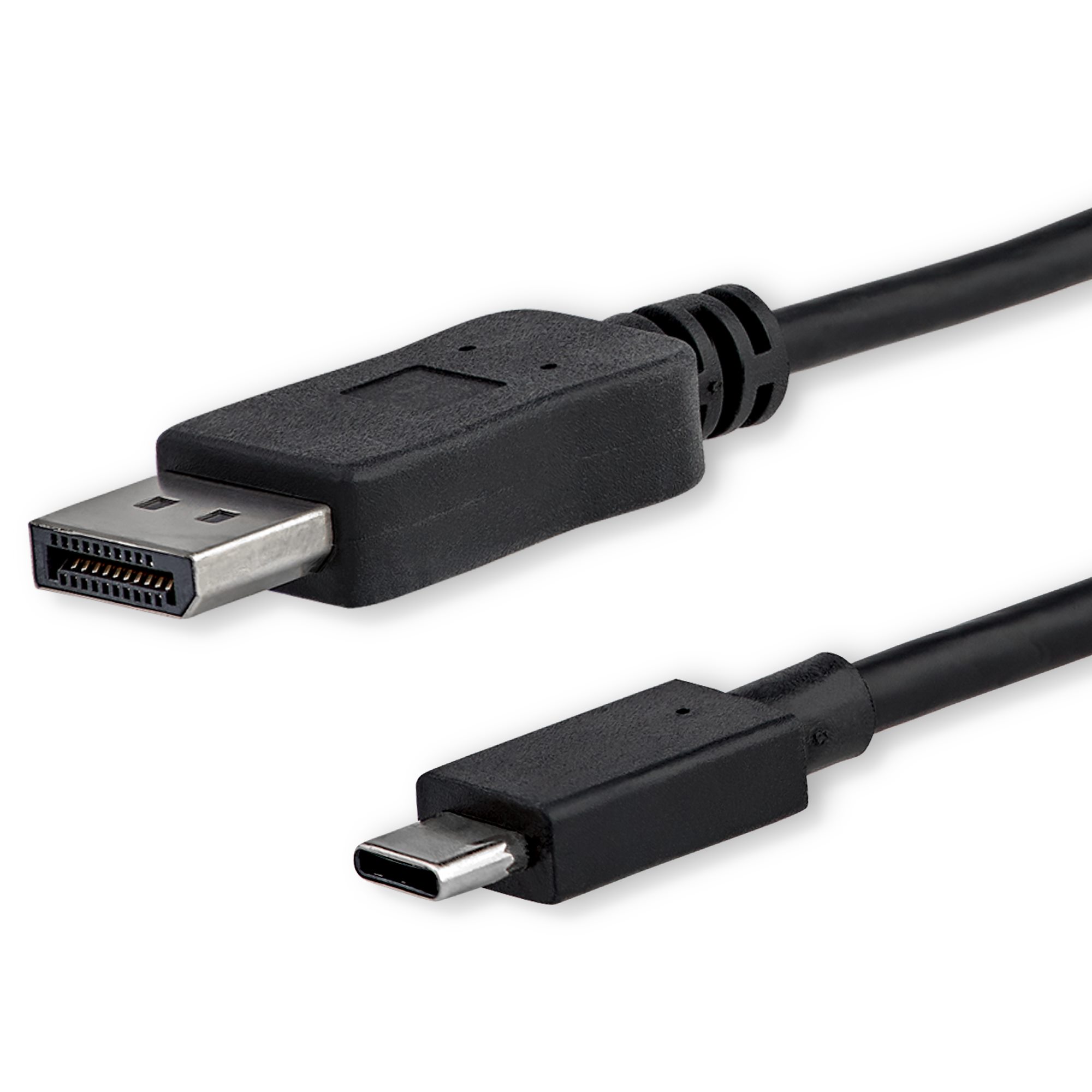

The USB C to DisplayPort adapter cable lets you harness the video capabilities that are built into your USB-C connection, to deliver the astonishing quality of Ultra HD to your 4K display and supporting resolutions up to 3840 x 2160.
Plus, the adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other work environments.
Clutter-Free Installation
At 6 ft. (1.8 m) in length, this monitor cable eliminates the need for excess adapters and cabling, ensuring a tidy, professional installation. For installations requiring shorter or longer connections we also offer a 9.8 ft. (3 m) (CDP2DPMM3MB, CDP2DPMM3MW) and a 3.3 ft. (1 m) (CDP2DPMM1MB, CDP2DPMM1MW) USB-C to DP cable, enabling you to choose the right cable length for your custom installation needs.
Hassle-Free Setup
To ensure easy operation and installation, this USB C to DisplayPort cable works with both Windows and Mac computers and allows for plug-and-play installation, removing the need for any additional software or drivers.
CDP2DPMM6B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note: Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.
Applications

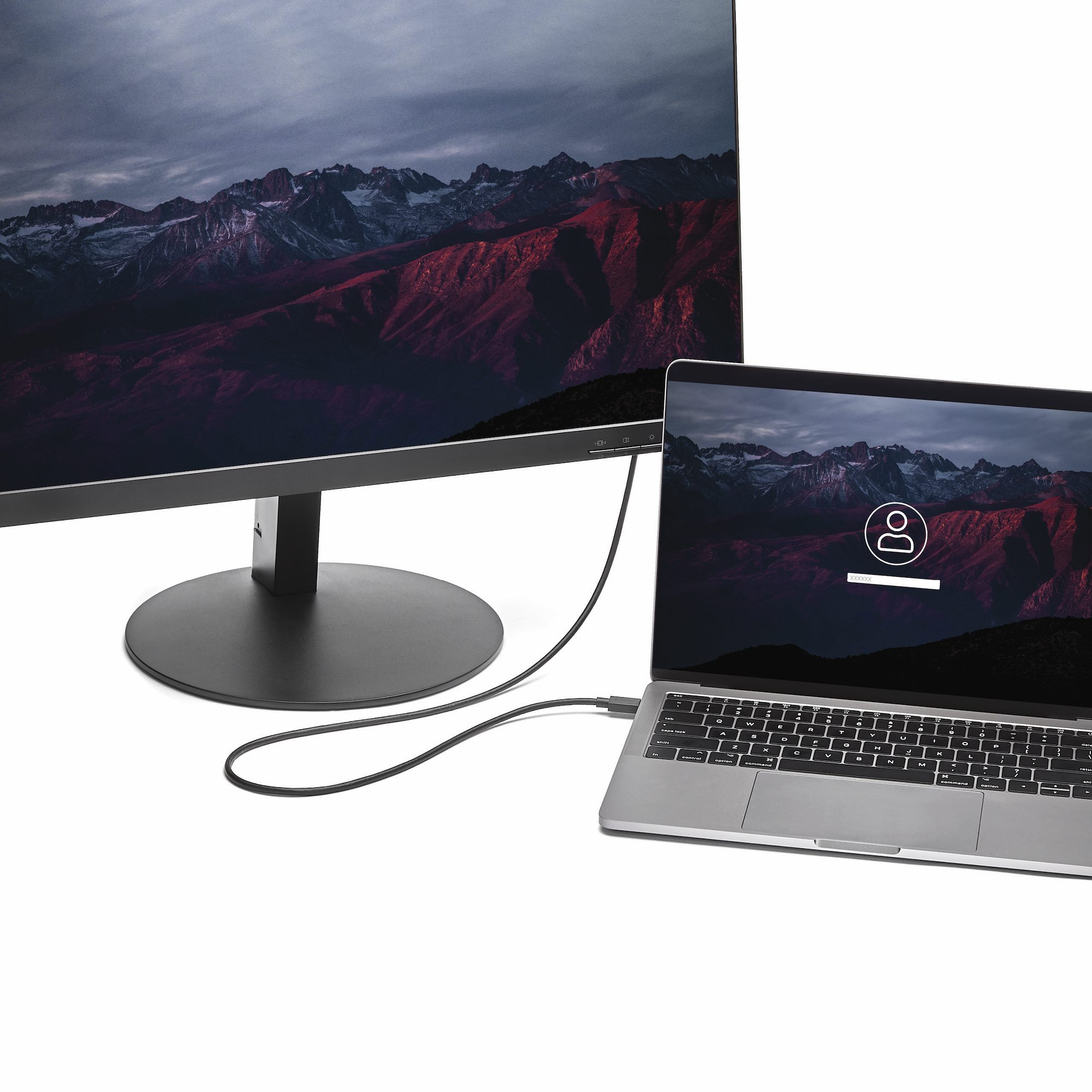

- Connect USB-C or Thunderbolt 3 devices to DP displays
- Ideal for home office or hot desk environments
- Experience enhanced imaging with support for 4K 60Hz
- Deliver enriched presentations on the go
Specifications
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 3 Years | |
| CONNECTOR(S) | ||
| Connector A | 1 – USB-C (24 pin) DisplayPort Alt Mode | |
| Connector B | 1 – DisplayPort (20 pin) | |
| ENVIRONMENTAL | ||
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
| Storage Temperature | -40°C to 80°C (-40°F to 158°F) | |
| Humidity | 20%-70%RH | |
| HARDWARE | ||
| AV Input | USB-C | |
| Ports | 1 | |
| AV Output | DisplayPort – 1.2 | |
| Chipset ID | Controller: STM32F072CBU6 or VL103 | |
| PACKAGING INFORMATION | ||
| Package Height | 0.9 in [2.2 cm] | |
| Package Length | 6.4 in [16.2 cm] | |
| Shipping (Package) Weight | 2.4 oz [68.0 g] | |
| Package Width | 7.9 in [20 cm] | |
| Package Quantity | 1 | |
| PERFORMANCE | ||
| Audio Specifications | DisplayPort – 5.1 Channel Audio | |
| Video Revision | DisplayPort 1.2 | |
| Maximum Digital Resolutions | 3840 x 2160 @ 60 Hz | |
| Supported Resolutions | 1024×768 1280×720 (High-definition 720p) 1920×1080 (High-definition 1080p) 1920×1200 2560×1440 2560×1600 3840×2160 (Ultra HD 4K) |
|
| Wide Screen Supported | Yes | |
| PHYSICAL CHARACTERISTICS | ||
| Weight of Product | 1.7 oz [49 g] | |
| Color | Black | |
| Cable Length | 5.9 ft [1.8 m] | |
| Product Length | 5.9 ft [1.8 m] | |
| Product Width | 0.8 in [2 cm] | |
| Product Height | 0.4 in [1 cm] | |
| SPECIAL NOTES / REQUIREMENTS | ||
| System and Cable Requirements | Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter. | |
| WHAT’S IN THE BOX | ||
| Included in Package | 1 – USB-C to DisiplayPort Cable | |
