Description

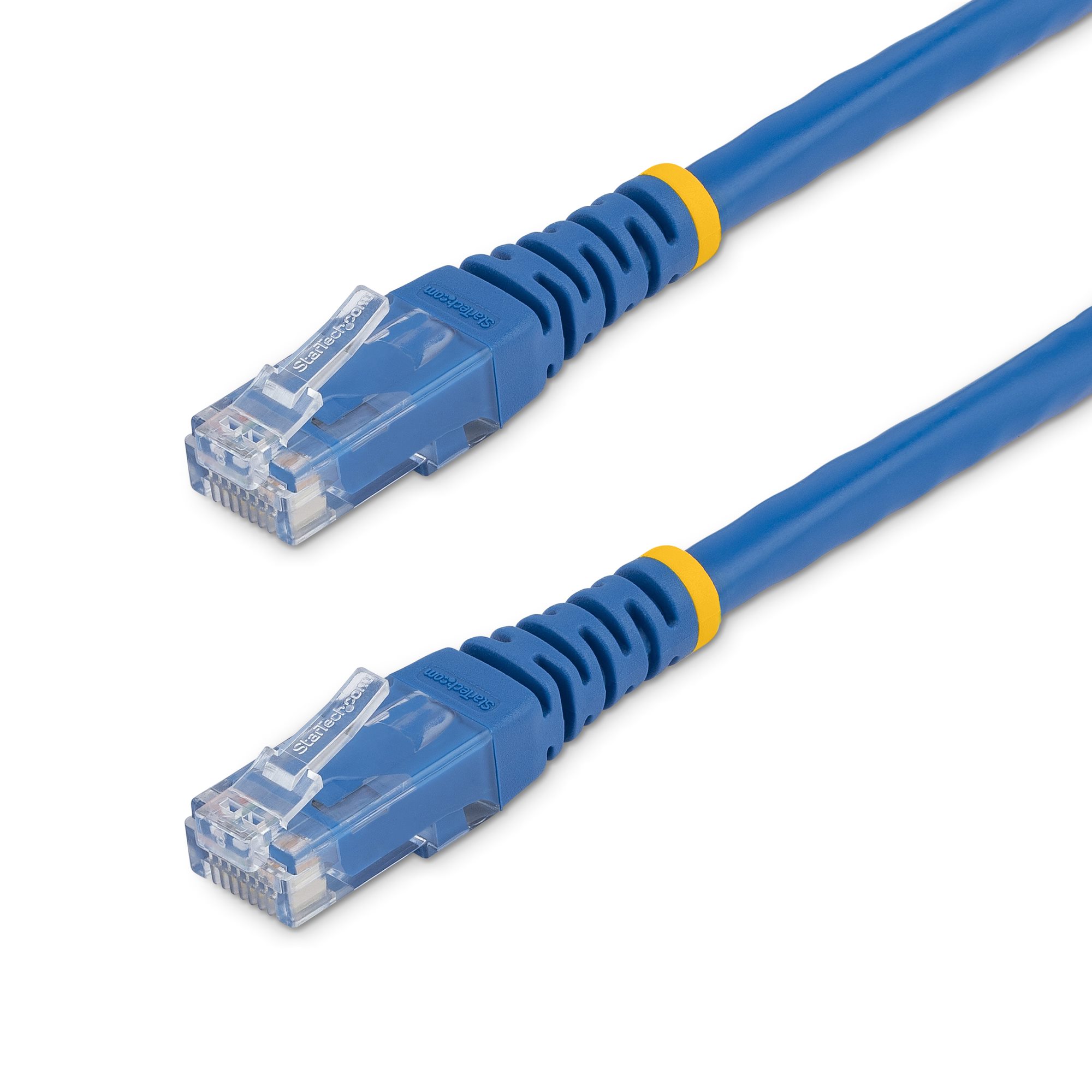

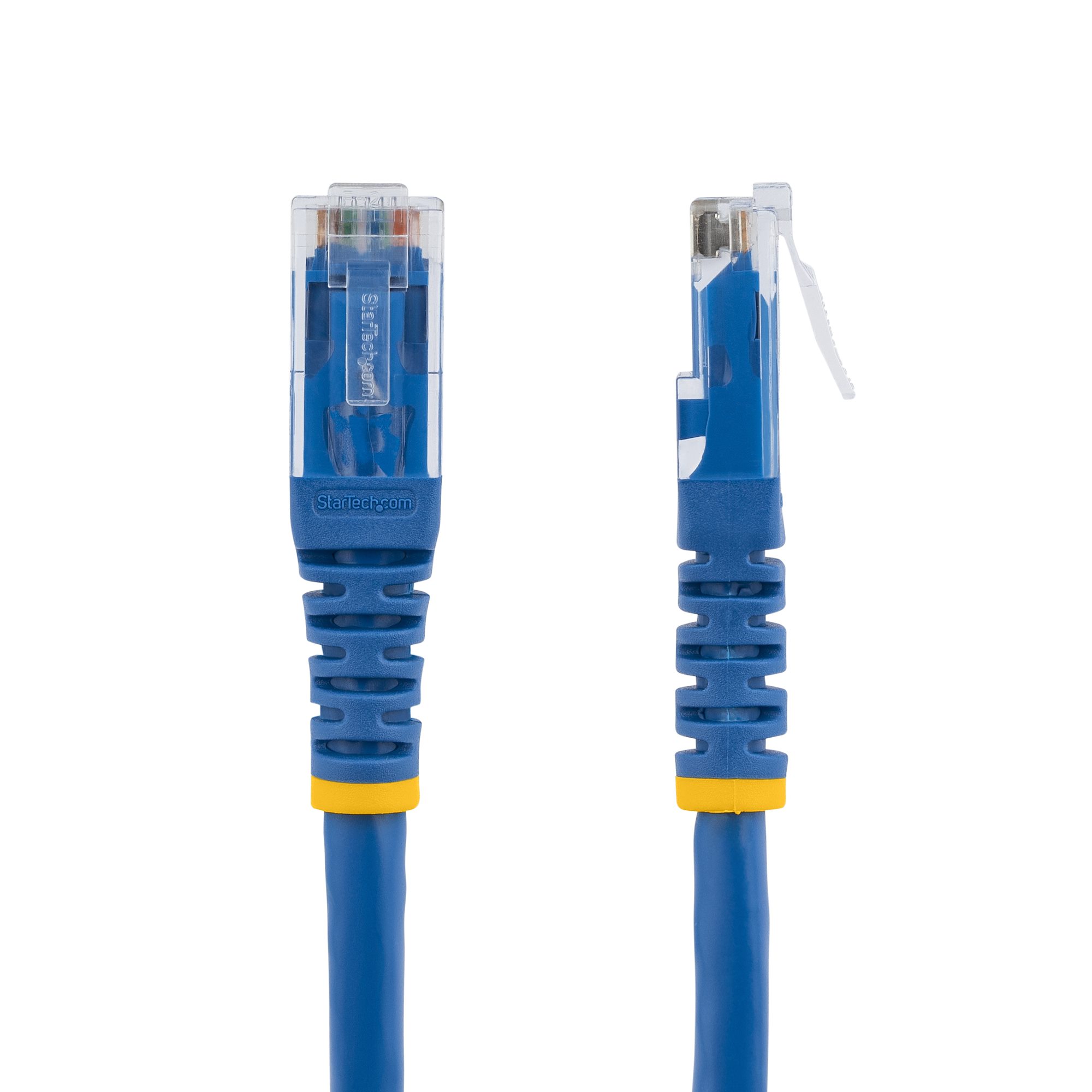

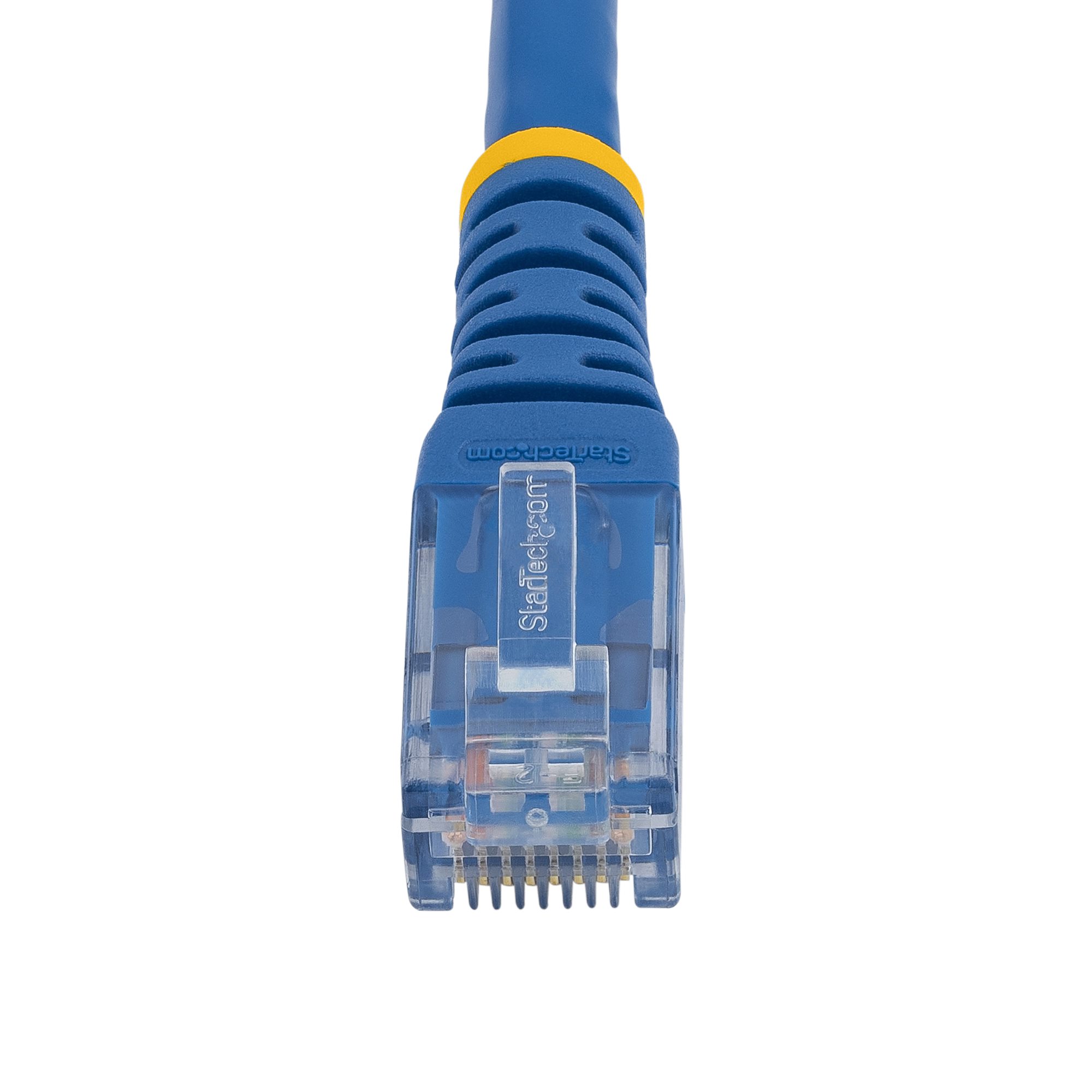

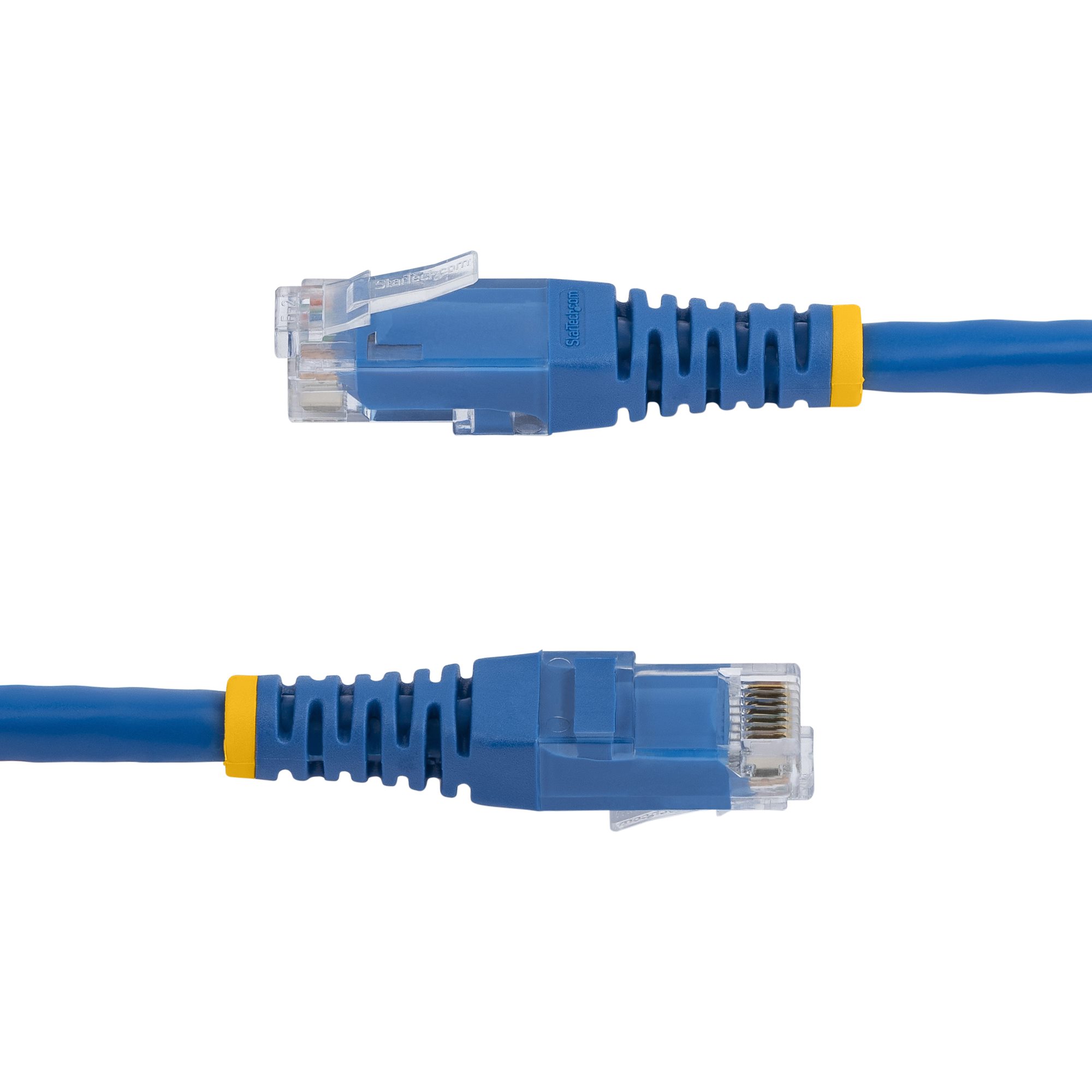

The C6PATCH1BL Cat 6 Patch Cable (1 ft) meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections, and features a durable blue PVC jacket that enables you to color code your network cable runs as needed.
To ensure long-lasting performance, this high quality Cat 6 patch cable features molded PVC strain relief that prevents the RJ45 connector termination points from bending at sharp angles – reducing the risk of cable damage, which could decrease network performance.
Constructed of only top quality materials, this Gigabit Patch Cable delivers reliable performance and is backed by our Lifetime Warranty.
100% Copper – a better value
StarTech.com Cat6 cables are manufactured using high-quality copper conductors. While many cable manufacturers offer a “cheaper” cable, based on a copper-coated aluminum core, we make no compromises on quality to ensure you receive top value and performance for your network cable investment.
24 AWG Wire
This Cat6 cable is constructed with 24 gauge copper wire, to support a broad range of Ethernet applications such as Power over Ethernet (PoE). Because we use a high quality copper wire, our cables easily sustain the power required for Power over Ethernet applications, whereas the inferior quality offered by copper-coated aluminum cables may be subject to insufficient power delivery, heat buildup, equipment damage and potentially, fire.
50-micron Gold Connectors
This molded patch cable offers high quality connectors comprised of 50-micron gold, to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
ETL Verified
Our Cat6 Ethernet Cables are ETL Verified to meet ANSI/TIA-568.2-D standards, ensuring peak performance for high-speed 10G applications. Independent testing confirms compliance with strict insertion loss, return loss, and crosstalk limits, maintaining stable signal transmission over longer runs. The STP shielding is verified for EMI resistance, for guaranteed reliability in demanding environments.
Technical Specifications
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | Lifetime | |
| CONNECTOR(S) | ||
| Connector A | 1 – RJ-45 | |
| Connector B | 1 – RJ-45 | |
| HARDWARE | ||
| Number of Conductors | 4 Pair UTP | |
| Cable Jacket Material | PVC – Polyvinyl Chloride | |
| Fire Rating | CMG Rated (General Purpose) | |
| Cable Type | Molded | |
| Wiring Standard | TIA/EIA-568-B.1-2001 T568B | |
| PACKAGING INFORMATION | ||
| Package Height | 0.6 in [1.5 cm] | |
| Package Length | 5.0 in [12.6 cm] | |
| Package Width | 7.7 in [19.6 cm] | |
| Shipping (Package) Weight | 1.1 oz [30.0 g] | |
| Package Quantity | 1 | |
| PERFORMANCE | ||
| ETL Verified | Yes | |
| Cable Rating | CAT6 – 650 MHz | |
| PHYSICAL CHARACTERISTICS | ||
| Weight of Product | 0.8 oz [23.0 g] | |
| Product Length | 1.0 ft [0.3 m] | |
| Cable Length | 1.0 ft [0.3 m] | |
| Color | Blue | |
| Wire Gauge | 24 AWG | |
| Conductor Type | Stranded Copper | |
| WHAT’S IN THE BOX | ||
| Included in Package | 1 – 1 ft. Cat6 Patch Cable – Blue | |
