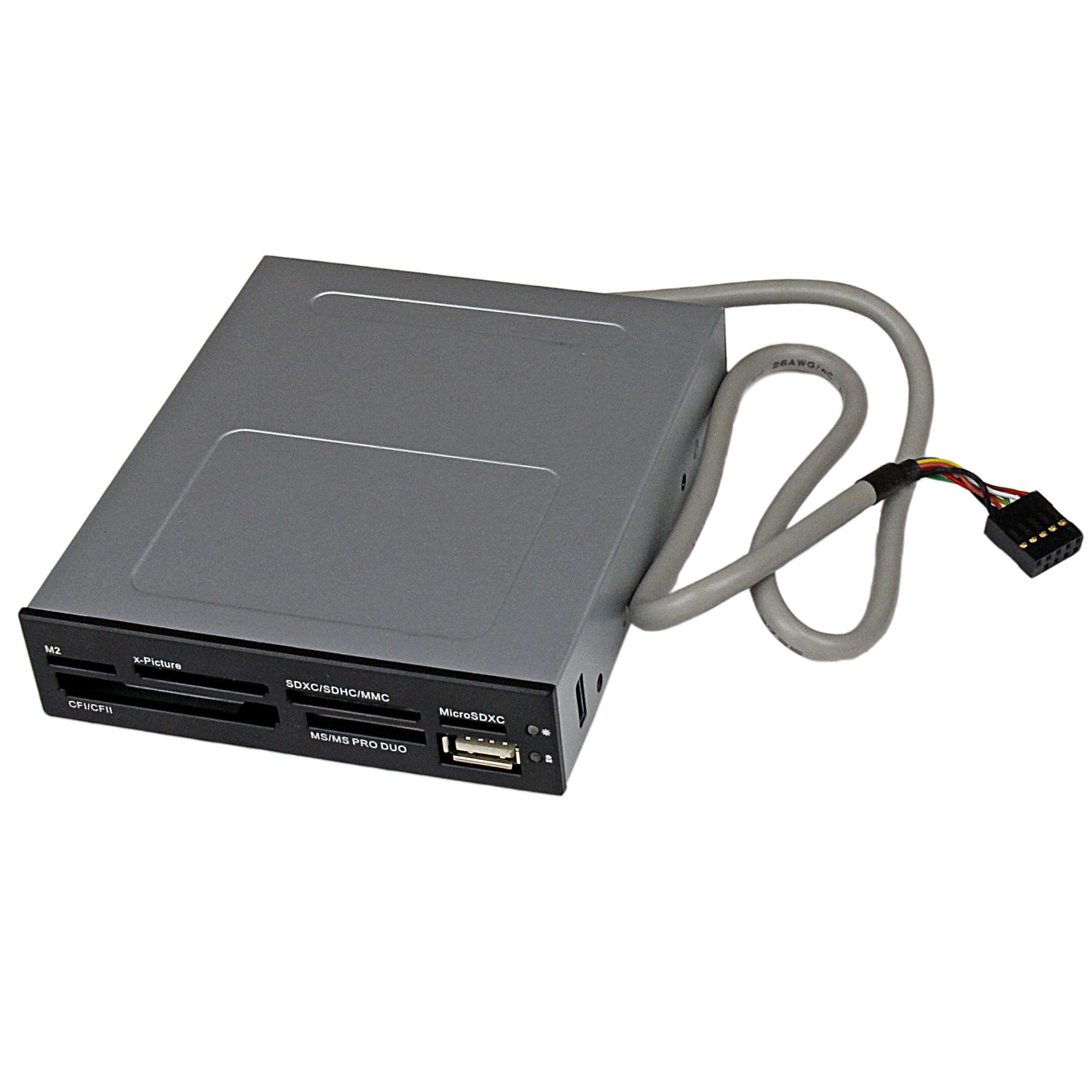

Description
Applications
- Photographers who need to regularly transfer files from their camera memory card to a computer
- Transferring files to and from a variety of portable devices, each using a different memory card format
The StarTech.com Advantage
- Able to read all of the popular memory card formats, from a single reader, via an internal USB connection
- Guaranteed reliability, with a StarTech.com 2-year warranty and free lifetime technical support
Technical Specifications
| WARRANTY INFORMATION | ||
| Warranty | 2 Years | |
| CONNECTOR(S) | ||
| Connector Type(s) | 1 – IDC (10 pin, Motherboard Header) | |

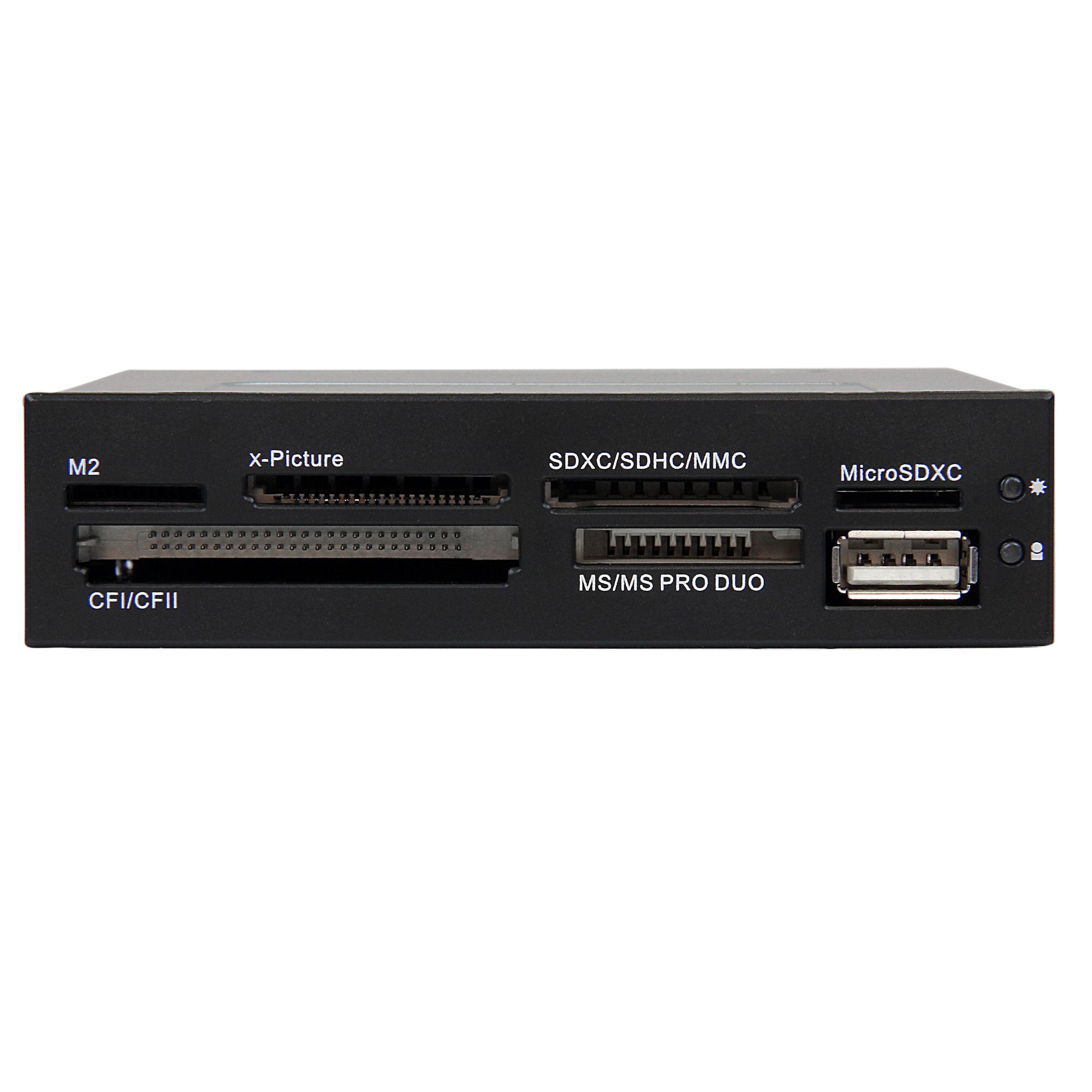

| External Ports |
1 – CompactFlash (50 pin) Slot
1 – USB 2.0 Type-A (4 pin, 480Mbps)
1 – MiniSD / MicroSD / MMC Slot
1 – Memory Stick / Memory Stick Pro Slot
1 – Memory Stick Micro (M2) Slot
1 – SD / MMC Slot
1 – xD-Picture Card Slot
|
|
| ENVIRONMENTAL | ||
| Operating Temperature | 0°C to 70°C (32°F to 158°F) | |
| Storage Temperature | -40°C to 125°C (-40°F to 257°F) | |
| Humidity | 15~85% | |
| HARDWARE | ||
| Chipset ID | ITE – 1336 | |
| INDICATORS | ||
| LED Indicators | 1 – Power/Activity | |
| PACKAGING INFORMATION | ||
| Package Height | 3.6 cm [1.4 in] | |
| Package Length | 16.2 cm [6.4 in] | |
| Shipping (Package) Weight | 264.0 g [9.3 oz] | |
| Package Width | 14 cm [5.5 in] | |
| Package Quantity | 1 | |
| Performance | ||
| Max Drive Capacity | Currently tested with up to 256GB microSD cards | |
| Memory Media Type |
CF (Compact Flash I Card)
RS-MMC (Reduced Size Multimedia Card)
SD/MMC (Secure Digital/Multimedia Card)
SDHC (Secure Digital High Capacity)
SDXC (Secure Digital eXtended Capacity)
HS-MMC, HC-MMC (High Speed/High Capacity Multimedia Card)
HS-MS (High Speed Memory Stick)
M2 (Memory Stick Micro)
microSDHC (Micro Secure Digital High Capacity)
Mini-SD, Micro-SD (Mini/Micro Secure Digital)
MS Duo, MS Pro Duo, MS Pro-HG Duo
xD (Extreme Digital) Picture Card
Memory Stick
Multi Media Card
|
|
| PHYSICAL CHARACTERISTICS | ||
| Weight of Product | 211 g [7.4 oz] | |
| Color | Black | |
| Material | Steel and Plastic | |
| Product Length | 13 cm [5.1 in] | |
|
Product Width
|
10.5 cm [4.1 in] | |
| Product Height | 2.5 cm [1.0 in] | |
| POWER | ||
| Power Source | USB-Powered | |
| Input Voltage | 5V DC | |
| Output Voltage | 5 DC | |
| SOFTWARE | ||
| OS Compatibility | OS independent; No software or drivers required | |
| SPECIAL NOTES / REQUIREMENTS | ||
| System and Cable Requirements | Available internal 9-pin USB motherboard header | |
| Note | Simultaneous card access is limited to different media card types | |

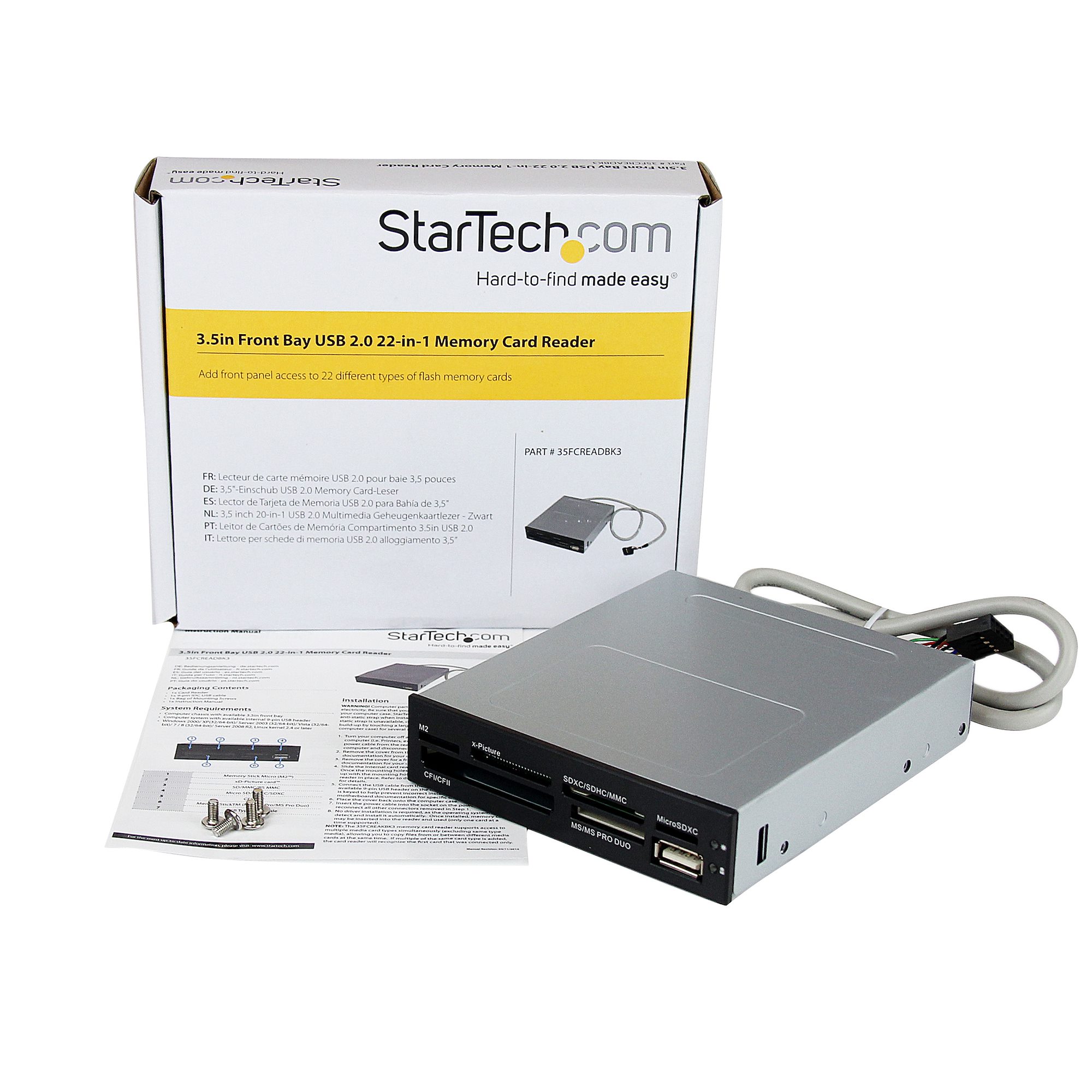

| WHAT’S IN THE BOX | ||
| Included in Package |
1 – Card Reader

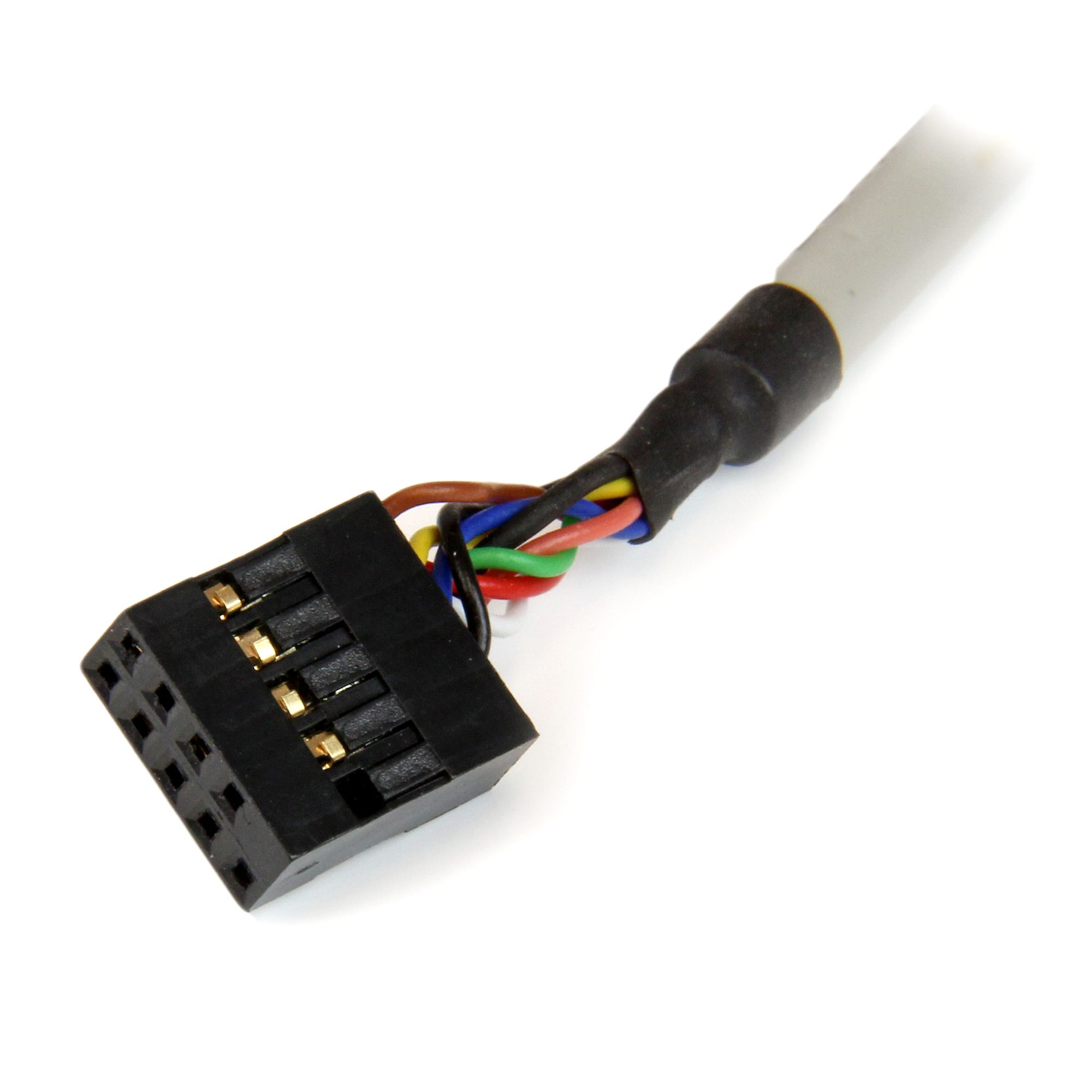

1 – 9-pin IDC USB cable
1 – Bag of Mounting Screws
1 – Instruction Manual
|
|
