Description
Product Description

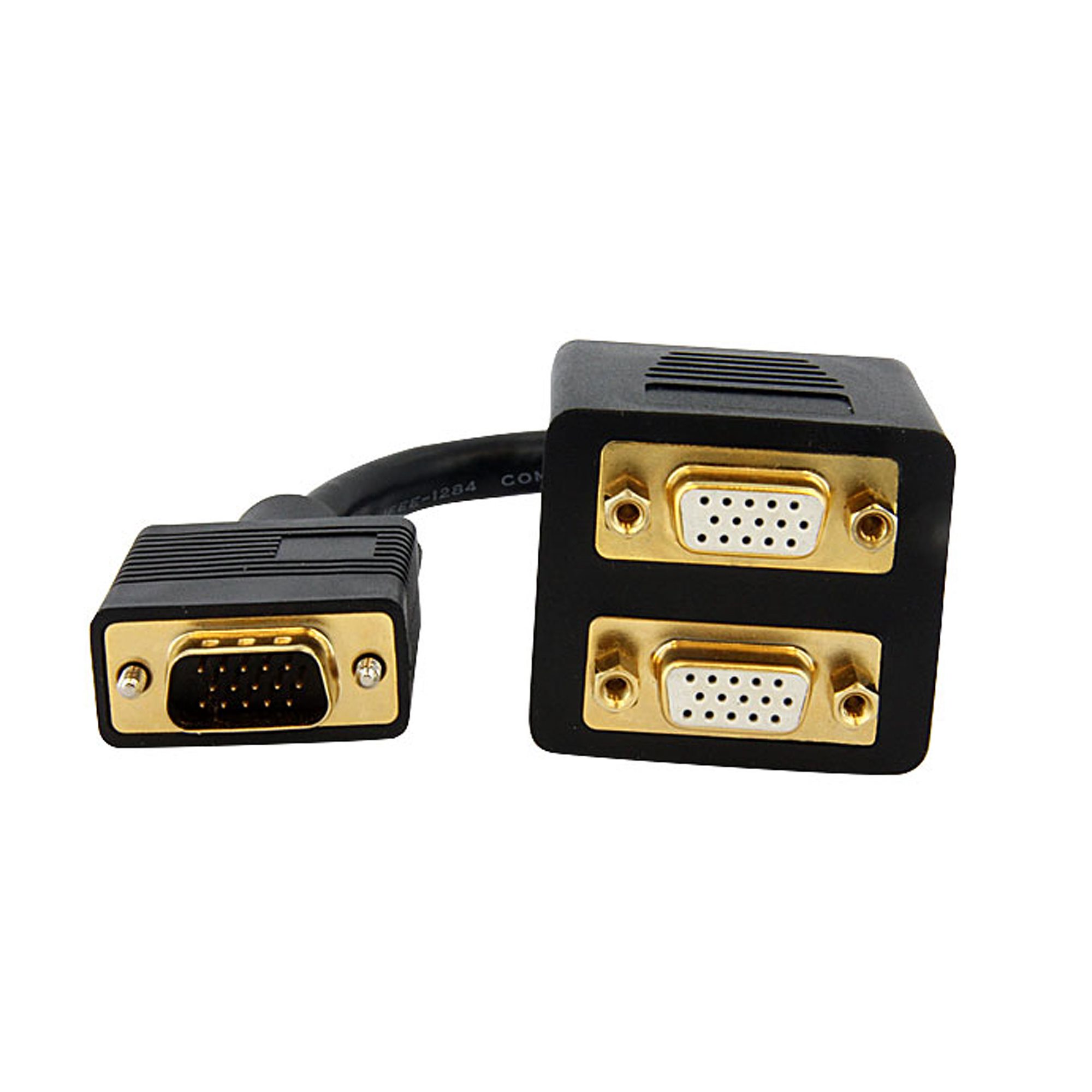

This VGASPL1VV 1-foot VGA video splitter cable lets you connect two VGA displays to a single VGA video source.
A cost-effective solution for dual VGA monitor configurations, this high-quality splitter cable is backed by StarTech.com’s Lifetime Warranty.
Applications
- Drive two displays from one source using just a cable
- Easily enable one VGA signal to be connected to two displays
The StarTech.com Advantage
- Split your VGA signal to two monitors without a separate splitter box
- Backed by StarTech.com lifetime warranty
Technical Specifications
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | Lifetime | |
| CONNECTOR(S) | ||
| Connector A | 1 – VGA (15 pin, High Density D-Sub) | |
| Connector B | 2 – VGA (15 pin, High Density D-Sub) | |
| HARDWARE | ||
| Number of Conductors | 15 | |
| Connector Plating | Gold | |
| Cable Jacket Material | PVC – Polyvinyl Chloride | |
| Cable Shield Material | Aluminum-Mylar Foil with Braid | |
| Fire Rating | CMG Rated (General Purpose) | |
| PACKAGING INFORMATION | ||
| Package Height | 1.7 in [4.4 cm] | |
| Package Length | 6.3 in [16.0 cm] | |
| Shipping (Package) Weight | 5.6 oz [158.0 g] | |
| Package Width | 5.0 in [12.6 cm] | |
| Package Quantity | 1 | |
| PERFORMANCE | ||
| Maximum Digital Resolutions | 2048×1536 @ 85Hz | |
| PHYSICAL CHARACTERISTICS | ||
| Weight of Product | 5.6 oz [159.0 g] | |
| Product Width | 1.6 in [4.1 cm] | |
| Product Height | 1.5 in [3.7 cm] | |
| Color | Black | |
| Wire Gauge | 28 AWG | |
| Max Connector Dimension | 1.6 in [41 mm] | |
| Cable Length | 8.2 in [20.8 cm] | |
| Cable OD | 0.4 in [9.0 mm] | |
| Product Length | 12.3 in [31.2 cm] | |
| SPECIAL NOTES / REQUIREMENTS | ||
| Note | This product will split your video signal to deliver two identical images of the same resolution. It cannot be used to span an image across two displays, or to show different images on each display. | |
| WHAT’S IN THE BOX | ||
| Included in Package | 1 – 1 ft VGA to 2x VGA Video Splitter Cable – M/F | |
