Description
Upgrade to breathtaking NVMe speed
It’s time to maximize your PC’s potential with the 980. Whether you need a boost for gaming or a seamless workflow for heavy graphics, the 980 is the smart choice for outstanding SSD performance, and it’s all backed by an NVMe interface and PCIe 3.0 technology.
Packed with speed
Get right to it. The 980 harnesses nearly all the speed advantages of PCIe 3.0 through HMB technology and dramatic NVMe efficiency. The DRAM-less design delivers exceptional value, achieving high-speed sequential read/write speeds up to 3,500/3,000 MB/s, over 6.2x the speed of SATA SSDs.
Packed with speed
Get right to it. The 980 harnesses nearly all the speed advantages of PCIe 3.0 through HMB technology and dramatic NVMe efficiency. The DRAM-less design delivers exceptional value, achieving high-speed sequential read/write speeds up to 3,500/3,000 MB/s, over 6.2x the speed of SATA SSDs.
Built for the long run
Keep your SSD running at peak level for nonstop, consistent high performance with Full Power Mode. Switch it on through Samsung Magician software to always keep your SSD in active mode. Jump right back to intensive work with huge files, graphics-heavy games, or even normal PC usage.

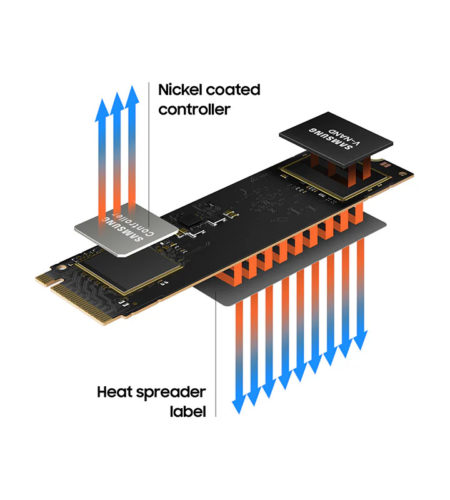

Reliable thermal control
High-performance SSDs usually require high-performance thermal control. To ensure stable performance, the 980 uses nickel coating to help manage the controller’s heat level and a heat spreader label to deliver effective thermal control of the NAND chip.
Smart thermal solution
Embedded with Samsung’s cutting-edge thermal control algorithm, the 980 manages heat on its own to deliver durable and reliable performance. To minimize performance fluctuations in the long haul, Samsung’s Dynamic Thermal Guard technology maintains the 980’s temperature at optimal levels.

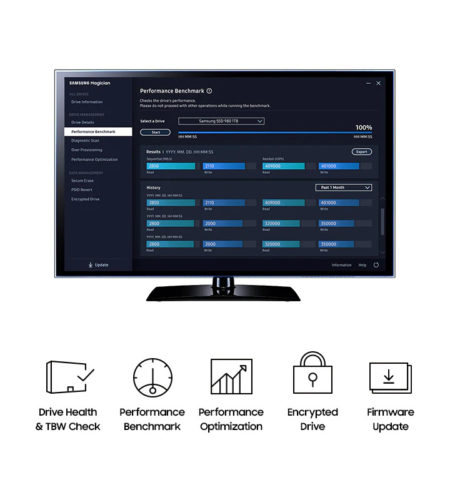

Samsung Magician software
Unlock the full power of the 980 with Samsung Magician’s intuitive yet advanced optimization tools. Monitor drive health, optimize performance, protect valuable data, and receive important updates with Magician to ensure you’re always getting the best performance out of your SSD.
World’s No. 1 Flash Memory
Experience superb performance and reliability that you can only get from the world’s number one brand for flash memory since 2003. All firmware and components, including Samsung’s world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.
Product Specs
| Model Number | MZ-V8V250B/AM |
| Brand | Samsung 980 |
| Capacity | 250GB |
| Form Factor | M.2 (2280) |
| Interface | PCIe Gen 3.0 x4, NVMe 1.4 |
| Application | Client PCs |
|
Performance |
|
| Sequential Read | Up to 2,900 MB/s |
| Sequential Write | Up to 1,300 MB/s |
| Random Read (4KB, QD32) | Up to 230,000 IOPS |
| Random Write (4KB, QD32) | Up to 320,000 IOPS |
| Random Read (4KB, QD1) | Up to 17,000 IOPS |
| Random Write (4KB, QD1) | Up to 53,000 IOPS |
|
Technical Specifications |
|
| Controller | Samsung In-house Controller |
| Storage Memory | Samsung V-NAND 3-bit MLC |
| Cache Memory | HMB (Host Memory Buffer) |
|
Physical Specifications |
|
| Dimensions | 80.15 x 22.15 x 2.38 mm |
| Weight | Max 8.0 g |
|
Environmental |
|
| Operating Temperature | 0 – 70°C |
| Power Consumption (Average) | 3.7W (Maximum: 5.6W Burst) |
| Power Consumption (Idle) | Max. 45 mW |
| Allowable Voltage | 3.3 V ± 5% |
| Shock | 1,500 G & 0.5 ms (Half sine) |
| MTBF | 1.5 Million Hours |
|
Features |
|
| TRIM Support | Supported |
| S.M.A.R.T Support | Supported |
| Garbage Collection | Auto Garbage Collection Algorithm |
| Encryption Support | AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 |
| Device Sleep Mode | Yes |
| WWN Support | Not supported |
|
Software & Warranty |
|
| Management Software | Magician Software for SSD management |
| Warranty | 5-Year Limited Warranty or 150 TBW |
