Description
The ThinkPad Universal USB-C Dock is a welcome innovation docking solution that takes users beyond tradition and into the realm of limitless potential. Experience universal compatibility with dynamic power charging max as 100 W to notebooks, automated firmware updates and next-level plug-and-play. Everything you’d want from the future of docking is here. It’s perfect for mixed PC environments too, giving user’s the freedom to connect any PC that supports industry standards of USB-C connectivity.
One Dock. No Limits
Engineered for performance, the ThinkPad Universal USB-C Dock quickly pays for itself with increased productivity, enhanced dynamic power charging to Notebook, max 100W charging. If you can think it, your dock can do it
One Cable. No Hassle

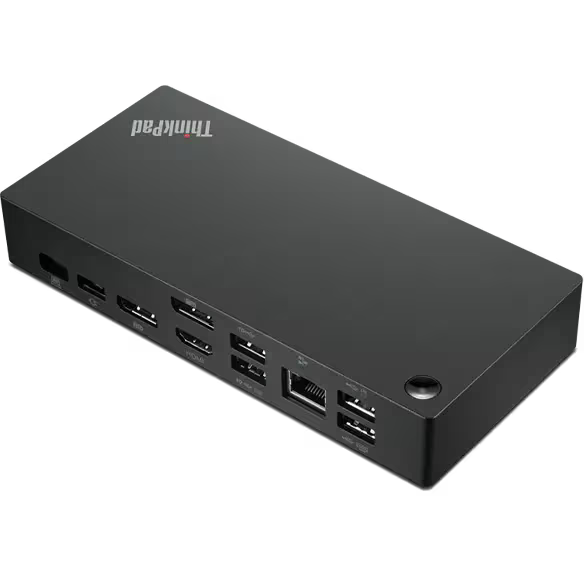

With 11+ thoughtfully placed ports, the ThinkPad Universal USB-C Dock delivers unmatched performance while decluttering your desk
Entire Fleet. One Manager
The ThinkPad Universal USB-C Dock comes packed with basic and advanced solutions engineered to make managing an entire fleet of docks effortlessly efficient. It could support traditional IT tools like: PXE boot, WOL, and MAC address Pass Through on ThinkPad Notebooks, but also provide silent firmware updates. Silent reboots. Remote device queries. It’s an IT manager’s dream
DISCLAIMER: Lenovo USB-C & Thunderbolt Docks function with notebooks that support industry standard USB-C Alt-Mode or Thunderbolt protocols through their Type C port. Lenovo USB-C and Thunderbolt Docks support additional features, such as MAC address passthrough, WOL and mirrored power button, on most Lenovo ThinkPad notebooks, but such features may not be available on certain other Lenovo notebooks or non-Lenovo branded notebook systems.
Product Specs
| Brand | ThinkPad |
| Color | Black |
| Weight | 388g (0.86 lbs) |
| OS Requirements | OS Independent |
| Driver Required | Yes |
Physical Dimensions
| Device Dimensions | 171 x 80 x 30.75mm (6.73 x 3.15 x 1.21 in) |
| Package Dimensions | 210 x 158 x 75mm (8.27 x 6.22 x 2.95 in) |
| Package Weight | 955g (2.11 lbs) |
| Package Type | Brown Box |
Display & Video Output
| Max External Monitors | 3 Monitors |
| Maximum Resolution | 2 x 3840×2160 @60Hz, 1 x 3840×2160 @30Hz |

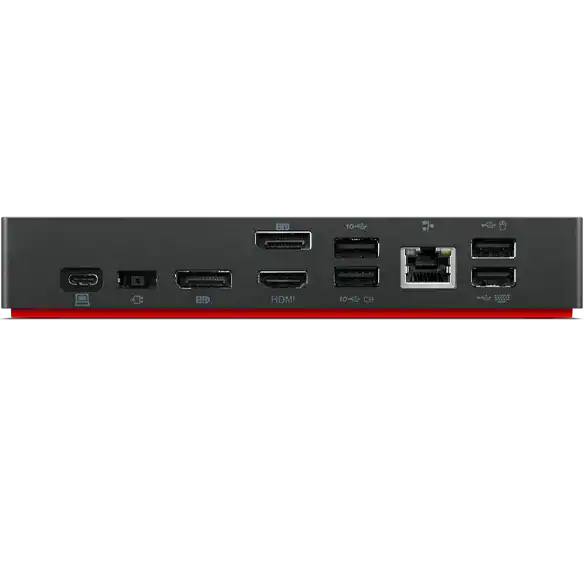

| Video Ports | 2 x DisplayPort, 1 x HDMI Port |
Connectivity & Ports
| USB Ports | 3 x USB-A 3.2 Gen 2, 2 x USB 2.0, 1 x USB-C 3.2 Gen 2 |
| Ethernet | 1 x Gigabit Ethernet |
| Audio Ports | 1 x Combo Audio Jack |
| Charging Port | DC-IN |
| AC Plug | Slim-tip |
Power Specifications
| Input Power | 135W |
| Output Power | 65W with 90W adapter, 100W with 135W adapter |
| Power Delivery | Yes |
| Power Button | Yes |
Environmental Conditions
| Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Relative Humidity | 20% to 95% (no condensation) |
Security & Warranty
| Warranty Period | 3 Years |
| Warranty Type | CRU (Customer Replaceable Unit) |
| Physical Security | 2 x Security Lock Slots |
| Certifications | FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV-Mark, Serbia Kvalitet, LoA, Israel SII, Ukraine DoC, NOM |
