Description
Less costs, less headaches, more purpose

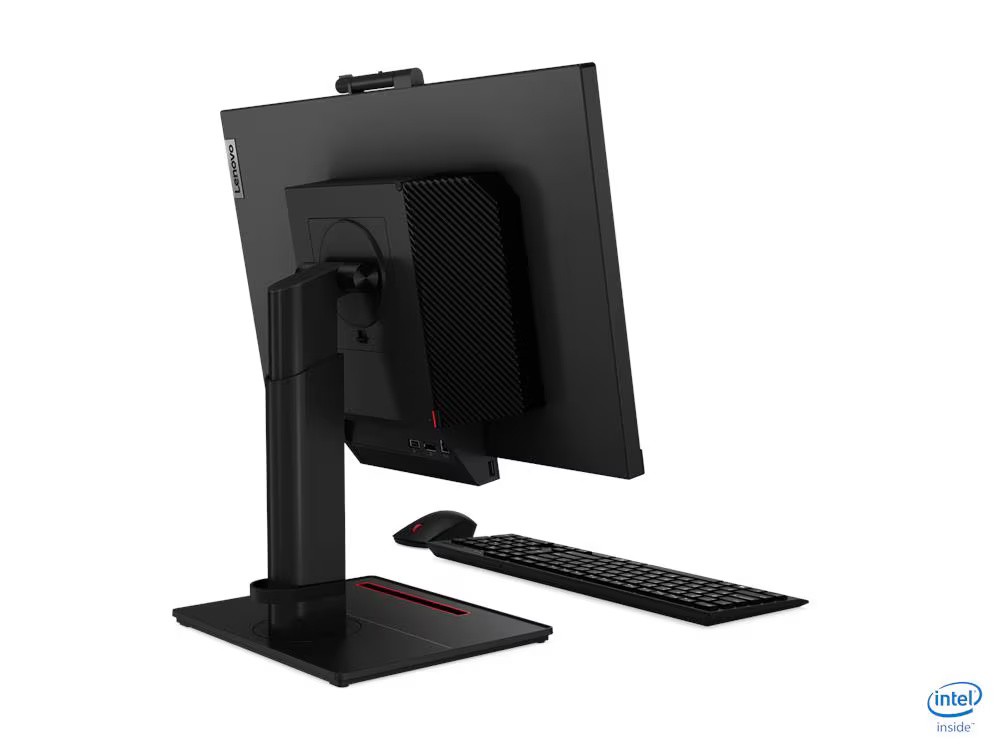

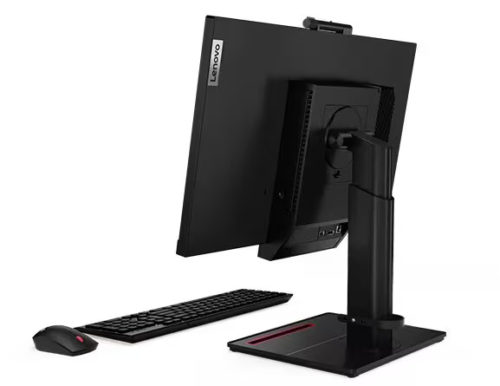

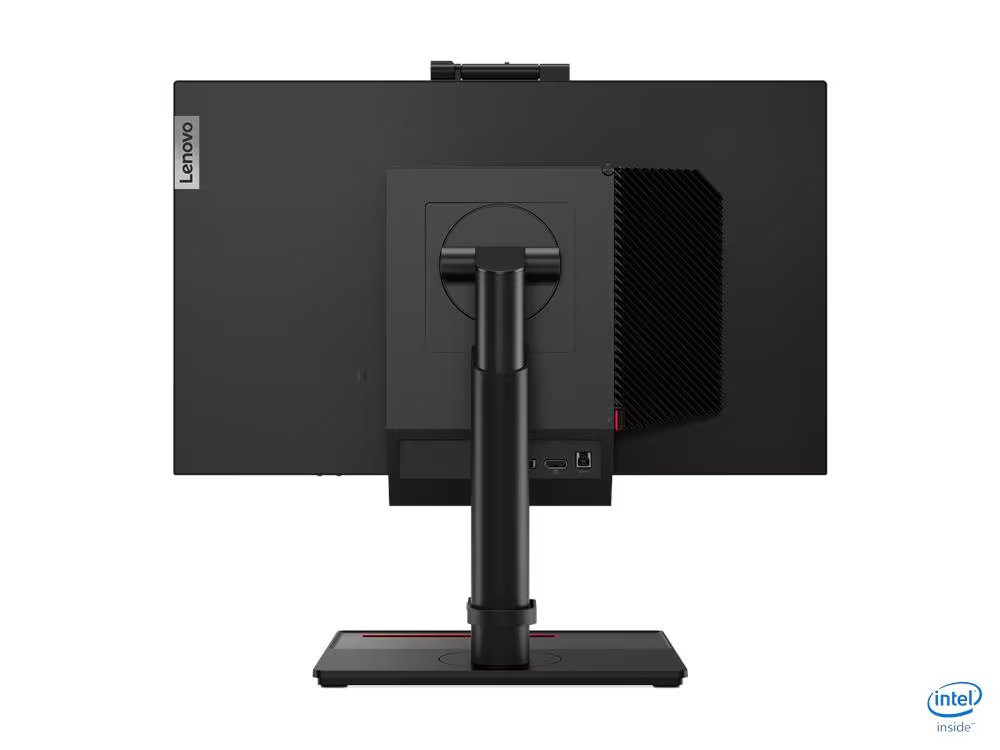

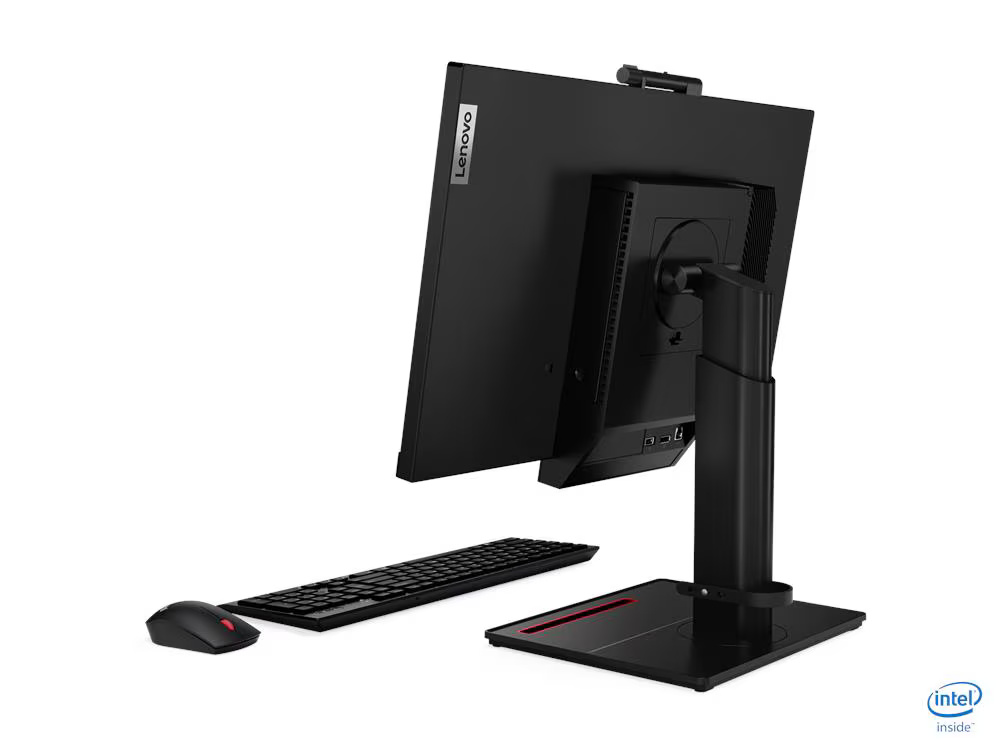

The TIO24 Gen 4 is compatible with Gen 2 and up ThinkCentre M Series Tiny PCs, Nano, and Thin Clients. Simply tuck the model of your choice into the back of the display, and within seconds you’ll have a modular solution—not to mention deployment cost savings. You’ll even enjoy improved performance from your PC units as TIO24 Gen 4 is equipped with a new back cover that improves heat dissipation.

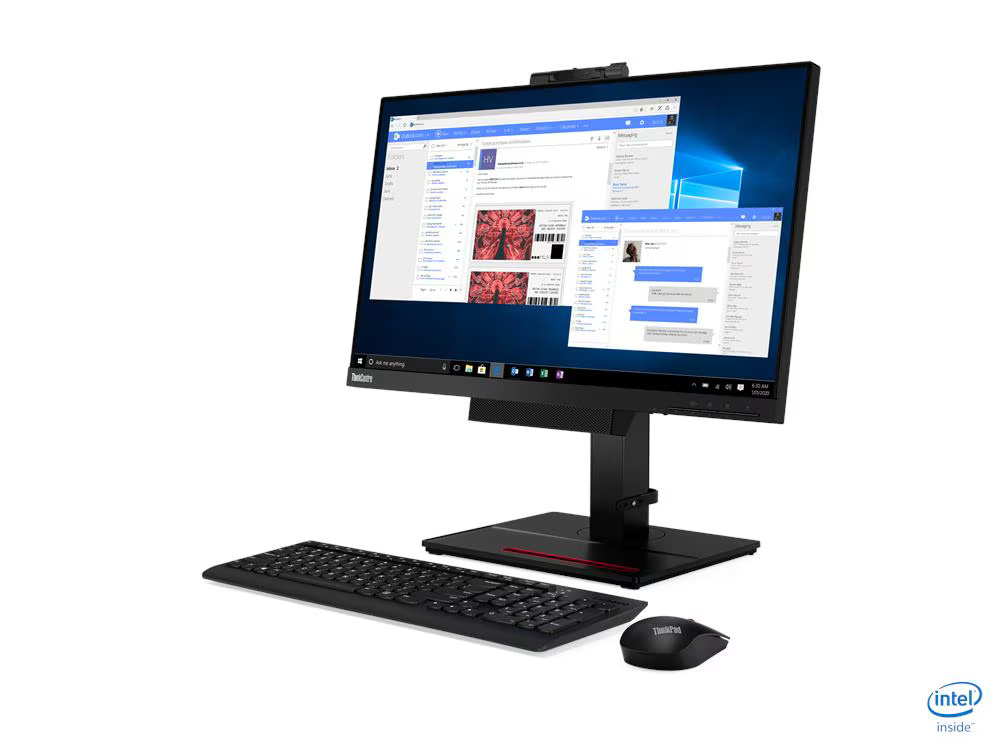

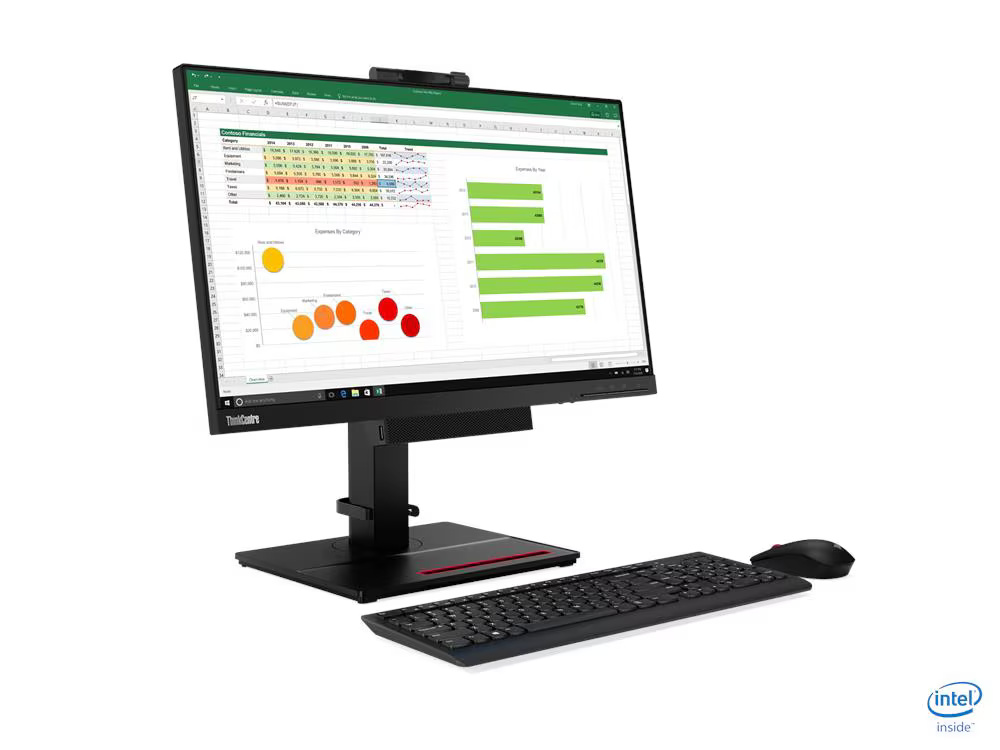

Shown with wireless keyboard and mouse sold separately
Upgrade on your terms
Keep your current PCs and all of their data and operating systems, while upgrading to the TIO24 Gen 4’s impressive features. Because they are separate modules, the PC and monitor can be changed independently of one another—unlike traditional all in one systems, where the CPU is integrated with the display.
Clean display for a clean workplace

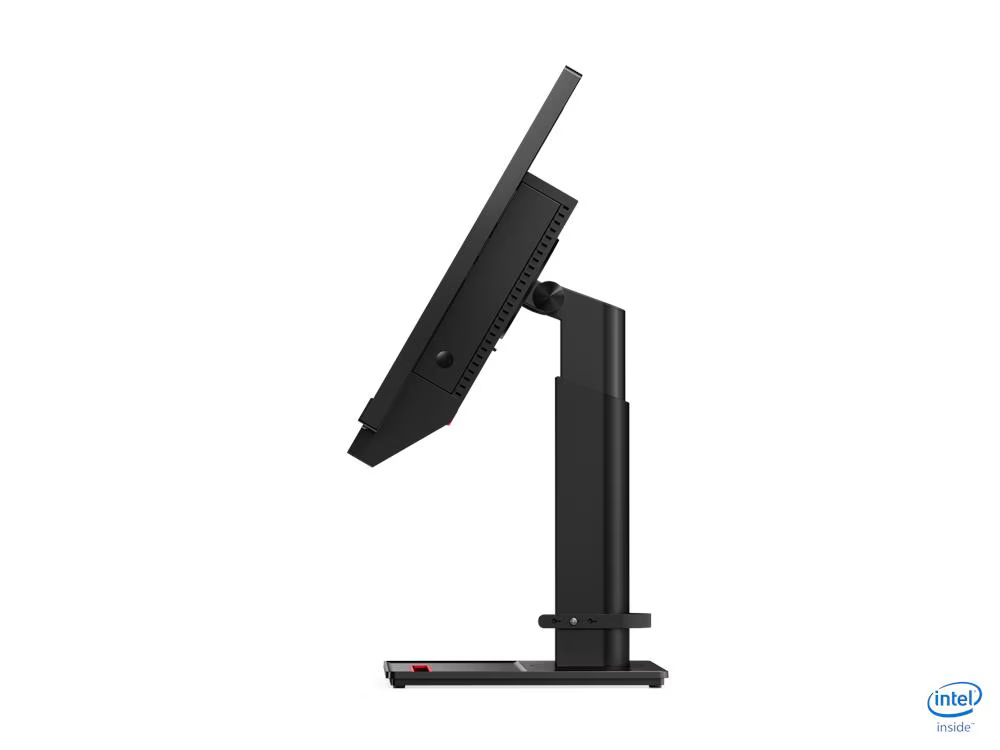

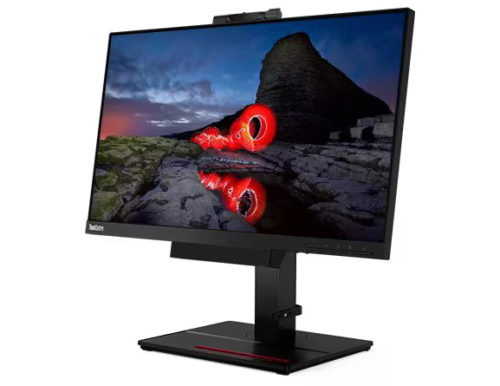

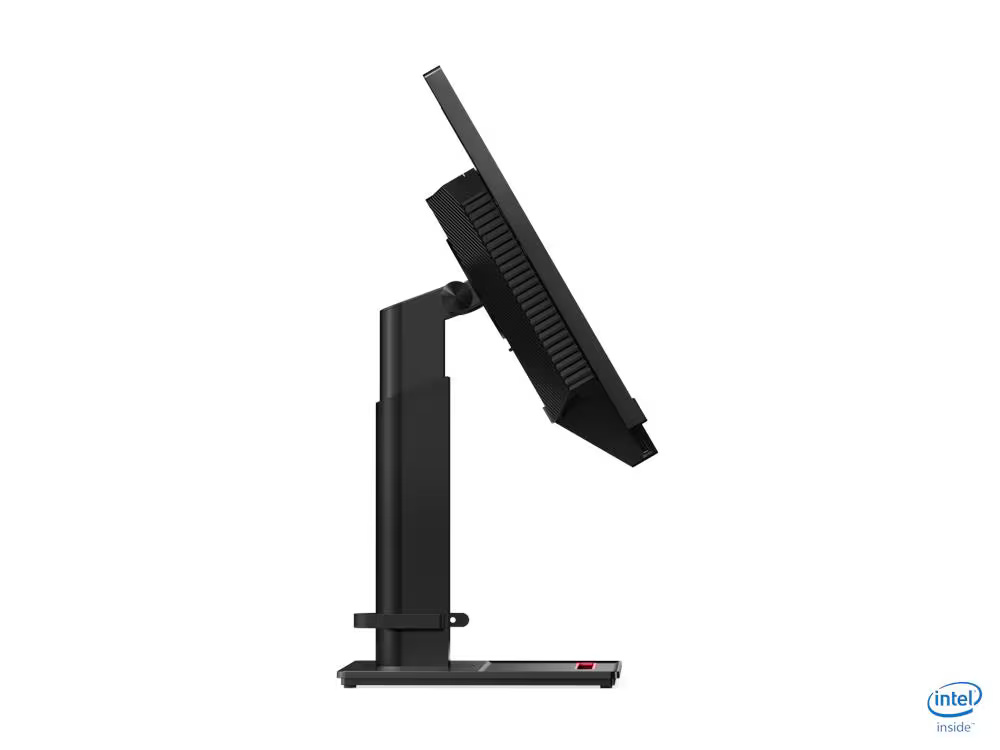

With its three-sided borderless 24 inch FHD display, the TIO24 Gen 4 monitor is a crowd pleaser. It keeps your work area neat and tidy with a higher lift height, saving 18% more space than the previous generation, as well as tilt, pivot, and swivel to maximize comfort. Even store your mobile phone in the convenient phone holder, while the side USB-A 3.2 port provides a speedy connection for any peripherals you need to utilize.
Stay well connected

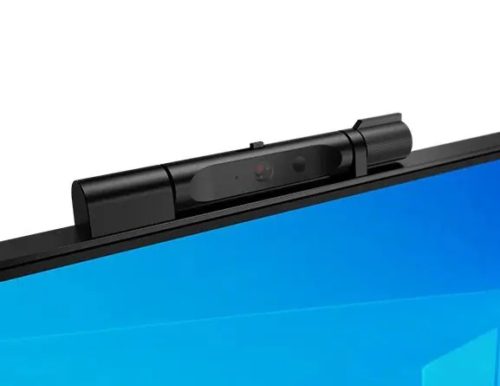

Collaborate like a boss with the TIO24 Gen 4. It’s equipped with an improved 1080p webcam with optional RGBIR, which provides brighter resolution even in poorly lit rooms. So, colleagues and clients get a great view of your face during video calls, night and day, like they’re in the room with you. It’s also equipped with a dual microphone for VOIP so your colleagues can hear you clearly.
Product Specs
| PERFORMANCE | ||
|---|---|---|
| Display Size | 23.8″ | |
| View Area | 527 x 296.5 mm (20.75 x 11.67 inches) | |
| Panel | In-Plane Switching | |
| Aspect Ratio | 16:9 | |
| Resolution | 1920×1080 | |
| Pixel Pitch | 0.2745 x 0.2745 mm | |
| Dot / Pixel Per Inch | 92.6 dpi | |
| View Angle (H / V) | 178° / 178° | |
| Response Time | 4ms (Extreme mode) / 6ms (Typical mode) / 14ms (Off mode) | |
| Color Support | 16.7 Million | |
| Refresh Rate | 60Hz | |
| Brightness | 250 cd/m² | |
| Contrast Ratio | 1000:1 | |
| Color Gamut | 72% NTSC | |
| Screen Surface Treatment | Anti-glare | |
| Curvature | None | |
| Camera | FHD 1080p | |
| Microphone | Dual Microphone | |
| Speakers | 2Wx2, Stereo Speakers | |
| Power Consumption (Typical / Maximum) | 15W / 27W | |
| Power Adapter | 90W 88% | |
| Touchscreen | 10-point Multi-touch | |
| Smart System | None | |
| DESIGN | ||
| Stand | Tilt, Swivel, Pivot, Height Adjust Stand | |
| Case Color | Black | |
| Side Bezel Width | 2 mm | |
| ThinkCentre M Series Support | Tiny Support | |
| Pen | None | |
| CONNECTIVITY | ||
| USB Port | USB 3.1 Gen 1 (only available when a Tiny is installed or a PC is connected) | |
| Video Connector | 1x DP 1.2 | |
| Network Connectivity | None | |
| SERVICE | ||
| Base Warranty | 3-year | |
| CERTIFICATIONS | ||
| Environmental Certification | ENERGY STAR® Certified, TCO 8.0, TCO Edge 2.0, EPEAT™ Silver, RoHS | |
| Ergonomic Certification | TÜV Rheinland® Low Blue Light, TÜV Rheinland Flicker Free, TÜV Rheinland Eye Comfort | |
| Sync Technology | None | |
| SOFTWARE | ||
| Operating System | Support Windows® 7, Windows 10, Windows 11 | |
| ACCESSORIES | ||
| Video Cables | Undetachable 3-in-1 cable, embedded into TIO, connects to the I/Os of Tiny (Power connector, USB [supports USB 3.1 Gen 1 / USB 2.0], DisplayPort™™) | |
| MODEL INFORMATION | ||
| Product | ThinkCentre® Tiny-In-One 24 Gen 4 Touch | |
| Model | 11GCPAR1US | |
| Machine Type | 11GC | |
| Region | NA | |
| EAN / UPC / JAN | 0194778249430 / 194778249430 / None | |
| Announce Date | 2020-06-08 | |
