Description

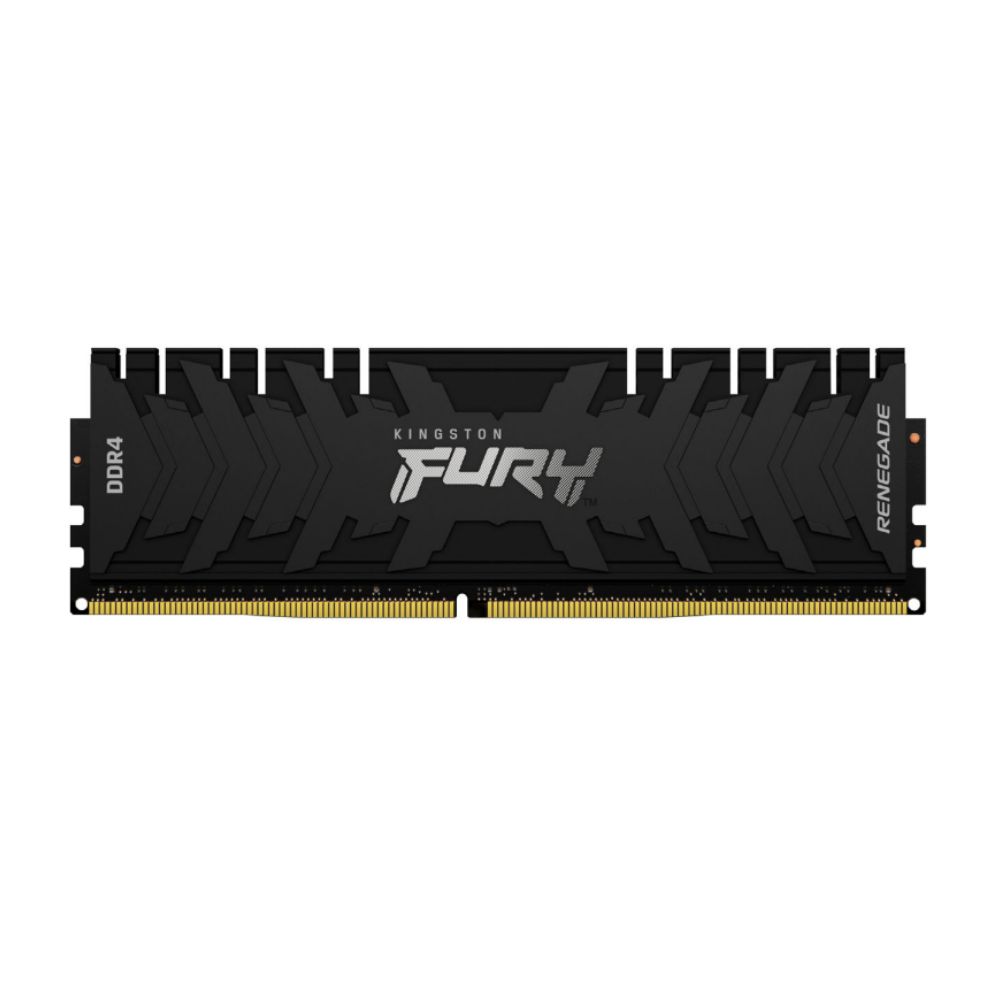

Kingston FURY KF432C16RBK4/32 is a kit of four 1G x 64-bit (8GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Total kit capacity is 32GB. Each module has been tested to run at DDR4-3200 at a low latency timing of 16-18-18 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
| CL(IDD) | 17 cycles |
| Row Cycle Time (tRCmin) | 45.75ns (min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 350ns (min.) |
| Row Active Time (tRASmin) | 32ns (min.) |
| UL Rating | 94 V – 0 |
| Operating Temperature | 0°C to +85°C |
| Storage Temperature | -55°C to +100°C |
Product Features
| Power Requirements | VDD = 1.2V Typical VDDQ = 1.2V Typical VPP = 2.5V Typical VDDSPD = 2.2V to 3.6V |
| Performance & Speed | 16 internal banks; 4 groups of 4 banks each 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4 (Burst Chop) Bi-Directional Differential Data Strobe |
| Technical Features | On-Die Termination (ODT) Height 1.66″ (42.2mm) with heatsink |
