Description
| M/B Form Factor | ATX (12″ x 9.6″), CEB (12″ x 10.5″), EEB (12″ x 13″) |
|---|---|
| Drive Bay | External: 5.25″ x 4, 3.5″ x 1 Internal: 2.5″/3.5″ x 5 |
| Power Supply | Supports: – 1250W PS2 single PSU, 80 Plus Gold – 550W/800W/1200/1600W 1+1 CRPS, 80 Plus Platinum |
| Indicators | Power status, HDD, LANs, system fail activity LEDs, ID |
| Front Control Panel | Power switch, system reset, USB 3.0 x 2 |
| Chassis Security | Supports padlock loop and Kensington lock slot Intrusion switch (optional) |

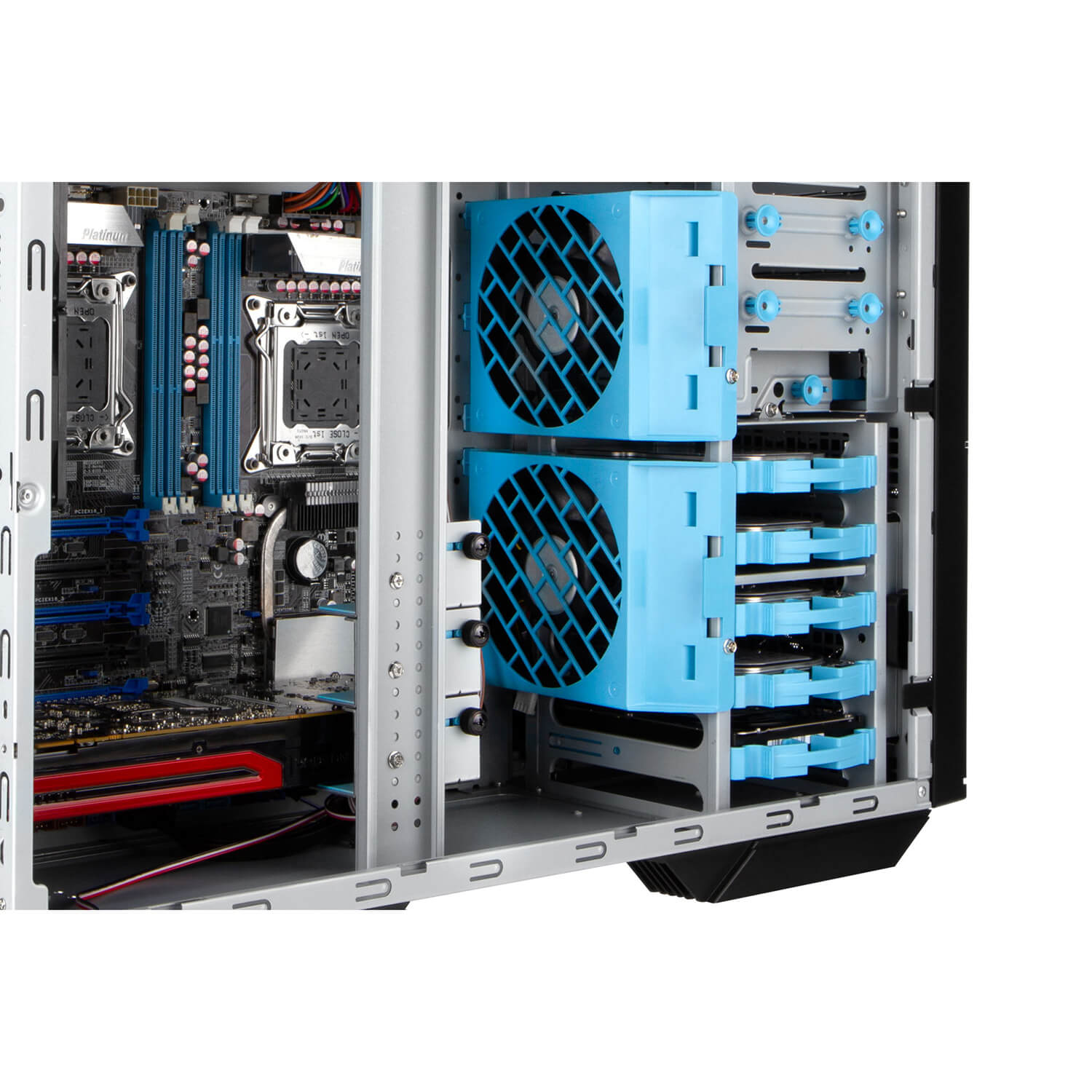

| Cooling Fans | Front: 120 x 25mm PWM fan x 1 (optional) Middle: 120 x 25mm PWM fans x 2 (optional) Rear: 120 x 25mm PWM fan x 1 (pre-installed) or optional 80 x 38mm PWM fans x 2 |
| Expansion Slot | Full-height PCIe slots x 7 |
| Material | SECC, Thickness: 0.8mm |
| Maximum Capacity | GPU length: 350mm CPU heatsink height: 145mm PS2 power length: 250mm (with cable management area) |
| Rail Kit | Supports 23″ ball-bearing slide rail |
| Dimensions (DxWxH) | 560.2 x 200 x 430.1mm (22.1″ x 7.9″ x 16.9″) |
| Package Dimensions | 720 x 592 x 340mm |
| Weight | Net: 10.67kg Gross: 14.21kg |
| Cubic Feet | 5.12 |
| Container Information | Single packing with pallets: 20′: 110pcs 40′: 240pcs 40′ HQ: 288pcs |
