Description

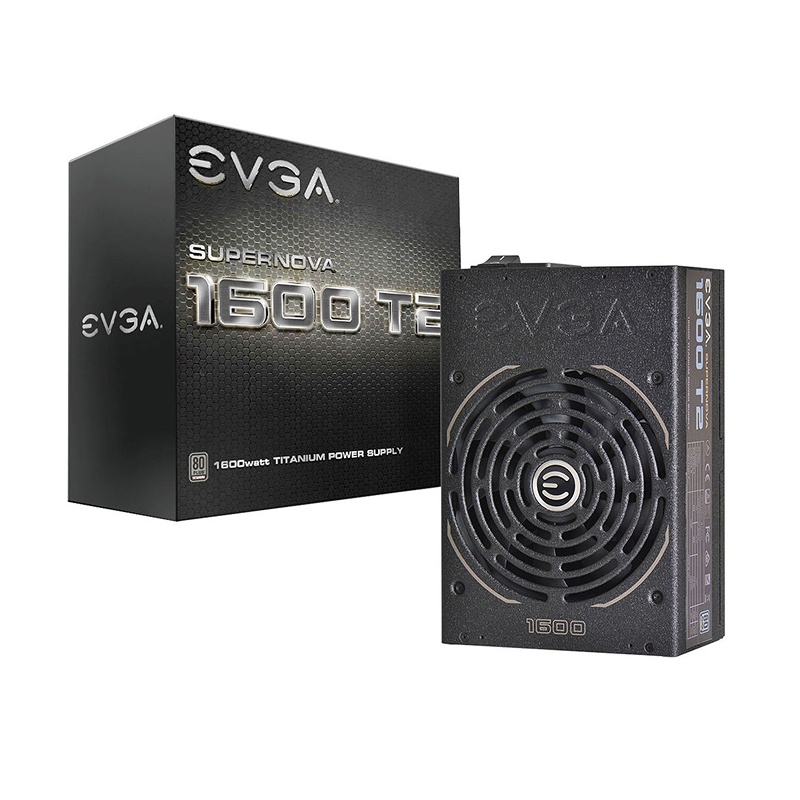

EVGA SuperNOVA 1600 T2 Power Supply
The EVGA SuperNOVA 1600 T2 power supply raises the bar with 1600W of continuous power delivery and 94% (115VAC) / 96% (220 ~ 240VAC) efficiency. A fully modular design reduces case clutter and 100% Japanese Capacitors ensures that only the absolute best components are used. What does that mean? The best stability, reliability, overclockability and unparalleled control. The EVGA SuperNOVA 1600 T2 is the ultimate tool to eliminate all system bottlenecks and achieve unrivaled performance.
- Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
- Double Ball Bearing fan for exceptional reliability and quiet operation
- Highest quality Japanese brand capacitors ensure long-term reliability
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
- Fully Modular to reduce clutter and improve airflow
- ECO Intelligent Thermal Control Fan system (Zero Fan Noise < 45°C)
- NVIDIA SLI & AMD Crossfire Ready
- 80 PLUS Titanium certified, with 94% (115VAC) / 96% (220 ~ 240VAC) efficiency or higher under typical loads
SPECIFICATIONS
| Cable Lengths | |
|---|---|
| ATX CABLE | 1 x 23.6″ (600mm) (m) |
| EPS CABLE | 2 x 29.5″ (750mm) (m) |
| PCIE CABLE | 5 x 29.5″ (750mm), 35.4″ (900mm) (m) 4 x 29.5″ (750mm) (m) |
| SATA CABLE | 4 x 21.6″ (550mm), 25.6″ (650mm), 29.5″ (750mm) (m), 2.7″ (850mm) (m) |
| FOUR-PIN PERIPHERAL CABLE | 2 x 21.6″ (550mm), 25.6″ (650mm), 29.5″ (750mm) (m) |
| FLOPPY ADAPTER | 2 x 3.9″ (100mm) |
| AC POWER | 1 x 6 feet (1800mm) (m) |
| MODULAR CABLE TYPE | Full |
| Connector Quantity | |
|---|---|
| 24-PIN ATX | 1 |
| EPS (CPU) | 2 x 8-pin (4+4) |
| PCIE | 9 x 8-pin (6+2), 5 x 6-pin |
| SATA | 16 |
| FOUR-PIN PERIPHERAL | 6 |
| FLOPPY | 2 |
| Power Specs | |||||
|---|---|---|---|---|---|
| AC INPUT | 115 ~ 240VAC, 17 – 10A, 50 – 60Hz | ||||
| RAIL | +3.3V | +5V | +12V | +5Vsb | -12V |
| MAX. OUTPUT | 24A | 24A | 133.3A | 3A | 0.5A |
| 133.3A | |||||
| 120W | 1599.6W | 15W | 6W | ||
| TOTAL | 1600W @ +50C | ||||
| Additional Details | |
|---|---|
| OPERATING TEMPERATURE | 32 – 122°F (0 – 50°C) |
| JAPANESE CAPACITORS | 100% |
| ECO MODE | Yes |
| MTBF | 100,000 Hours |
| NET WEIGHT | 8 lbs |
| DIMENSIONS (H X W X L) | 3.3 x 5.9 x 7.8 inches (85 x 150 x 200mm) |
| APPROVALS | TUV, CB, CE, FCC, RCM, cTUVus, BSMI, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
| FAN SIZE / BEARING | 140mm Double Ball Bearing |
