Description
Effortless High Speed Networking

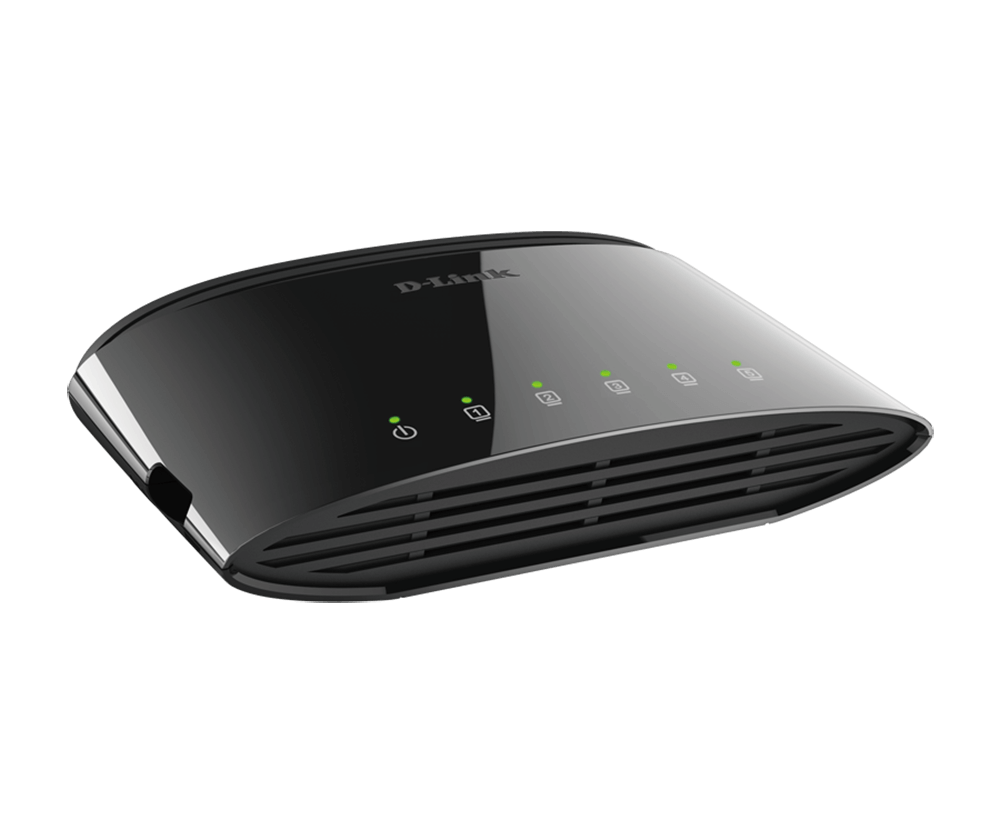

The D-Link DGS-1005G 5-Port Gigabit Switch creates a blazing fast network for your office, as its Gigabit Ethernet ports provide high-speed wired connections for up to five PCs or other devices. The DGS-1005G also features QoS, which prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic.
Think Green
The DGS-1005G Gigabit Desktop Switch makes use of D-Link’s Green Technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. Minimized use of harmful substances (RoHS compliant), and recyclable packaging makes this switch truly environmentally friendly.
Conserves Energy
The DGS-1005G helps conserve energy automatically, saving substantial amounts of power by cutting power usage for unused ports or ports connected to computers that are idle.
Gigabit Connection for Home and Media Center
Gigabit Desktop Switches offer an economical way for homes and media centers to benefit from the increased bandwidth of Gigabit Ethernet. The DGS-1005G provides 5 Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.
Specifications
| Interfaces | 5 x 1000Base-T |
| Auto MDI/MDIX | Yes |
| Switching Capacity | 10 Gbps |
| Max. Packet Forwarding Rate | 7.44 Mpps |
| Store & Forwarding | Yes |
| Dimensions | 111 x 75 x 30 mm |
| Weight | 0.09 kg |
| Operating Temperature | 0 ~ 40 °C |
| Storage Temperature | – 10 ~ 70 °C |
| Operating Humidity | 0% ~ 95% RH |
| Storage Humidity | 0% ~ 95% RH |
| Operating Altitude | 2000m |
| Maximum Power Consumption | 3.90 W |
| Standby Power Consumption | 0.6 W |
| Maximum Heat Dissipation | 13.299 BTU/h |
| MTBF | 1,151,786 hours |
| Power Input | AC：100 ~ 240 V |
| Flash Memory Size | 64KBytes |
| Packet Buffer Size | 128KBytes |
| Power Saving By Link Status | Fanless |
| Comply with RoHS 6 | Yes |
| Energy Efficiency Ethernet (EEE) | Yes |
| Power Saving By Link Status | Yes |
| Power Saving By Cable Length | Yes |
| MAC Address Table Size | 4,000 |
| Control | 802.3x Flow |
| Head-of-line (HOL) Blocking Prevention | Yes |
| Jumbo Frame | 9,720 Bytes |
| Air Discharge | 8kV |
| Surge/Lightning Protection (AC Power Inet) | 1kV |
| Surge/Lightning Protection (All Ethernet Ports) | 1 Kv |
