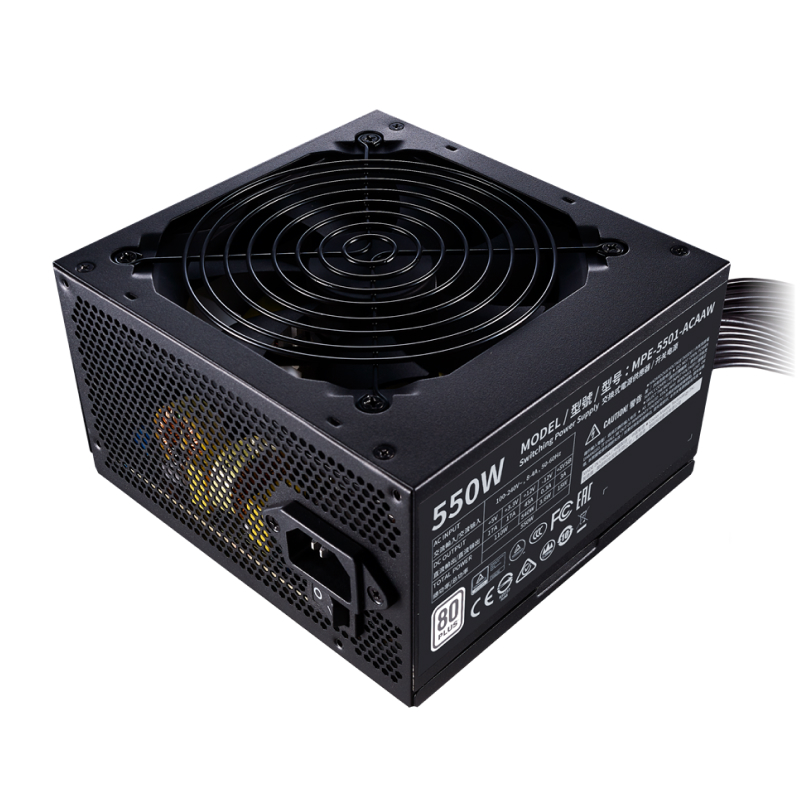

Cooler Master 550W 80 Plus White MPE-5501-ACAAW-US NWE +12V 120mm AC 100-240V Input Power Supply

$82.95

  • Single +12V Rail: The power source is monitored on a single circuit, ensuring consistent output through all connected cables.
  • DC-to-DC Technology: The DC-to-DC + LLC circuit design offers reliable, stable output to all connected components.
  • 120mm HDB Fan: Employs a responsive fanspeed control, limiting noise to specific cooling requirements during use.

Regular Stock. Please contact our sales at 780-481-8855 to get current availability. Holds limited to 24 hours maximum.

SKU: PS1CM1PS1055 Categories: ,

Description



MWE White 550



For a simple, reliable, and affordable way to power your system safely and efficiently, choose the MWE White. With a typical efficiency of 80%, a single +12V rail, DC-to-DC circuit design, active PFC, and a thermally sensitive 120mm HDB fan, this PSU offers stable and reliable core computing at any level cost. This model will handle all your basic system power needs with no hassles or complicated special features. Just plug in your components and get to work.



Specs



Model MPE-5501-ACAAW
ATX Version ATX 12V V2.52
PFC Active PFC
Input Voltage 100-240V
Input Current 8-4A
Input Frequency 50-60Hz
Dimensions (L x W x H) 140 x 150 x 86 mm
Fan Size 120mm
Fan Bearing HDB
Fan Speed 1500 RPM
Noise Level @ 20% 10.43 dBA
Noise Level @ 50% 16.8 dBA
Noise Level @ 100% 31.5 dBA
Efficiency 80% Typically Load
80 PLUS Rating 80 PLUS Standard
ErP 2014 Lot 3 Yes
Operating Temperature 40°C
Power Good Signal 100 – 500 ms
Hold Up Time >14ms at 100% Full Load@230Vac
MTBF >100,000 Hours
Protections OVP, OPP, OTP, SCP, UVP
Regulatory CB, TUV, cTUVus, CE, FCC, CCC, EAC, RCM, BSMI, KC
ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
SATA Connectors 6
Peripheral 4 Pin Connectors 3
PCI-e 6+2 Pin Connectors 2
80 Plus Standard
Modular Non Modular
Wattage 500 to 750W
Series MWE White Series
