Description

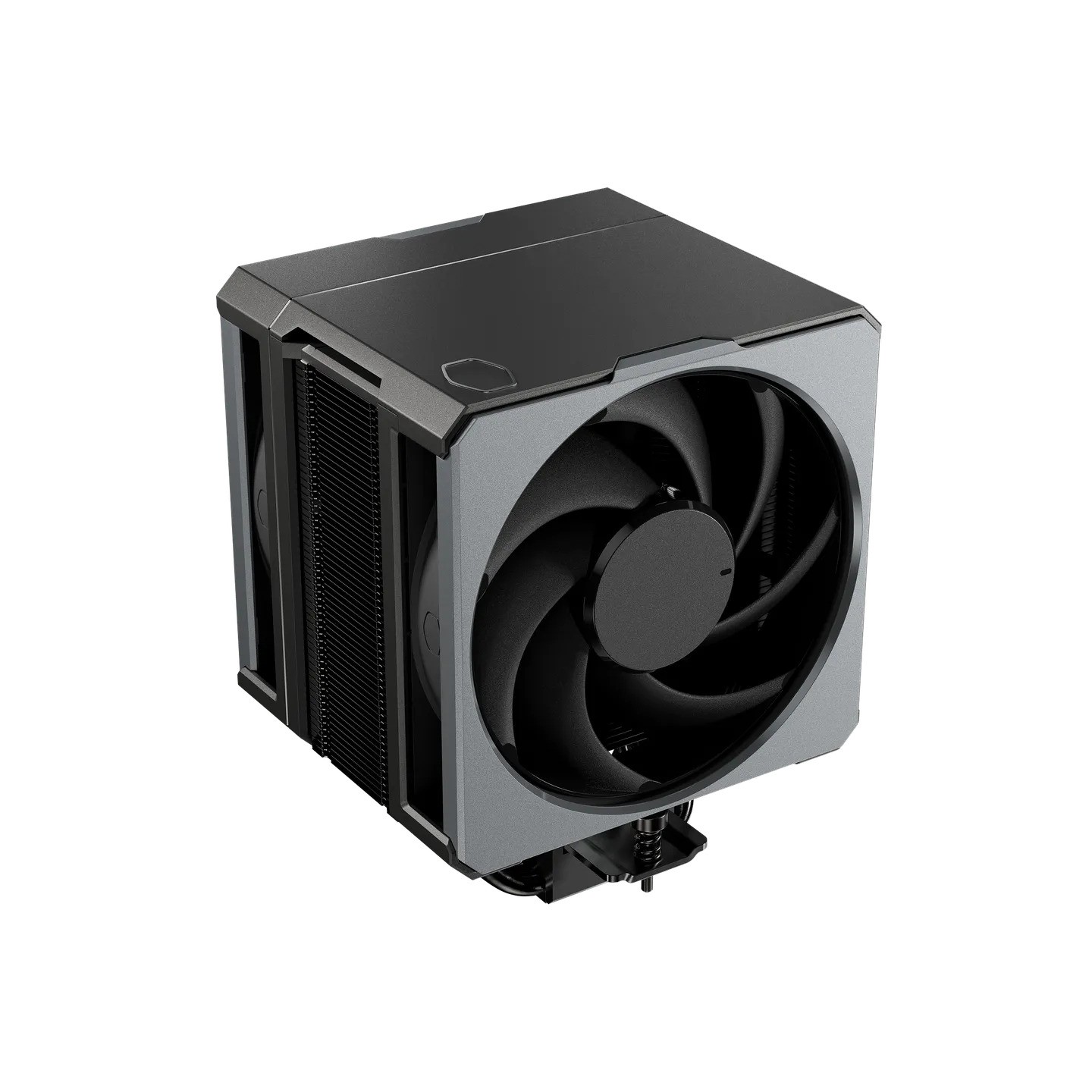

Hyper 612 APEX
The Cooler Master Hyper 612 Apex is a high-performance air cooler engineered for builders who demand raw cooling power without compromise. It features six patented Superconductive Composite copper heat pipes and dual Mobius 120P PWM fans for efficient heat dissipation and quiet operation, even under heavy loads. With support for AMD AM5/AM4 and Intel LGA 1851/1700 sockets, the 612 Apex delivers broad compatibility across modern platforms. Its 159mm height fits most mid-tower cases, while the clean top cover make it a perfect match for performance-focused, visually refined builds. No gimmicks—just pure cooling muscle.
Superconductive Composite Heat Pipes
Six advanced copper heat pipes deliver fast, even heat transfer from modern high-core CPUs.
Dual Mobius 120P PWM Fans
Pressure-optimized fans with Loop Dynamic Bearings for silent, high-performance airflow under load.
159mm Tower Height
Compact enough to fit most mid-tower cases without sacrificing performance or clearance.
Sleek, Minimalist Top Cover
Available in Black to match your build, with premium finish and clean aesthetics.
Wide Platform Compatibility
Supports AMD AM5/AM4 and Intel LGA 1851/1700 out of the box for next-gen readiness.
Easy Installation
Tool-free brackets and streamlined mounting make setup fast, clean, and frustration-free.
5-Year Warranty
Built to last and backed by Cooler Master’s industry-leading support and reliability guarantee.
Specifications
| Product Number | MAP-T6PN-225PK-R1, |
| Color | Black |
| CPU Socket | Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket |
| CPU Socket | AMD® AM5 / AM4 socket |
| Dimensions (L x W x H) |
127 x 114 x 159 mm / 5.0 x 4.4 x 6.2 inch
|
| Fan Size | 120 |
| Fan Profiles | Non-LED |
| Fan Quantity | 2 PCS |
| Fan Speed | 0-2400 RPM ± 10% |
| Fan Airflow | 75.2 CFM (Max) |
| Fan Pressure | 3.63 mmH₂O (Max) |
| Fan MTTF | >200,000 Hours |
| Fan Noise Level | 30 dBA (Max) |
| Fan Bearing | LDB |
| Fan Power Connector | 4-Pin (PWM) |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.18A |
| Fan Safety Current | 0.35A |
| Fan Power Consumption | 2.16W |
| Dimensions (L x W x H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1.0 inch |
| Warranty | 5 years |
| Cooler Type | Air Cooler |
| Series | Hyper |
| Fan Size | 120 |
