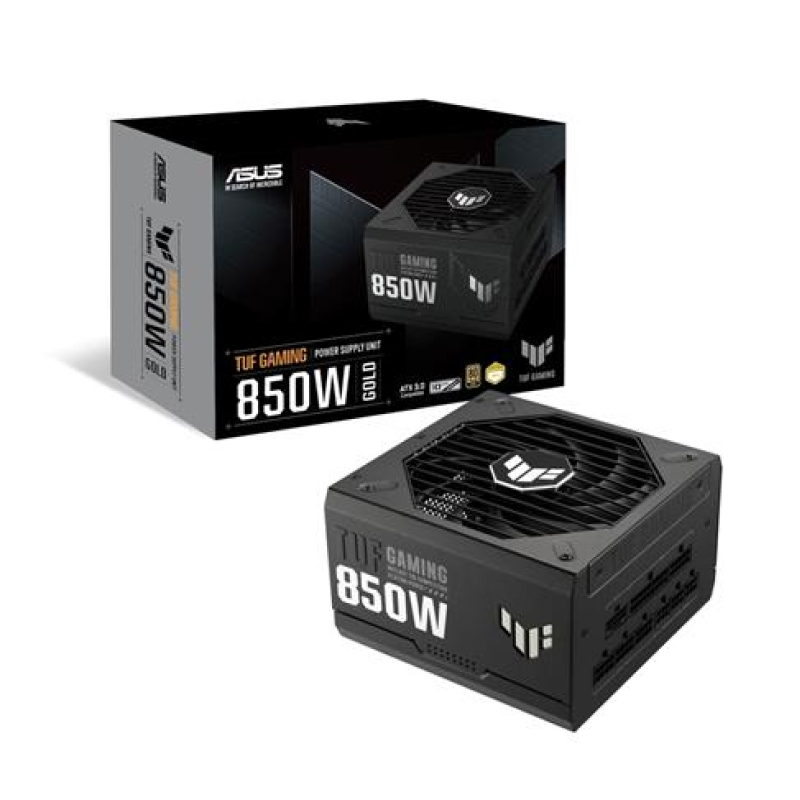

ASUS TUF-GAMING-850G 850W ATX12V 80+Gold Fully Modular Retail

$179.95

  • Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
  • Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
  • protective PCB coating protects against moisture, dust, and extreme temperatures.
  • An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.
  • Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
  • Fully modular etched cables keep your rig neat and tidy.

Regular Stock. Please contact our sales at 780-481-8855 to get current availability. Holds limited to 24 hours maximum.

SKU: PS1AS1PS1003 Categories: , ,

Description

BUILT FOR THE LONG HAUL

The ASUS TUF Gaming 850W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.​

DURABILITY

TUF Components

TUF COMPONENTS

Top marks

With military-grade components, including capacitors rated for 105 °C operation and up to 170,000 hours’ lifespan, the ASUS TUF Gaming 850W Gold empowers you to build in confidence.​

Dual Ball Fan Bearings

DUAL BALL FAN BEARINGS

2x longer lifespan

Exemplary cooling is provided by a 135 mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

Protective PCB Coating

PROTECTIVE PCB COATING

All wrapped up

A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.



ENGINEERING

80 Plus Gold Certification

80 PLUS GOLD CERTIFICATION

Heart of gold

The TUF Gaming 850W Gold features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.​

*For illustration only.

ATX 3.0 Compatible

ATX 3.0 COMPATIBLE

Step into the future

The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware – and TUF Gaming 850W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe® cable ripe for piping up to 600 W of power to PCIe® Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.​

*illustration for reference only

Difference between Axial-tech fan airflow and standard fan airflow.

AXIAL-TECH FAN DESIGN

Better, faster, stronger

Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, ASUS has scaled that design to 135 mm, so it keeps things cool at low RPMs while producing less noise.



EXPERIENCE

Fully Modular Etched Cables

FULLY MODULAR ETCHED CABLES

Supple ply

The included fully-modular cable set is etched to provide a similar aesthetic to sleeved cables, but a touch more flexibility for tight spaces.





Specs

Model TUF Gaming 850W Gold
Intel Form Factor ATX12V
ATX 3.0 Yes
Dimensions 150 x 150 x 86 mm
Efficiency 80Plus Gold
Protection Features OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials ROHS
AC Input Range 100-240Vac
DC Output Voltage +3.3V +5V +12V -12V +5Vsb
Maximum Load 25A25A70.8A 0.8A 3A
Combined Load 130W 130W 850W 9.6W 15W
Total Output 850W
Cable Connectors





MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 4
Package Contents





Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable Tie x 3
User Manual x 1
Weight 2.38kg (single PSU)
0dB Fan Button No
