Description

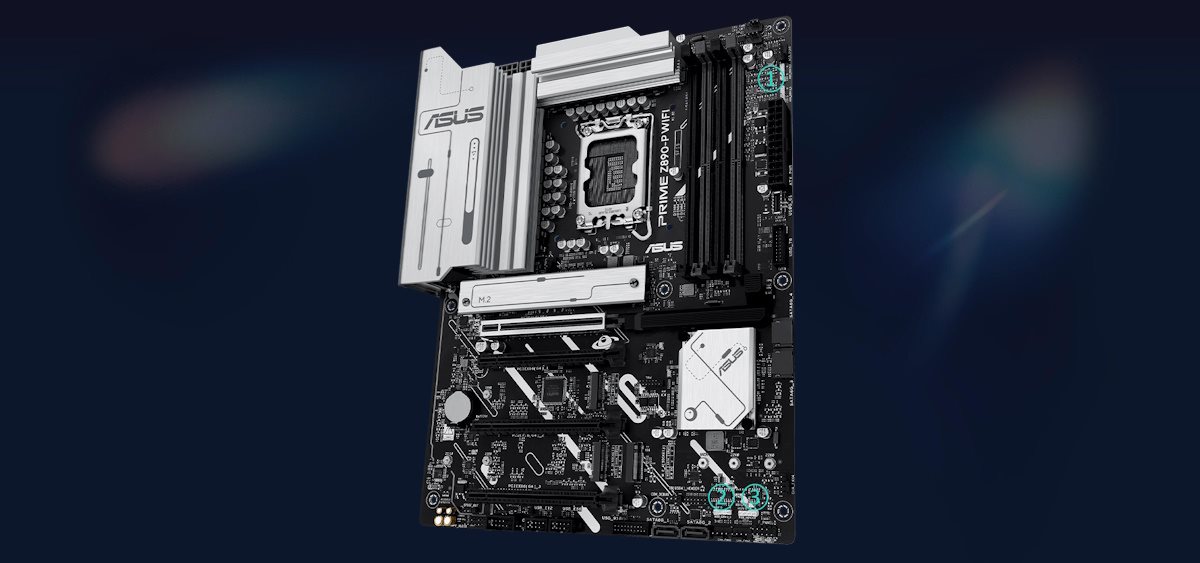

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890-P Wi-Fi motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

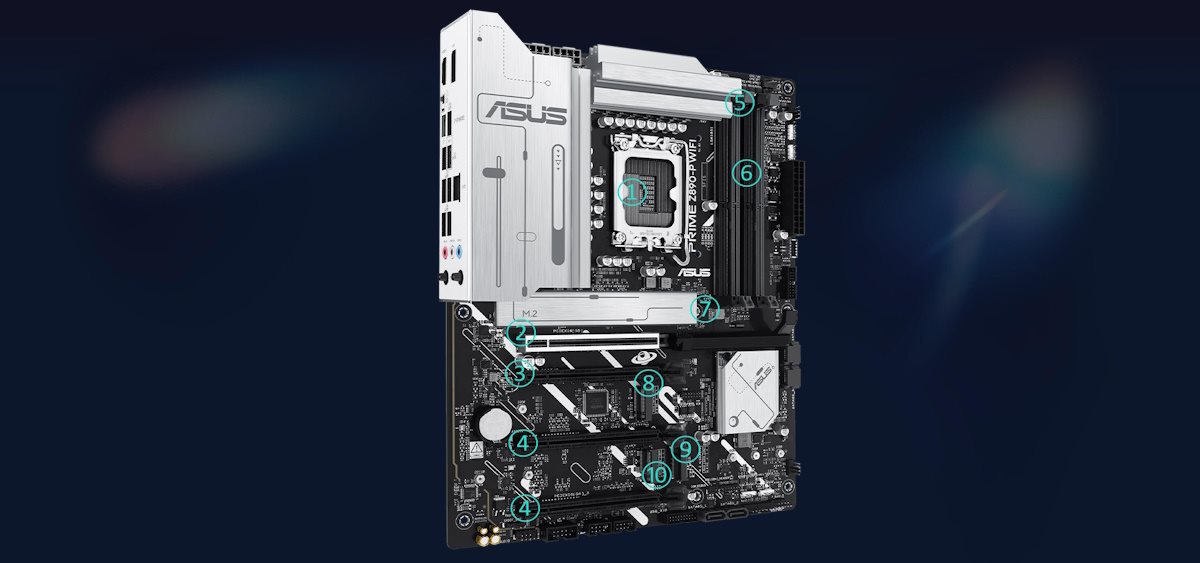

| ① Support Intel® Core™ Ultra Processors (Series 2), LGA1851 ② 1 x PCIe 5.0 x16 (supports x16 mode) SafeSlot with Q-Release ③ 1 x PCIe 4.0 x16 (supports x1 mode) ④ 2 x PCIe 4.0 x16 (supports x4 mode) ⑤ 14(80A) + 1(80A) + 2(80A) + 1(80A) power stages |
⑥ 4 x DIMM slots DDR5 support Dual channel AEMP III ⑦ M.2_1 2280/22110 (PCIe 5.0 x4 mode) ⑧ M.2_2 2280 (PCIe 4.0 x4 mode) ⑨ M.2_4 2242/2260/2280 (PCIe 4.0 x4 & SATA modes) ⑩ M.2_3 2280/22110 (PCIe 4.0 x4 mode) |

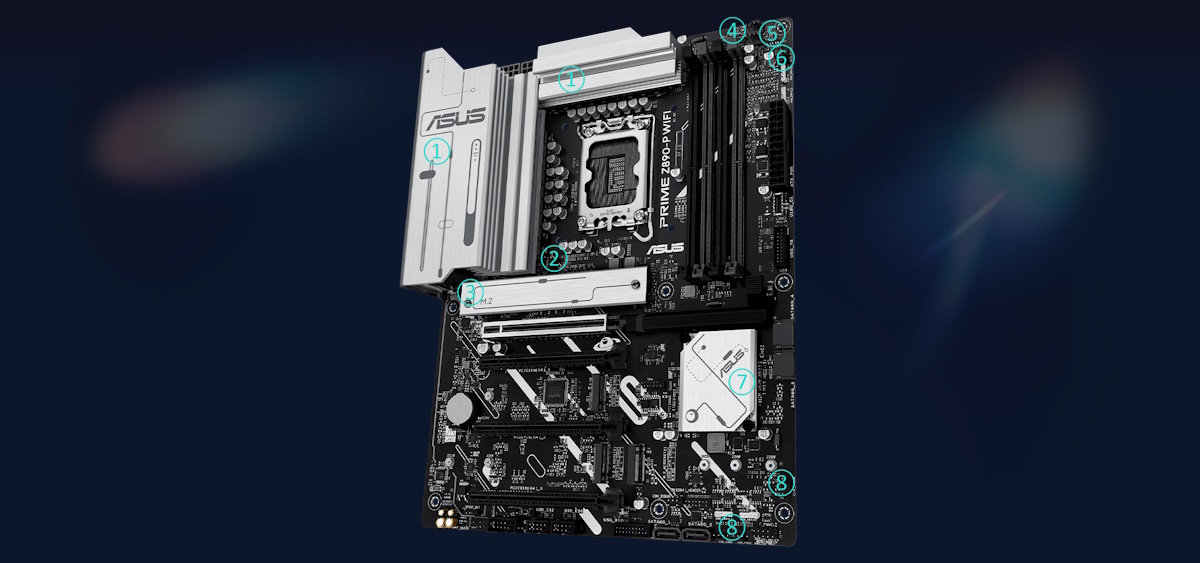

| ① VRM heatsinks ② Chassis fan header ③ M.2 heatsink ④ CPU fan header |
⑤ CPU OPT fan header ⑥ AIO pump fan header ⑦ Chipset heatsink ⑧ 3 x Chassis fan headers |

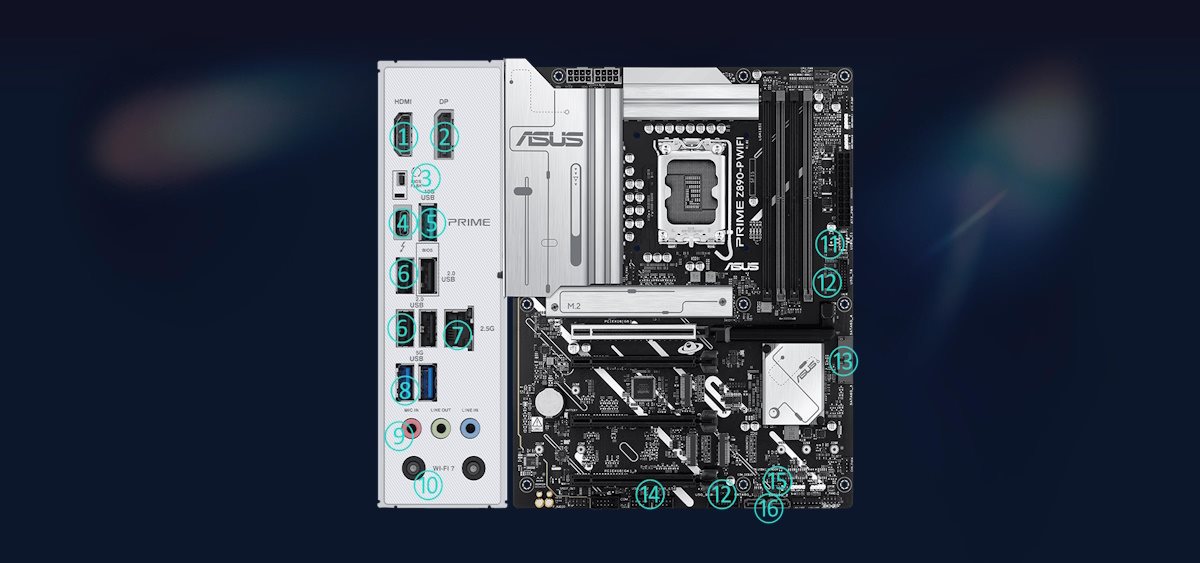

| ① 1 x HDMI™ port ② 1 x DisplayPort ③ 1 x BIOS FlashBack™ button ④ 1 x Thunderbolt™ 4 USB Type-C® port ⑤ 1 x USB 10 Gbps Type-A ⑥ 4 x USB 2.0 Type-A ⑦ 2.5 Gb Ethernet ⑧ 2 x USB 5 Gbps Type-A |
⑤ CPU OPT fan header ⑨ 3 x Audio jacks ⑩ Wi-Fi 7 ⑪ 1 x USB 10 Gbps connector (supports USB Type-C®) ⑫ 2 x USB 5 Gbps headers (support 4 additional USB 5 Gbps ports) ⑬ 2 x SATA 6 Gb/s ports ⑭ 2 x USB 2.0 headers (support 4 additional USB 2.0 ports) ⑮ 1 x Thunderbolt™ (USB4®) header ⑯ 2 x SATA 6 Gb/s ports |
| ① 2 x Addressable Gen 2 headers ② 1 x Addressable Gen 2 header |
③ 1 x Aura RGB header
|

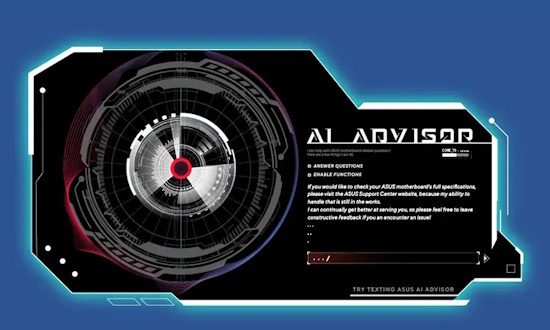

AI Advisor
ASUS AI Advisor is an ASUS technical expert that’s always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Cooling II, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.

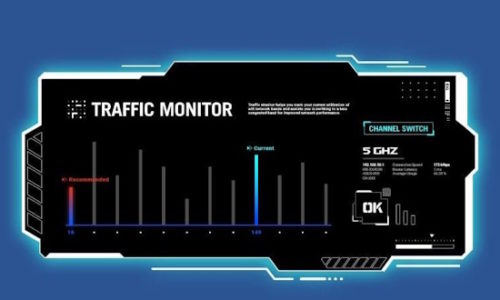

AI Networking II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity and unleash the full speed of Wi-Fi 7.

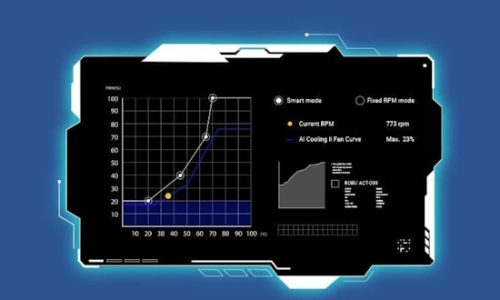

AI Cooling II
AI Cooling II balances the thermals and acoustics of any build with a single click. An exclusive ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.
Empowering connections

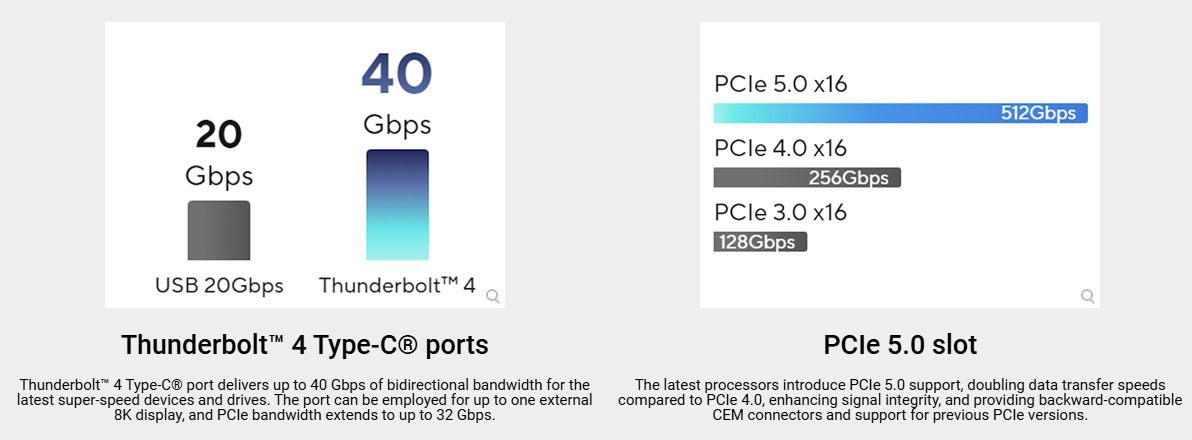

The PRIME Z890-P WIFI motherboard offers a versatile range of connectivity, including support for WiFi 7, the latest version of PCI Express, while an arsenal of USB ports includes Type-C connections, and Thunderbolt™ 4 which expands compatibility and bandwidth even further.
Product Specs
| CPU | Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel® Z890 Chipset |

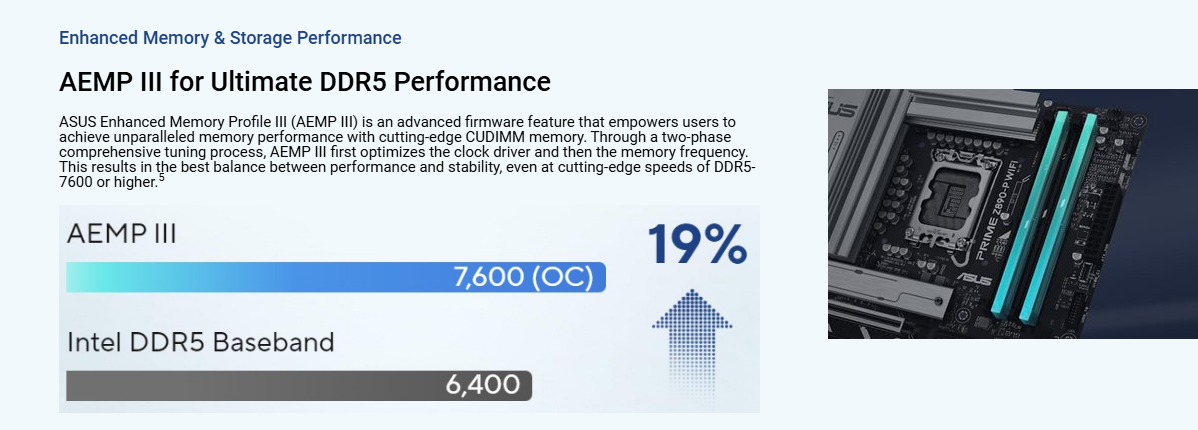

| Memory | 4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMPIII) |
| Graphics | 1 x DisplayPort 1 x HDMI™ port 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs |
| Expansion Slots | 1 x PCIe 5.0 x16 slot 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) |
| Storage | 4 x M.2 slots and 4 x SATA 6Gb/s ports M.2_1 slot: type 2280/22110 (PCIe 5.0 x4 mode) M.2_2 slot: type 2280 (PCIe 4.0 x4 mode) M.2_3 slot: type 2280/22110 (PCIe 4.0 x4 mode) M.2_4 slot: type 2242/2260/2280 (PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be) 2×2 Wi-Fi 7, supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate Bluetooth® v5.4 |
| USB | Rear USB (8 ports): 1 x Thunderbolt™ 4 port (USB Type-C®) 1 x USB 10Gbps port (Type-A) 2 x USB 5Gbps ports (Type-A) 4 x USB 2.0 ports (Type-A) Front USB (9 ports): 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers (4 additional ports) 2 x USB 2.0 headers (4 additional ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers |

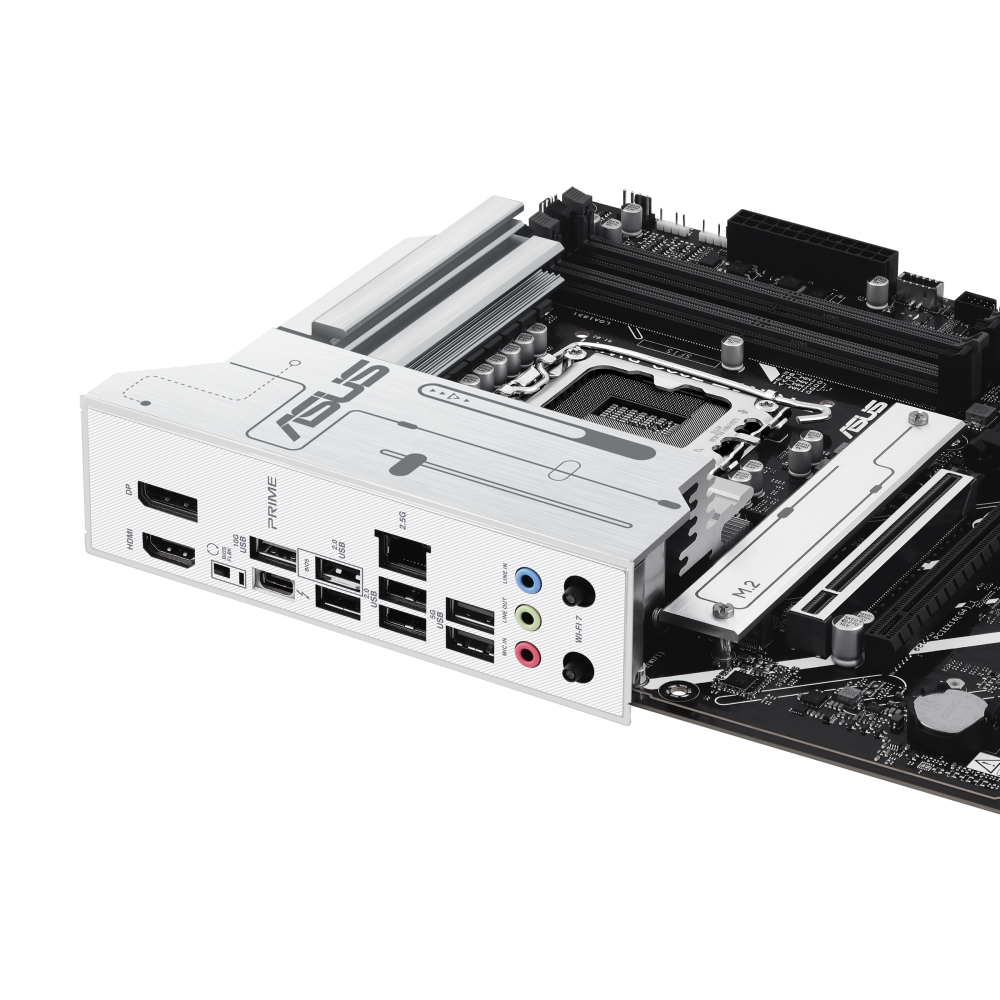

| Back Panel I/O | 1 x Thunderbolt™ 4 USB Type-C® port 1 x USB 10Gbps port (Type-A) 2 x USB 5Gbps ports (Type-A) 4 x USB 2.0 ports (Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button |
| Internal Connectors | Fan and Cooling: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power: 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage: 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 10Gbps connector (USB Type-C®) 2 x USB 5Gbps headers 2 x USB 2.0 headers Miscellaneous: 3 x Addressable Gen2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header 1 x S/PDIF Out header 1 x SPI TPM header 1 x Front Panel System header 1 x Thunderbolt™ (USB4®) header |

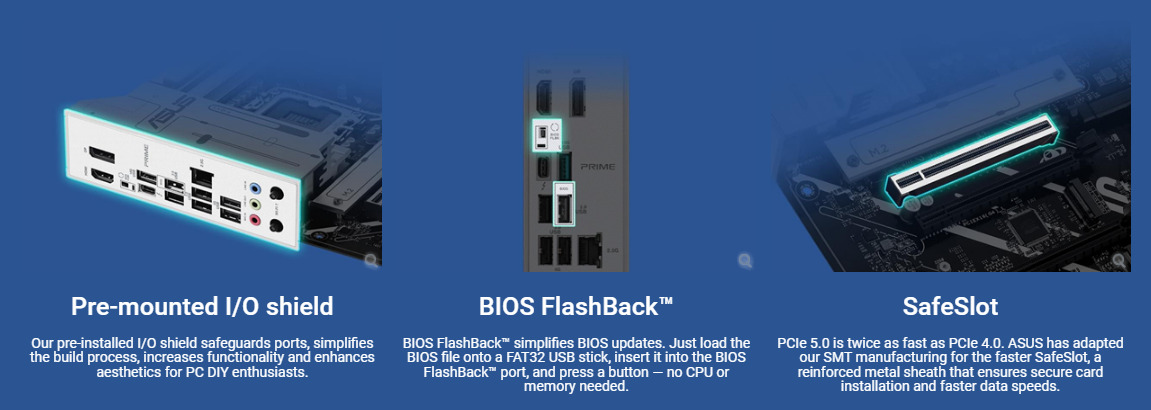

| Special Features | ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot ASUS Thermal Solution: M.2 heatsink, VRM heatsink design ASUS EZ DIY: BIOS FlashBack™ button, BIOS FlashBack™ LED, ProCool, Pre-mounted I/O shield Aura Sync: Aura RGB header, Addressable Gen2 headers |
| Software | ASUS Exclusive Software: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4 with AI Cooling II, Power Saving) ASUS AI Advisor, ASUS DriverHub, ASUS GlideX, ASUS CPU-Z, TurboV Core Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial) UEFI BIOS: ASUS EZ DIY (CrashFree BIOS 3, EZ Flash, UEFI BIOS EZ Mode, MyHotkey) NPU Boost (Intel K-series Processors only) |
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| Accessories | 2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 2 x Screw packages for M.2 SSD 1 x Quick start guide |
| Operating System | Windows 11 (22H2 & later) |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
