| General Information |
|
| Manufacturer: |
Acer, Inc |
| Manufacturer Part Number: |
UM.QB2AA.A02 |
| Brand Name: |
Acer |
| Product Series: |
CB |
| Product Model: |
CBA242Y A |
| Product Name: |

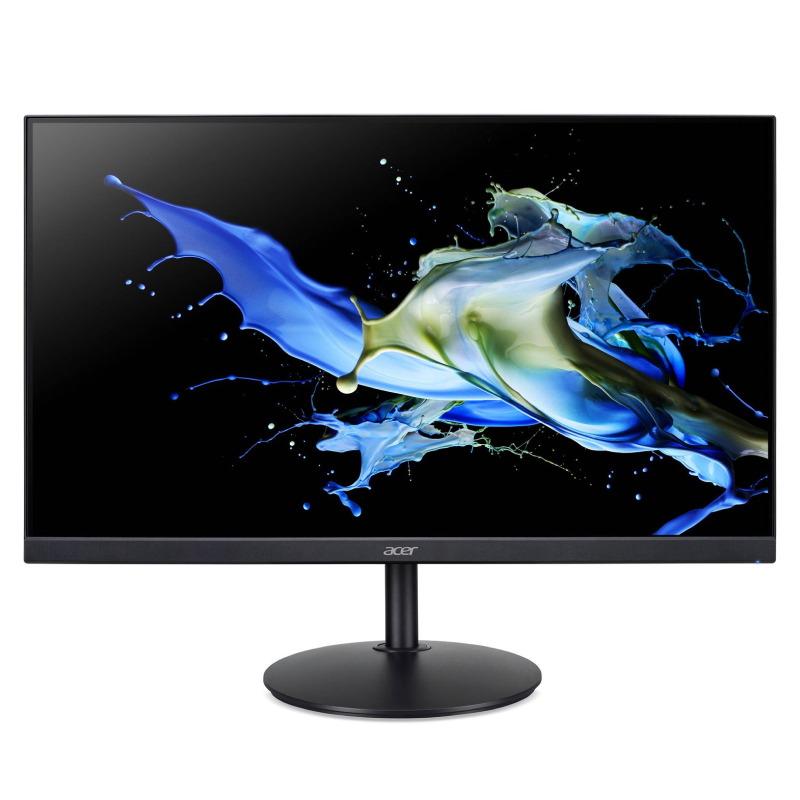

CBA242Y A Widescreen LCD Monitor |
| Product Type: |
LCD Monitor |
| Technical Information |
|
| Number of Screens: |
1 |
| Viewable Screen Size: |
23.8″ |
| Screen Mode: |
Full HD |
| Panel Technology: |
Vertical Alignment (VA) |
| Response Time: |
1 ms VRB |
| Aspect Ratio: |
16:9 |
| Pixel Pitch: |
10.63 mil (0.27 mm) |
| Horizontal Viewing Angle: |
178° |
| Vertical Viewing Angle: |
178° |
| Adjustable Display Pivot: |
Yes |
| Mount Type: |
Wall Mountable |
| Backlight Technology: |
LED |
| Maximum Adjustable Height: |
4.72″ (120 mm) |
| Tilt Angle: |
-5° to 20° |
| Swivel Angle: |
360° to 360° |
| Horizontal Frequency: |
30 kHz to 85 kHz |
| Vertical Frequency: |
56 Hz to 76 Hz |
| Video |
|
| Maximum Resolution: |
1920 x 1080 |
| Color Supported: |
16.7 Million Colors |
| Color Depth: |
8-bit |
| Dynamic Contrast Ratio: |
100,000,000:1 |
| Brightness: |
250 cd/m² |
| Tearing Prevention Technology: |
FreeSync |
| Color Gamut: |
72% NTSC |
| Audio |
|
| Speakers: |
Yes |
| Interfaces/Ports |
|
| HDMI: |
Yes |
| HDMI Version: |
1.4 |
| VGA: |
Yes |
| Headphone: |
Yes |
| Power Description |
|
| Operating Power Consumption (Energy Star): |
22 W |
| Standby Power Consumption (Energy Star): |
300 mW |
| Off-Mode Power Consumption (Energy Star): |
300 mW |
| Physical Characteristics |
|
| VESA Mount Compatible: |
Yes |
| VESA Mount Standard: |
100 x 100 |
| Color: |
Black |
| Height: |
12.76″ (324.10 mm) |
| Width: |
21.27″ (540.20 mm) |
| Depth: |
2.57″ (65.30 mm) |
| Height with Stand: |
19.59″ (497.70 mm) |
| Width with Stand: |
21.27″ (540.20 mm) |
| Depth with Stand: |
9.20″ (233.60 mm) |
| Weight (Approximate): |
3.38 kg |
| Miscellaneous |
|
| Package Contents: |
- 1 x CBA242Y A Widescreen LCD Monitor
- 1 x HDMI Cable
- 1 x Power Cord(US)
|
| Environmentally Friendly: |
Yes |
| Environmental Certification: |
MPR II |
