Description

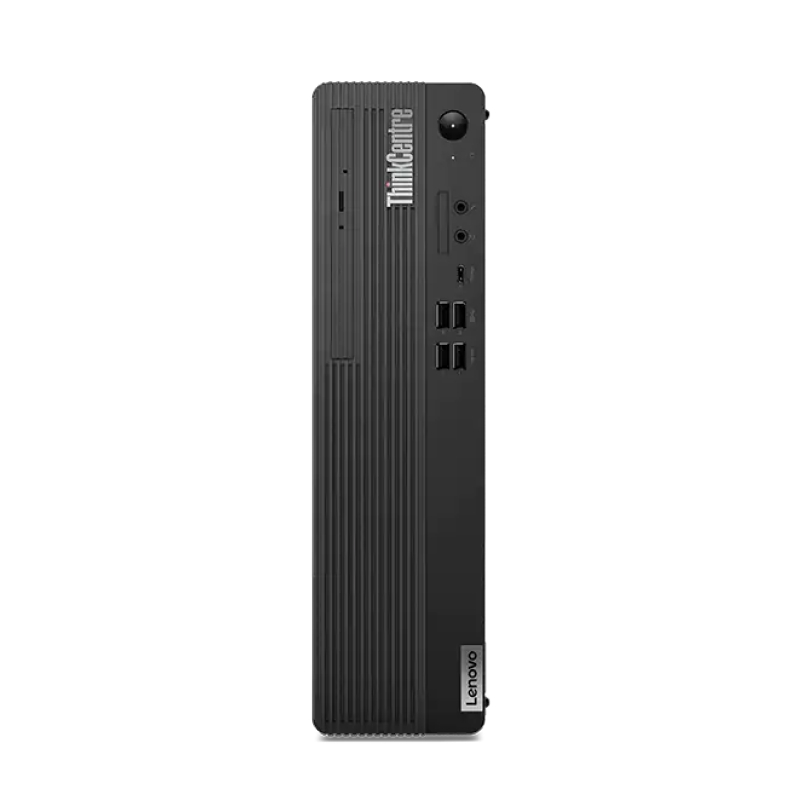

Ports & Slots
- 1Power button
- 8Audio-out
- 2Optional 3-in-1 card reader
- 92 x DisplayPort
- 3Mic
- 10HDMI
- 4Headphone / mic combo
- 11Serial
- 5USB-C 3.2 Gen 1
- 12RJ45
- 62 x USB 3.2 Gen 1
- 134 x USB 2.0
- 72 x USB 3.2 Gen 2
- 14Power-in
Features
Power to work
The ThinkCentre M75s Gen 2 desktop will breeze through your toughest tasks with up to an AMD Ryzen™ 7 PRO processor and up to 128GB DDR4 memory. Multitask, create content, and crunch data easily, improving productivity and the bottom line.
Steadfast security
The Thinkcentre M75s Gen 2 small form factor desktop’s discrete Trusted Platform Module (dTPM) chip encrypts critical information and enables hardware authentication. BIOS-based Smart USB Protection prevents unauthorized access via peripheral. And AMD GuardMI technology enables power-on-to-power-off data protection with a co-processor inside the AMD Ryzen™ PRO CPU.
Convenience guaranteed
The ThinkCentre M75s Gen 2 SFF offers plenty of convenient features to help users be more comfortable and productive. A rapid-charging USB port enables fast data transmission and device charging, even when the PC is in sleep mode. Turn on the desktop with a simple key stroke. Connect multiple peripherals to a variety of ports, for seamless multitasking. Easily manage updates, diagnostics, and security from a remote location.
Energy-efficient and reliable
The M75s Gen 2 has a minimal footprint on the environment as well as on your desk. It meets global sustainability standards for Energy Star® 8.0, EPEAT® Silver, and TCO 8.0. And it’s designed and rigorously tested for durability and reliability.
Specs
| Brand Name: | Lenovo |
| Product Line: | ThinkCentre |
| Product Series: | M75s Gen 2 |
| Product Model: | 11R8000WUS |

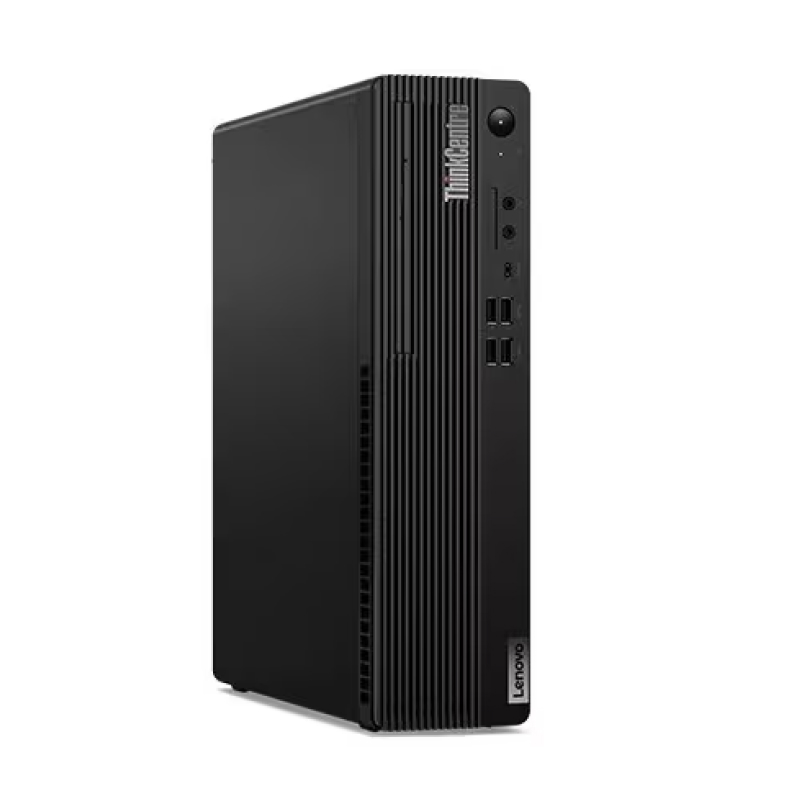

| Product Name: | ThinkCentre M75s Gen 2 11R8000WUS Desktop Computer |
| Product Type: | Desktop Computer |
| Processor | |
| Processor Manufacturer: | AMD |
| Processor Type: | Ryzen 7 PRO |
| Processor Model: | 5750G |
| Processor Core: | Octa-core (8 Core) |
| Processor Speed: | 3.80 GHz |
| Maximum Turbo Speed: | 4.60 GHz |
| Memory | |
| Standard Memory: | 16 GB |
| Maximum Memory Supported: | 128 GB |
| Memory Technology: | DDR4 SDRAM |
| Number of Total Memory Slots: | 4 |
| Storage | |
| Total Solid State Drive Capacity: | 512 GB |
| Solid State Drive Interface: | PCI Express NVMe |
| Solid State Drive Configuration: | 1 x 512GB |
| SSD Form Factor: | M.2 |
| Optical Drive Type: | DVD-Writer |
| Display & Graphics | |
| Graphics Controller Manufacturer: | AMD |
| Graphics Controller Model: | Radeon Graphics |
| Graphics Memory Technology: | DDR4 SDRAM |
| Graphics Memory Accessibility: | Shared |
| Network & Communication | |
| Ethernet Technology: | Ethernet |
| Input Devices | |
| Keyboard Localization: | English (US) |
| Interfaces/Ports | |
| HDMI: | Yes |
| Total Number of USB Ports: | 9 |
| Number of USB 2.0 Ports (Rear): | 4 |
| Number of USB 3.1 Gen 1 Ports: | 2 |
| Number of USB 3.1 Gen 2 Ports: | 2 |
| USB Type-C: | Yes |
| USB Type-C Detail: | 1 USB Type C |
| Number of DisplayPort Outputs: | 2 |
| DisplayPort: | Yes |
| Operating System | |
| Operating System Platform: | Windows |
| Operating System: | Windows 10 Pro |
| Operating System Language: | English |
| Operating System Architecture: | 64-bit |
| Power Description | |
| Input Voltage: | 120 V AC, 230 V AC |
| Maximum Power Supply Wattage: | 260 W |
| Physical Characteristics | |
| Product Color: | Raven Black |
| Form Factor: | Small Form Factor |
| Height: | 13.37″ (339.50 mm) |
| Width: | 3.64″ (92.50 mm) |
| Depth: | 11.72″ (297.70 mm) |
| Weight (Approximate): | 5.30 kg |
| Miscellaneous | |
| Package Contents: |
|
